構成

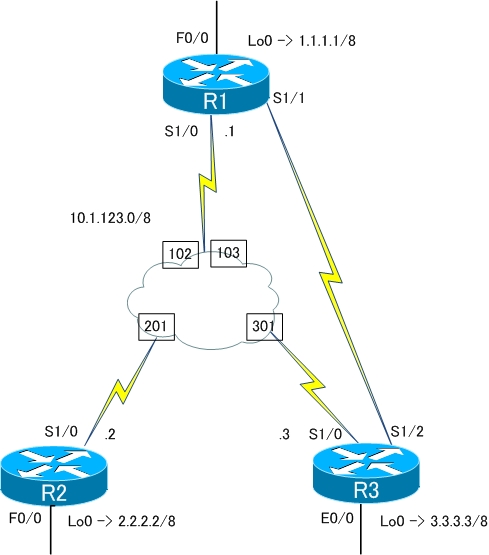

構成図
netファイル
####################################
#
# Define global router parameters
#
####################################
autostart = False
[localhost:7200]
workingdir = C:\[[My Virtual Labs]]\working
[[3640]]
image = C:\My Virtual Labs\images\c3640-js-mz.122-8.T.extracted.bin
idlepc = 0x603c4c50
ram = 128
disk0 = 0
disk1 = 0
#mmap = true
mmap = false
#ghostios = false
ghostios = true
#sparsemem = false
sparsemem = true
###########################
#
# Define router instances
#
###########################
[[Router TermServ]]
model = 3640
console = 2000
autostart = False
slot0 = NM-4E
slot1 = NM-4T
S1/1 = FRSW 21
E0/0 = SW F0/11
E0/3 = NIO_gen_eth:\Device\NPF_{0A0621CF-3680-4D5E-B371-681A62C2285E}
cnfg = C:\My Virtual Labs\★CCNP\BSCI\Frame-Relay\initial.configs\TermServ.txt
[[Router R1]]
model = 3640
console = 2001
autostart = False
slot0 = NM-1FE-TX
slot1 = NM-4T
F0/0 = SW F0/1
S1/0 = FRSW 1
cnfg = C:\My Virtual Labs\★CCNP\BSCI\Frame-Relay\initial.configs\default.config.txt
[[Router R2]]
model = 3640
console = 2002
autostart = False
slot0 = NM-1FE-TX
slot1 = NM-4T
F0/0 = SW F0/2
S1/0 = FRSW 2
cnfg = C:\My Virtual Labs\★CCNP\BSCI\Frame-Relay\initial.configs\default.config.txt
[[Router R3]]
model = 3640
console = 2003
autostart = False
slot0 = NM-4E
slot1 = NM-4T
S1/0 = FRSW 3
S1/1 = FRSW 13
S1/2 = R1 S1/1
S1/3 = R2 S1/1
E0/0 = SW F0/3
cnfg = C:\My Virtual Labs\★CCNP\BSCI\Frame-Relay\initial.configs\default.config.txt
[[Router R4]]
model = 3640
console = 2004
autostart = False
slot0 = NM-4E
slot1 = NM-4T
E0/0 = SW F0/4
S1/0 = FRSW 4
S1/1 = R5 S1/1
cnfg = C:\My Virtual Labs\★CCNP\BSCI\Frame-Relay\initial.configs\default.config.txt
[[Router R5]]
model = 3640
console = 2005
autostart = False
slot0 = NM-4E
slot1 = NM-4T
E0/0 = SW F0/5
S1/0 = FRSW 5
cnfg = C:\My Virtual Labs\★CCNP\BSCI\Frame-Relay\initial.configs\default.config.txt
[[Router R6]]
model = 3640
console = 2006
autostart = False
slot0 = NM-4E
slot1 = NM-4T
E0/0 = SW F0/6
S1/0 = FRSW 6
cnfg = C:\My Virtual Labs\★CCNP\BSCI\Frame-Relay\initial.configs\default.config.txt
[[Router SW]]
model = 3640
console = 2007
autostart = False
slot0 = NM-16ESW
cnfg = C:\My Virtual Labs\★CCNP\BSCI\Frame-Relay\initial.configs\Switch.txt
F0/12 = NIO_gen_eth:\Device\NPF_{0A0621CF-3680-4D5E-B371-681A62C2285E}
[[FRSW FRSW]]
# R1 to FRSW
1:102 = 2:201
1:103 = 3:301
1:113 = 13:311
1:104 = 4:401
1:105 = 5:501
# R2 to FRSW
2:203 = 3:302
2:213 = 13:312
2:204 = 4:402
2:205 = 5:502
# R3 to FRSW
3:304 = 4:403
3:305 = 5:503
13:314 = 4:413
13:315 = 5:513
# R4 to FRSW
4:405 = 5:504
# R6 to FRSW
6:51 = 21:51
6:100 = 21:100
6:101 = 21:101
6:201 = 21:201
6:301 = 21:301
6:401 = 21:401
設定内容
R1
R1#sh run
Building configuration...
Current configuration : 1428 bytes
!
version 12.2
service timestamps debug uptime
service timestamps log uptime
no service password-encryption
!
hostname R1
!
!
ip subnet-zero
!
!
no ip domain-lookup
!
!
!
!
!
!
!
!
fax interface-type fax-mail
mta receive maximum-recipients 0
!
!
!
!
interface Loopback0
ip address 1.1.1.1 255.0.0.0
!
interface FastEthernet0/0
no ip address
shutdown
duplex auto
speed auto
!
interface Serial1/0
ip address 10.1.123.1 255.0.0.0
encapsulation frame-relay
ip ospf network broadcast
serial restart_delay 0
frame-relay map ip 10.1.123.2 102 broadcast
frame-relay map ip 10.1.123.3 103 broadcast
no frame-relay inverse-arp
!
interface Serial1/1
no ip address
shutdown
serial restart_delay 0
!
interface Serial1/2
no ip address
shutdown
serial restart_delay 0
!
interface Serial1/3
no ip address
shutdown
serial restart_delay 0
!
router ospf 1
log-adjacency-changes
network 0.0.0.0 255.255.255.255 area 0
!
ip classless
no ip http server
ip pim bidir-enable
!
!
!
!
call rsvp-sync
!
!
mgcp profile default
!
dial-peer cor custom
!
!
!
alias exec s show ip interface brief
alias exec sr show ip route
alias exec r show running-config
alias exec sen show ip eigrp neighbor
alias exec set show ip eigrp topology
alias exec son show ip ospf neighbor
alias exec soi show ip ospf interface
!
line con 0
exec-timeout 0 0
privilege level 15
logging synchronous
line aux 0
line vty 0 4
password cisco
login
!
!
end
R2
R2#sh run
Building configuration...
Current configuration : 1418 bytes
!
version 12.2
service timestamps debug uptime
service timestamps log uptime
no service password-encryption
!
hostname R2
!
!
ip subnet-zero
!
!
no ip domain-lookup
!
!
!
!
!
!
!
!
fax interface-type fax-mail
mta receive maximum-recipients 0
!
!
!
!
interface Loopback0
ip address 2.2.2.2 255.0.0.0
!
interface FastEthernet0/0
no ip address
shutdown
duplex auto
speed auto
!
interface Serial1/0
ip address 10.1.123.2 255.0.0.0
encapsulation frame-relay
ip ospf network broadcast
serial restart_delay 0
frame-relay map ip 10.1.123.1 201 broadcast
frame-relay map ip 10.1.123.3 201
no frame-relay inverse-arp
!
interface Serial1/1
no ip address
shutdown
serial restart_delay 0
!
interface Serial1/2
no ip address
shutdown
serial restart_delay 0
!
interface Serial1/3
no ip address
shutdown
serial restart_delay 0
!
router ospf 1
log-adjacency-changes
network 0.0.0.0 255.255.255.255 area 0
!
ip classless
no ip http server
ip pim bidir-enable
!
!
!
!
call rsvp-sync
!
!
mgcp profile default
!
dial-peer cor custom
!
!
!
alias exec s show ip interface brief
alias exec sr show ip route
alias exec r show running-config
alias exec sen show ip eigrp neighbor
alias exec set show ip eigrp topology
alias exec son show ip ospf neighbor
alias exec soi show ip ospf interface
!
line con 0
exec-timeout 0 0
privilege level 15
logging synchronous
line aux 0
line vty 0 4
password cisco
login
!
!
end
R3
R3#sh run
Building configuration...
Current configuration : 1588 bytes
!
version 12.2
service timestamps debug uptime
service timestamps log uptime
no service password-encryption
!
hostname R3
!
!
ip subnet-zero
!
!
no ip domain-lookup
!
!
!
!
!
!
!
!
fax interface-type fax-mail
mta receive maximum-recipients 0
!
!
!
!
interface Loopback0
ip address 3.3.3.3 255.0.0.0
!
interface Ethernet0/0
no ip address
shutdown
half-duplex
!
interface Ethernet0/1
no ip address
shutdown
half-duplex
!
interface Ethernet0/2
no ip address
shutdown
half-duplex
!
interface Ethernet0/3
no ip address
shutdown
half-duplex
!
interface Serial1/0
ip address 10.1.123.3 255.0.0.0
encapsulation frame-relay
ip ospf network broadcast
serial restart_delay 0
frame-relay map ip 10.1.123.1 301 broadcast
frame-relay map ip 10.1.123.2 301
no frame-relay inverse-arp
!
interface Serial1/1
no ip address
shutdown
serial restart_delay 0
!
interface Serial1/2
no ip address
shutdown
serial restart_delay 0
!
interface Serial1/3
no ip address
shutdown
serial restart_delay 0
!
router ospf 1
log-adjacency-changes
network 0.0.0.0 255.255.255.255 area 0
!
ip classless
no ip http server
ip pim bidir-enable
!
!
!
!
call rsvp-sync
!
!
mgcp profile default
!
dial-peer cor custom
!
!
!
alias exec s show ip interface brief
alias exec sr show ip route
alias exec r show running-config
alias exec sen show ip eigrp neighbor
alias exec set show ip eigrp topology
alias exec son show ip ospf neighbor
alias exec soi show ip ospf interface
!
line con 0
exec-timeout 0 0
privilege level 15
logging synchronous
line aux 0
line vty 0 4
password cisco
login
!
!
end
設定確認
show frame-relay map
R1#sh frame-relay map
Serial1/0 (up): ip 10.1.123.2 dlci 102(0x66,0x1860), static,
broadcast,
CISCO, status defined, active
Serial1/0 (up): ip 10.1.123.3 dlci 103(0x67,0x1870), static,
broadcast,
CISCO, status defined, active
R2#sh frame-relay map
Serial1/0 (up): ip 10.1.123.1 dlci 201(0xC9,0x3090), static,
broadcast,
CISCO, status defined, active
Serial1/0 (up): ip 10.1.123.3 dlci 201(0xC9,0x3090), static,
CISCO, status defined, active
R3#sh frame-relay map
Serial1/0 (up): ip 10.1.123.1 dlci 301(0x12D,0x48D0), static,
broadcast,
CISCO, status defined, active
Serial1/0 (up): ip 10.1.123.2 dlci 301(0x12D,0x48D0), static,
CISCO, status defined, active
show ip route
R1#sh ip route
Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - [[OSPF]], IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP
i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
* - candidate default, U - per-user static route, o - ODR
P - periodic downloaded static route
Gateway of last resort is not set
C 1.0.0.0/8 is directly connected, Loopback0
2.0.0.0/32 is subnetted, 1 subnets
O 2.2.2.2 [110/65] via 10.1.123.2, 00:00:39, Serial1/0
3.0.0.0/32 is subnetted, 1 subnets
O 3.3.3.3 [110/65] via 10.1.123.3, 00:00:39, Serial1/0
C 10.0.0.0/8 is directly connected, Serial1/0
R2#sh ip route
Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP
i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
* - candidate default, U - per-user static route, o - ODR
P - periodic downloaded static route
Gateway of last resort is not set
1.0.0.0/32 is subnetted, 1 subnets
O 1.1.1.1 [110/65] via 10.1.123.1, 00:00:42, Serial1/0
C 2.0.0.0/8 is directly connected, Loopback0
3.0.0.0/32 is subnetted, 1 subnets
O 3.3.3.3 [110/65] via 10.1.123.3, 00:00:42, Serial1/0
C 10.0.0.0/8 is directly connected, Serial1/0
R3#sh ip route
Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP
i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
* - candidate default, U - per-user static route, o - ODR
P - periodic downloaded static route
Gateway of last resort is not set
1.0.0.0/32 is subnetted, 1 subnets
O 1.1.1.1 [110/65] via 10.1.123.1, 00:00:46, Serial1/0
2.0.0.0/32 is subnetted, 1 subnets
O 2.2.2.2 [110/65] via 10.1.123.2, 00:00:46, Serial1/0
C 3.0.0.0/8 is directly connected, Loopback0
C 10.0.0.0/8 is directly connected, Serial1/0
show ip ospf neighbor
R1#sh ip ospf neighbor
Neighbor ID Pri State Dead Time Address Interface
3.3.3.3 1 FULL/BDR 00:00:39 10.1.123.3 Serial1/0
2.2.2.2 1 FULL/DROTHER 00:00:36 10.1.123.2 Serial1/0
R2#sh ip ospf neighbor
Neighbor ID Pri State Dead Time Address Interface
1.1.1.1 1 FULL/DR 00:00:39 10.1.123.1 Serial1/0
R3#sh ip ospf neighbor
Neighbor ID Pri State Dead Time Address Interface
1.1.1.1 1 FULL/DR 00:00:34 10.1.123.1 Serial1/0
show ip ospf interface
R1#sh ip ospf interface
Loopback0 is up, line protocol is up
Internet Address 1.1.1.1/8, Area 0
Process ID 1, Router ID 1.1.1.1, Network Type LOOPBACK, Cost: 1
Loopback interface is treated as a stub Host
Serial1/0 is up, line protocol is up
Internet Address 10.1.123.1/8, Area 0
Process ID 1, Router ID 1.1.1.1, Network Type BROADCAST, Cost: 64
Transmit Delay is 1 sec, State DR, Priority 1
Designated Router (ID) 1.1.1.1, Interface address 10.1.123.1
Backup Designated router (ID) 3.3.3.3, Interface address 10.1.123.3
Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
Hello due in 00:00:08
Index 1/1, flood queue length 0
Next 0x0(0)/0x0(0)
Last flood scan length is 0, maximum is 1
Last flood scan time is 0 msec, maximum is 0 msec
Neighbor Count is 2, Adjacent neighbor count is 2
Adjacent with neighbor 3.3.3.3 (Backup Designated Router)
Adjacent with neighbor 2.2.2.2
Suppress hello for 0 neighbor(s)
R2#sh ip ospf interface
Loopback0 is up, line protocol is up
Internet Address 2.2.2.2/8, Area 0
Process ID 1, Router ID 2.2.2.2, Network Type LOOPBACK, Cost: 1
Loopback interface is treated as a stub Host
Serial1/0 is up, line protocol is up
Internet Address 10.1.123.2/8, Area 0
Process ID 1, Router ID 2.2.2.2, Network Type BROADCAST, Cost: 64
Transmit Delay is 1 sec, State BDR, Priority 1
Designated Router (ID) 1.1.1.1, Interface address 10.1.123.1
Backup Designated router (ID) 2.2.2.2, Interface address 10.1.123.2
Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
Hello due in 00:00:04
Index 1/1, flood queue length 0
Next 0x0(0)/0x0(0)
Last flood scan length is 1, maximum is 1
Last flood scan time is 0 msec, maximum is 0 msec
Neighbor Count is 1, Adjacent neighbor count is 1
Adjacent with neighbor 1.1.1.1 (Designated Router)
Suppress hello for 0 neighbor(s)
最終更新：2010年11月28日 16:46
