■ Haswell NUC D54250WYKをMac mini化する

1. D54250WYKでのOS X 10.8.5動作状況

製品情報

• IntelDesktop Boards – Next Unit of Computing (NUC)
• 製品概要
• 製品ドキュメント＆マニュアル
• ダウンロードセンター（ドライバ、BIOS）

ハードウェア構成

• Intel NUC(Next Unit of Computing) Kit Intel Core i5 4250U搭載マザーボード(D54250WYB)キット BOXD54250WYK
• Crucial CT2KIT102464BF160B DDR3-L 1600 8GBx2
• TOSHIBA HG5 mSATA 128GB
• Broadcom BCM94352HMB BCM4352 802.11a/b/g/n/ac WLAN + Bluetooth PCI-E Mini 無線LANカード Dell DW1550
• 3ピンミッキータイプアダプター用ケーブル
• Mini HDMI-HDMIケーブル
• Mini DisplayPort-HDMIケーブル
• UASP対応 USB3.0接続 2.5インチ SATA SSD/HDD用 外付けケース バスパワー FEU3NS-1E
• Apple EarPods with Remote and Mic MD827FE/A
• Nintendo Wireless Keyboard (Bluetooth Keyboard)
• ELECOM Bluetooth3.0マウス BlueLED 3ボタン コンパクト

不具合情報

• USBキーボードを突然認識しなくなる、USBメモリの認識に失敗する→BIOS 0023で修正（Fixed issue with random USB loss.）
• 特定のUSBメモリを接続しているとシステムブート時にハングする→BIOS 0024で修正（Fixed issue where system hangs if certain USB thumb drives are connected.）

参考情報）

• Haswell搭載NUC見参!! USB 3.0とGbEで「可能性」が大幅アップ!
• Intel「NUC Kit D54250WYK」 ～TDP 15WのHaswellを搭載版、Samsung mSATA SSDもテスト
• 長期休みの相棒はコイツで決まり!? - Haswell搭載NUC「Intel D54250WYK」を試す
• Haswell世代のCPUを搭載しどう変わった？ インテルの最新NUCベアボーン「D54250WYK」を使ってみた
• Intel NUC Kit D54250WYK Review  The NUC Gets Haswell Power!
• Intel's Haswell NUC: D54250WYK UCFF PC Review
• Intel NUC KIT D54250WYKH Review  Finally a 2.5-Inch Drive Fits

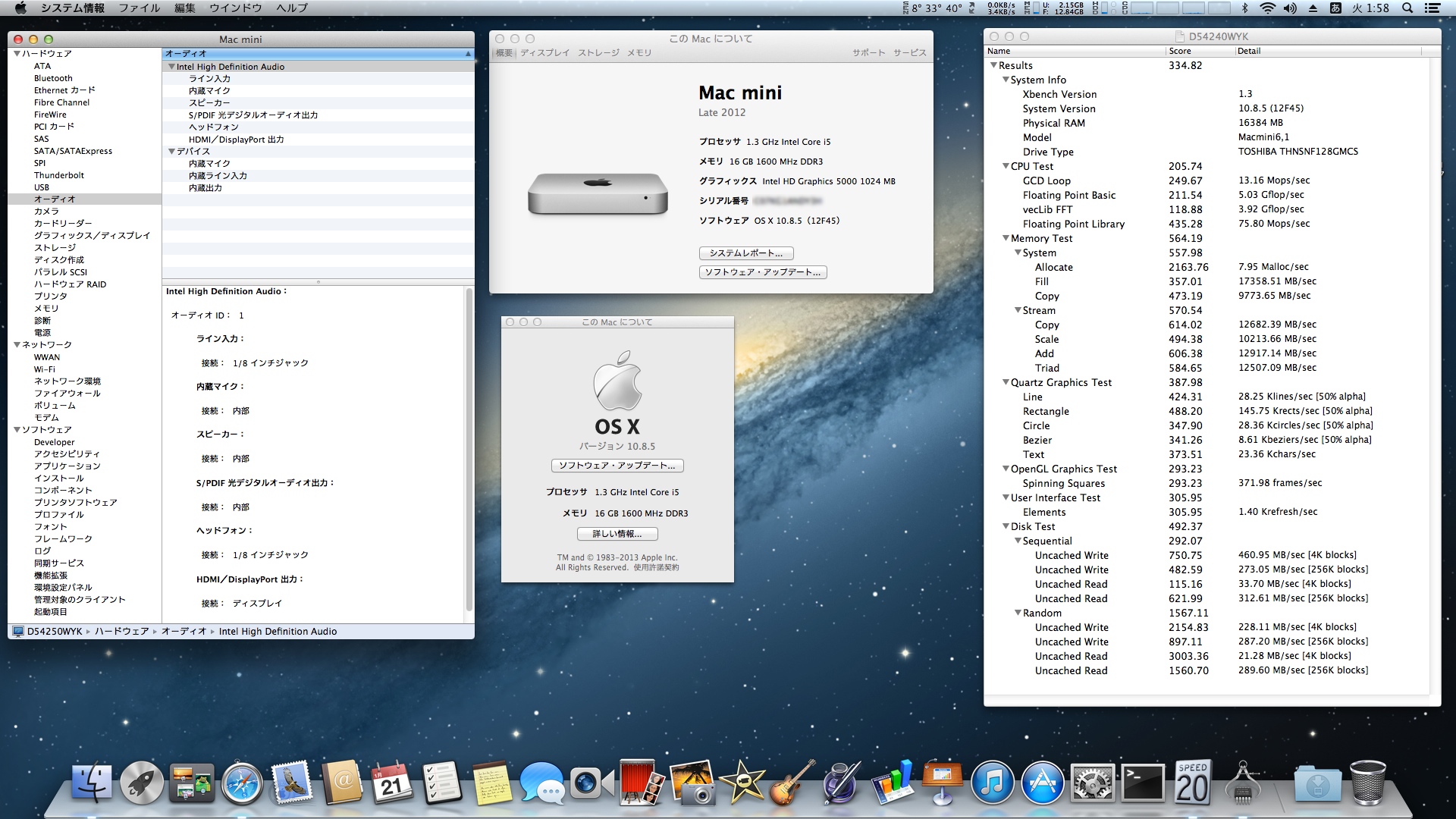

10.8.5での動作画面

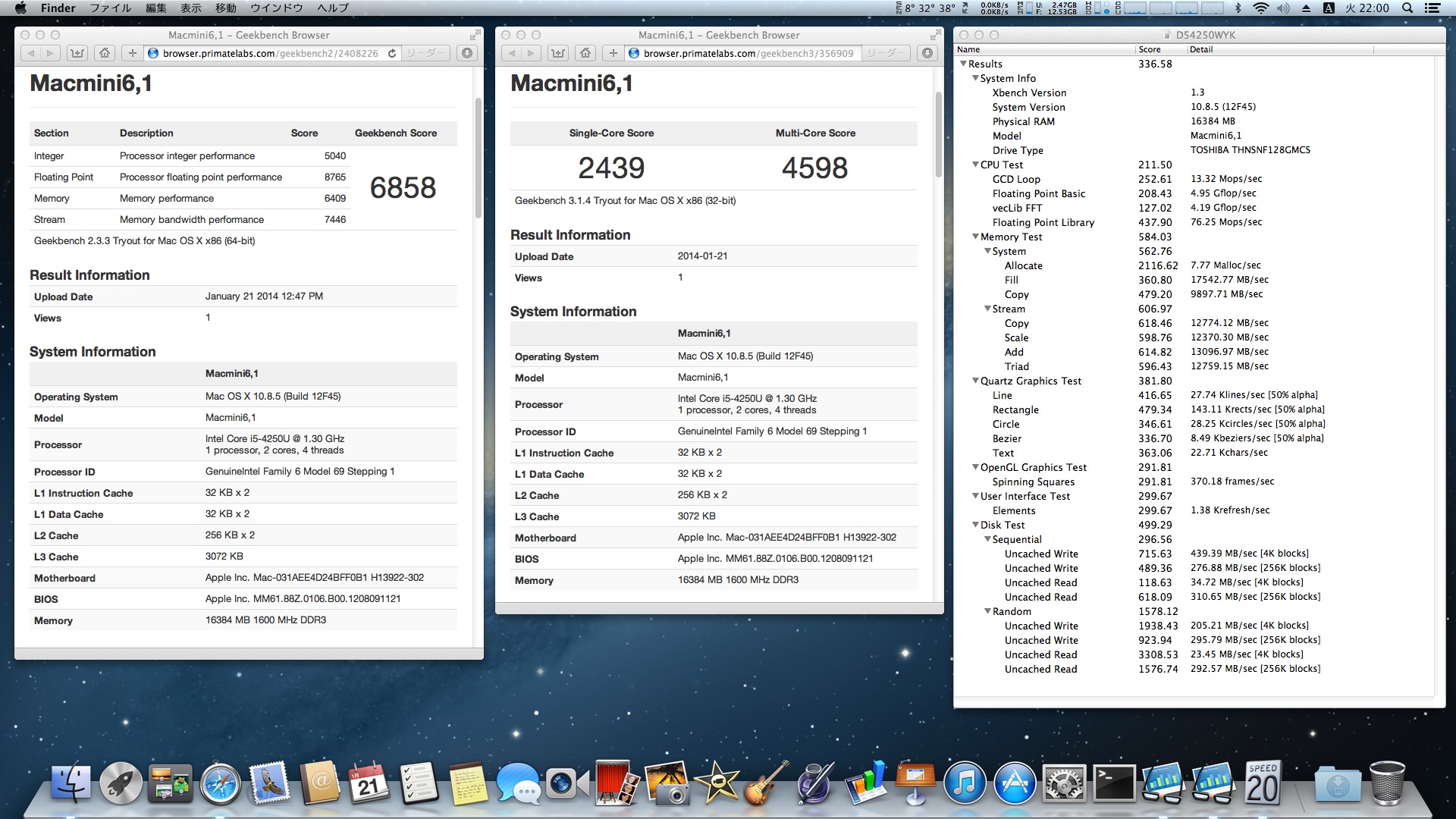

各種ベンチマーク結果

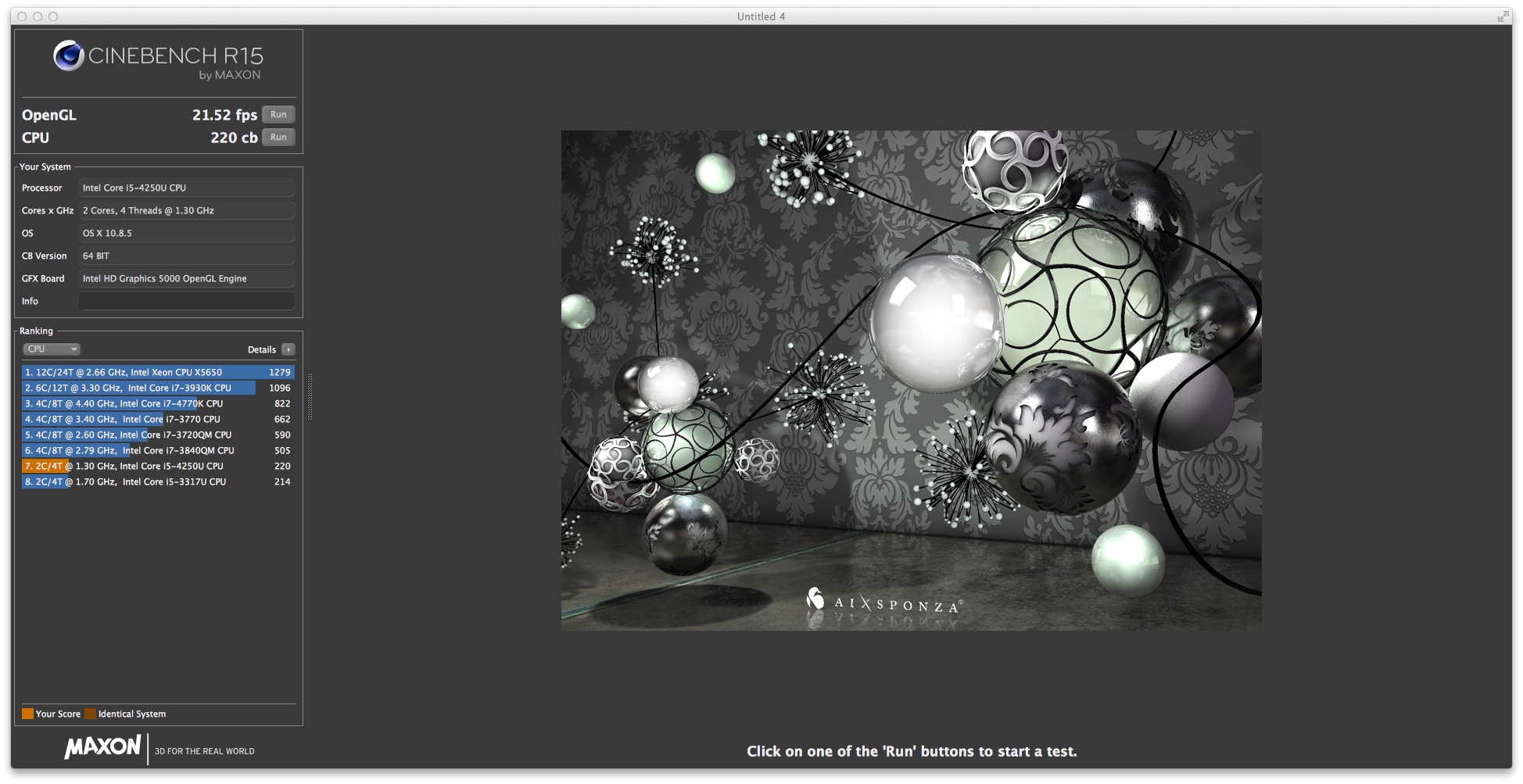

CINEBENCH R15の結果

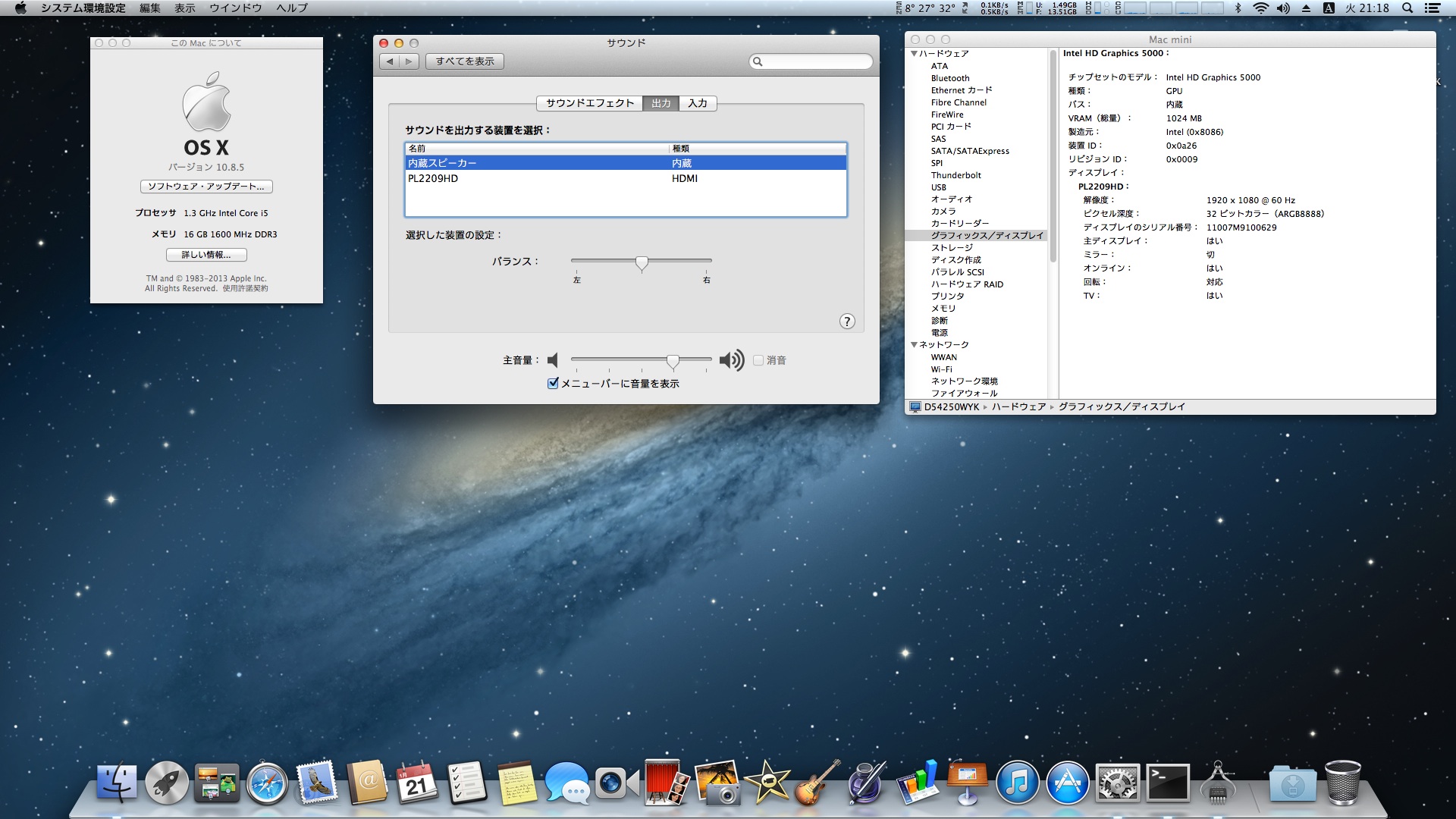

HDMI Audio、内蔵オーディオALC283の動作状況(EarPodsでのヘッドフォン、マイクOK)

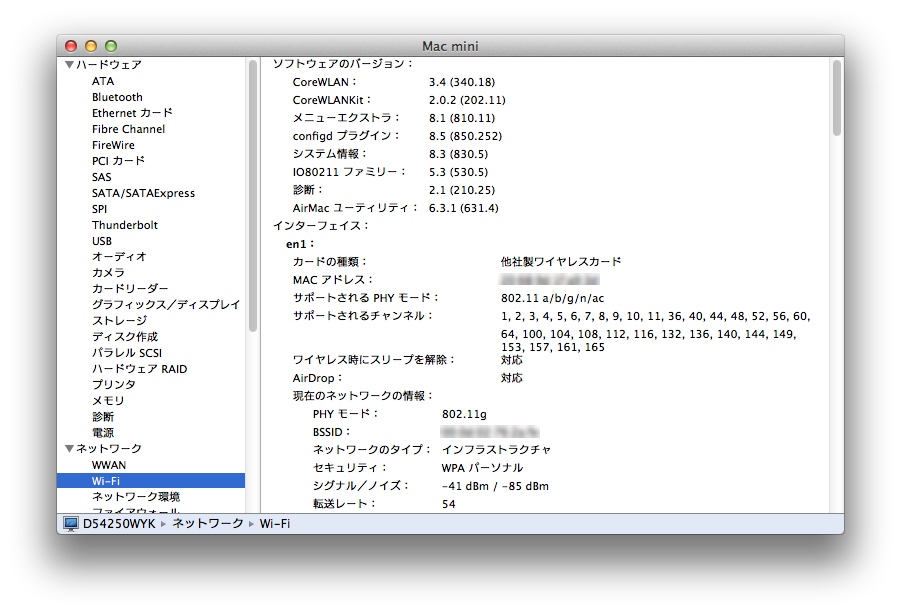

WiFi 802.11a/g/b/n/acの動作状況

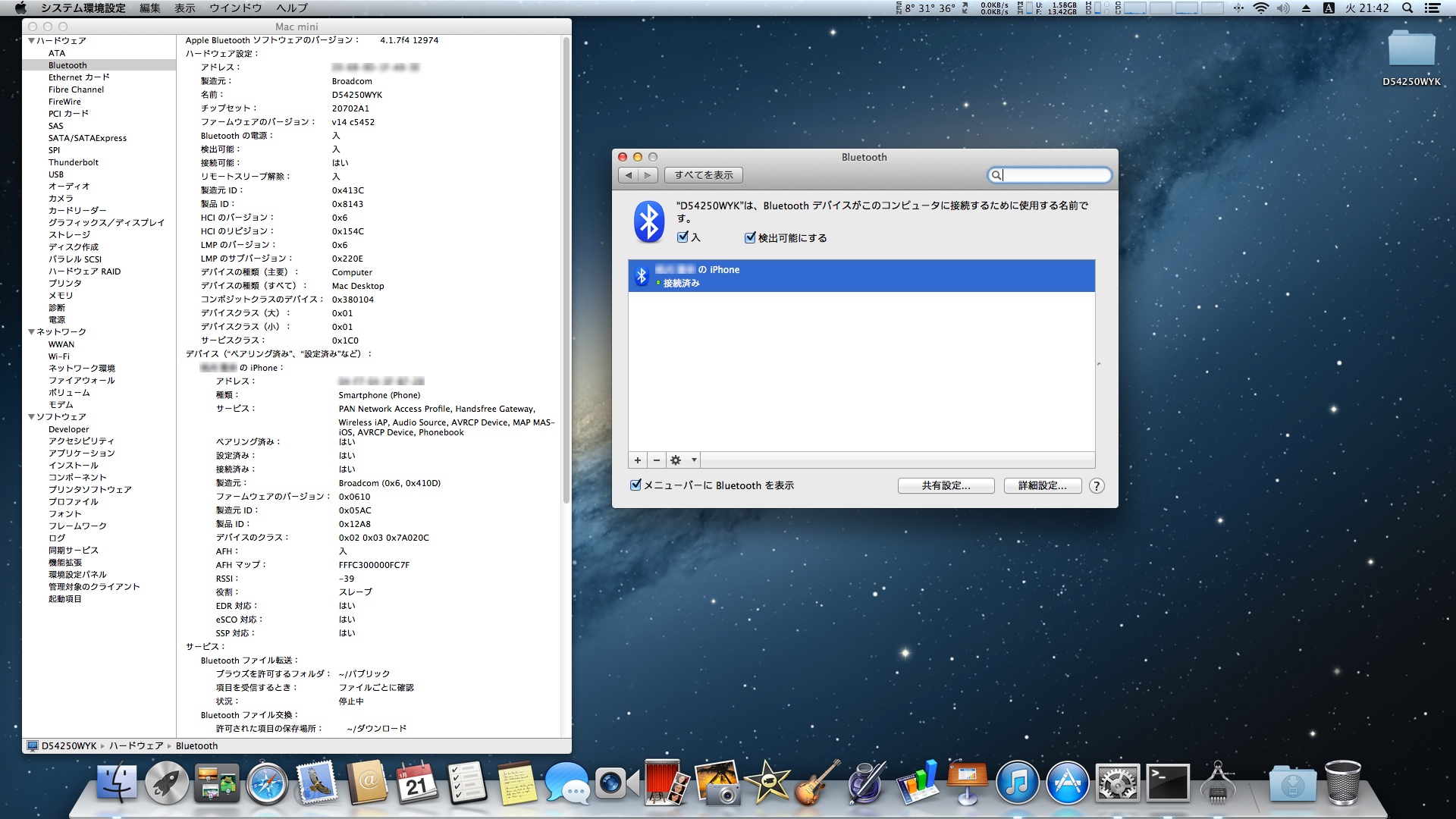

Bluetooth 4.0の動作状況

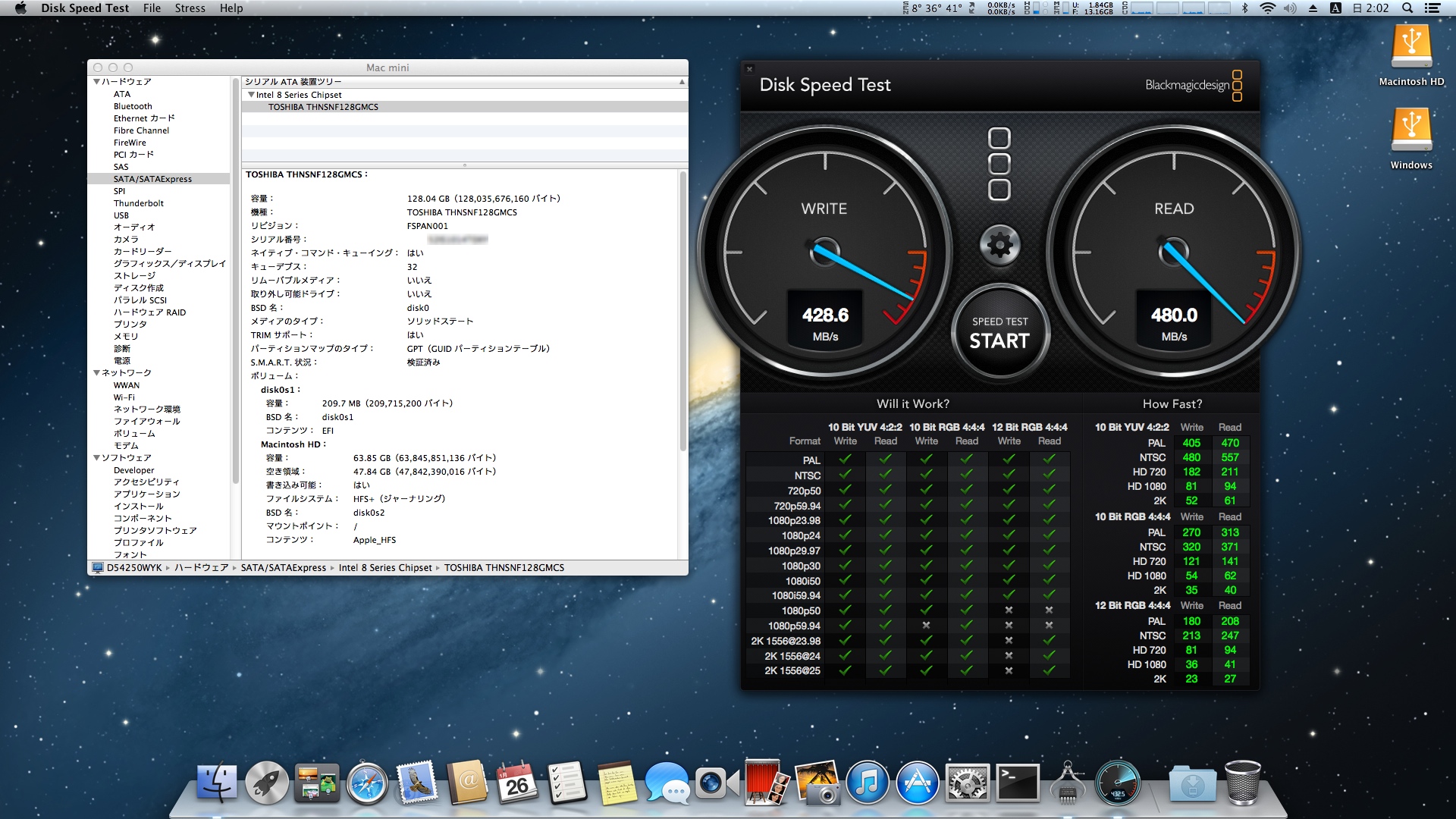

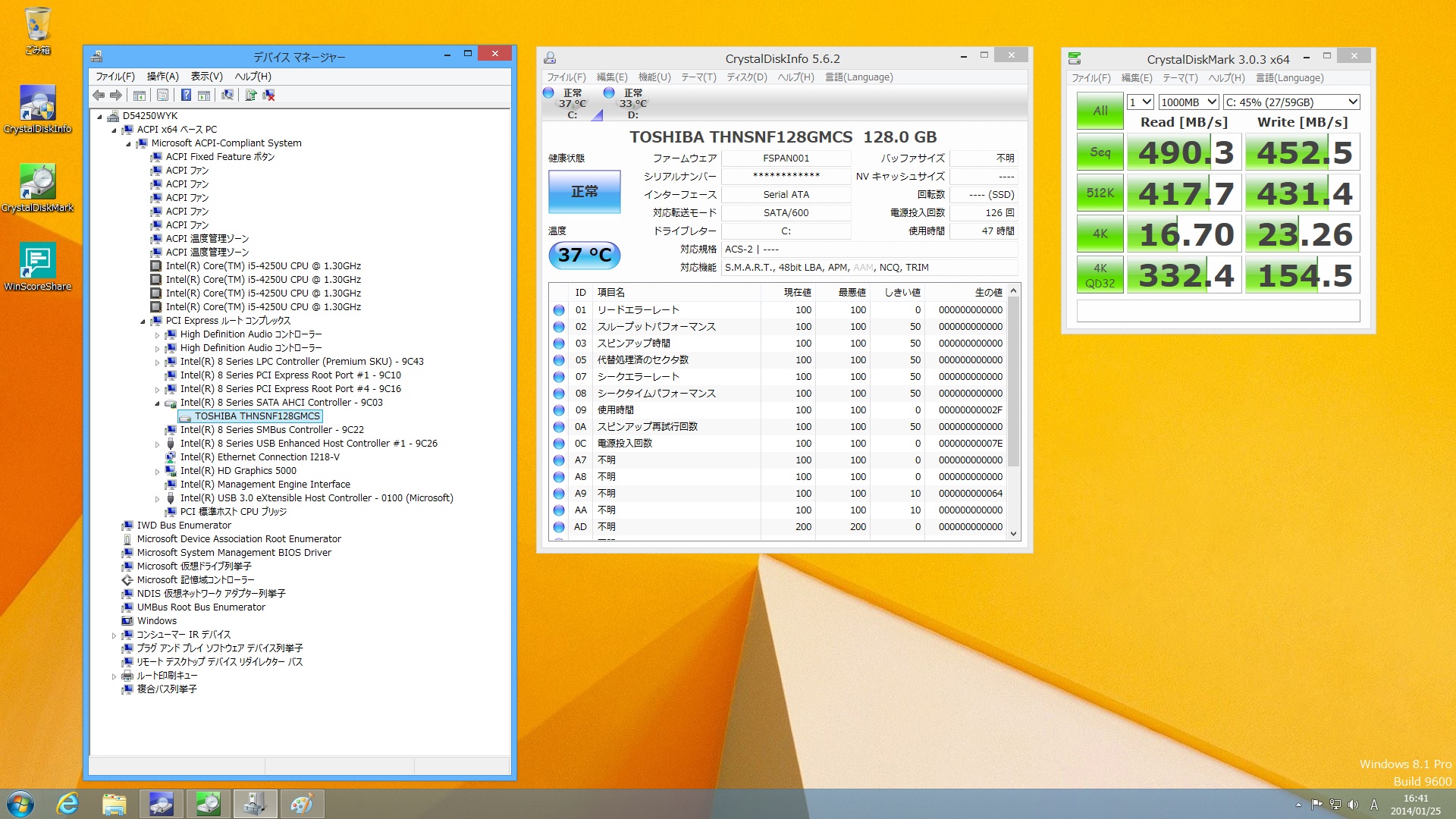

内蔵SSD TOSHIBA mSATA HG5のパフォーマンス

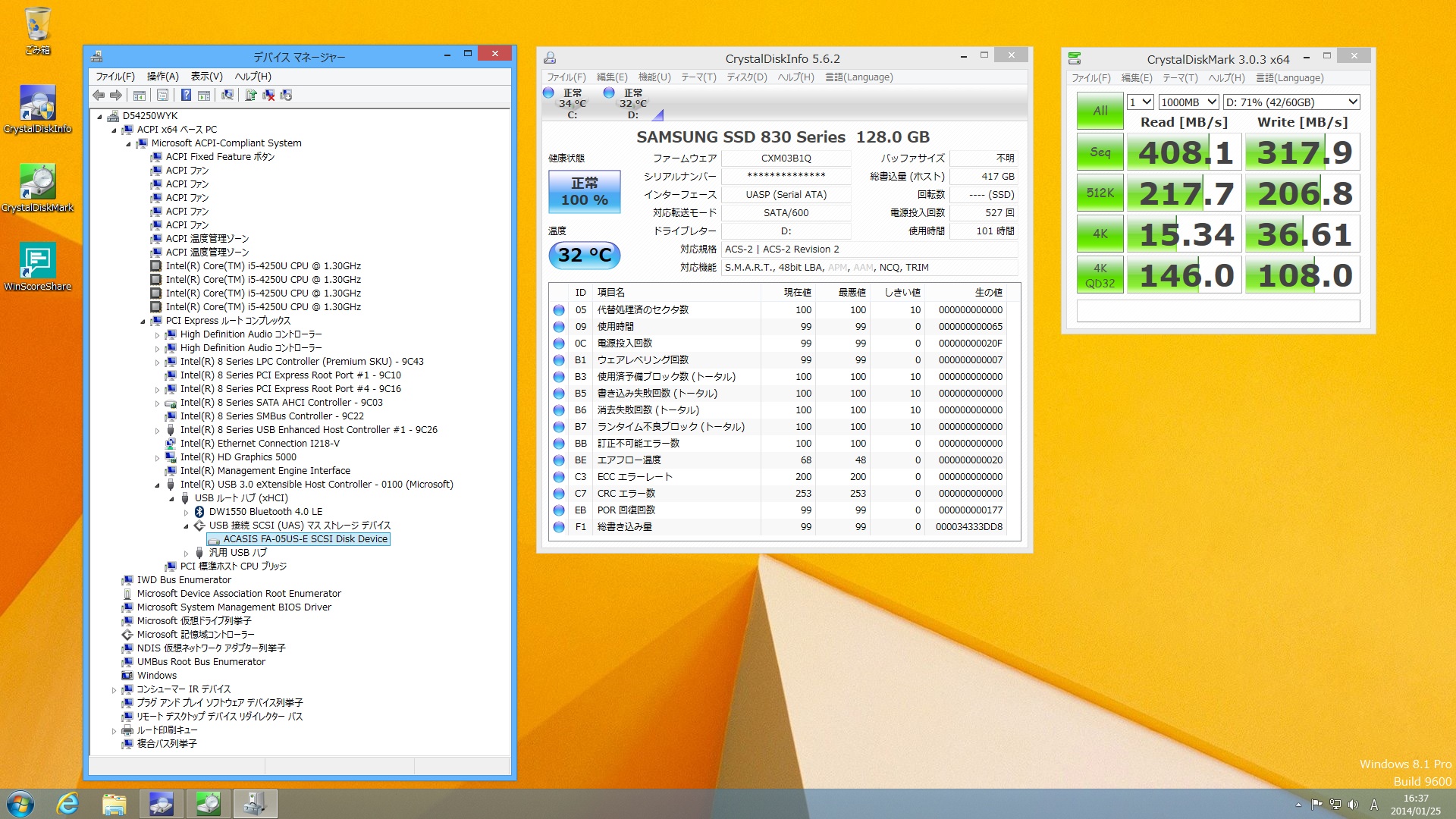

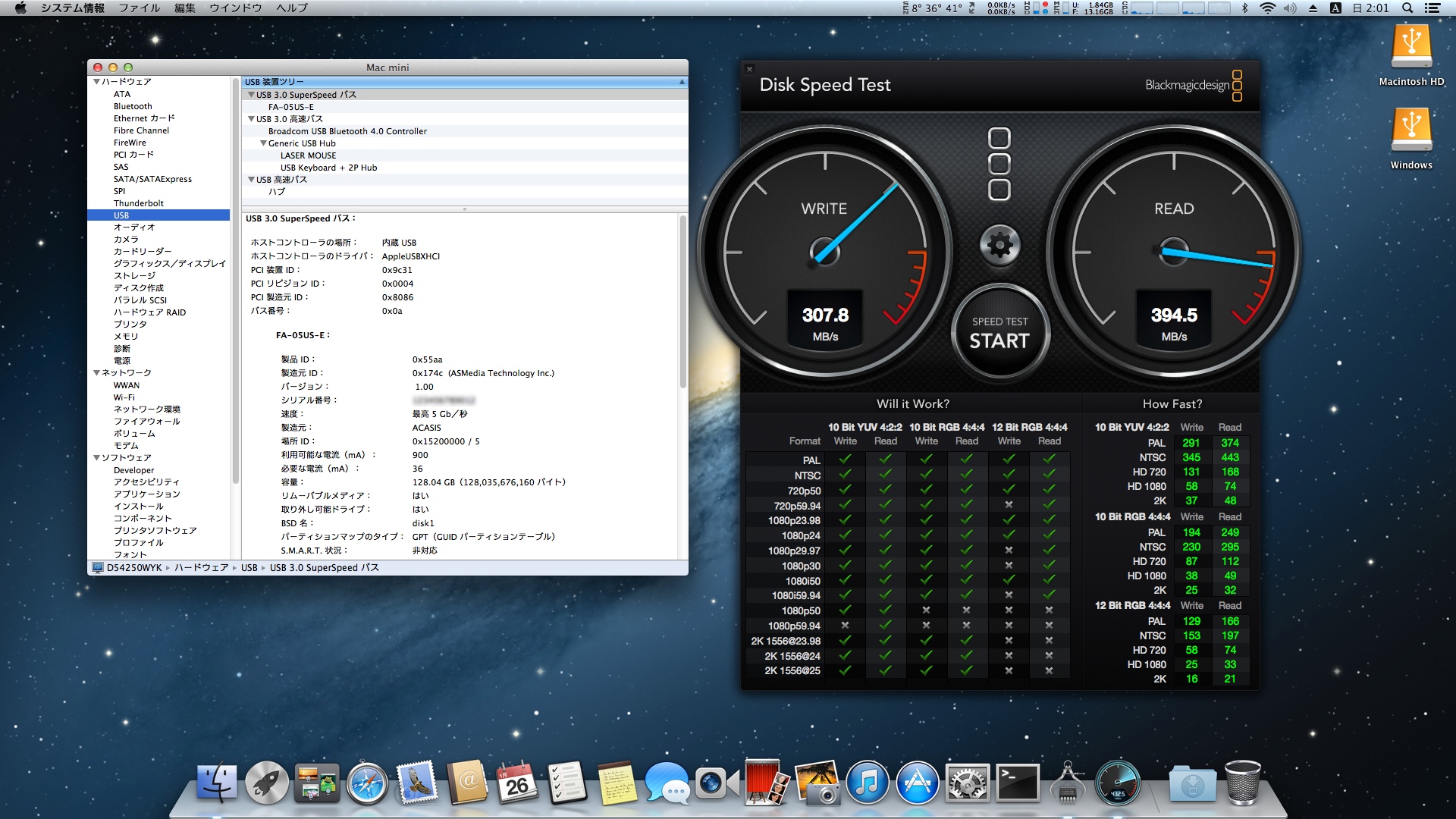

USB3.0(ASM1053E) UASP+Samsung SSD 830 128GB（Read 520MB/s Write 320MB/s)のパフォーマンス

参考情報)
Experimental bin patch for Maverick
Mavericks/Haswell Kernel Patch for Early Reboot
Haswell early reboot, Mavericks, locked MSRs, and HP Envy 15-J063CL (i7-4700MQ)
AppleHDA Binary Patching
Bluetooth Firmware Uploader
The Perfect Mini PCIe WiFi and Bluetooth Combo card for Notebooks
Installation Guide : Intel Haswell NUC Core i5 (D54250WYK)
Installation Guide : Intel Haswell NUC Core i5 (D54250WYK) V2
Installation Guide For Using Clover on the Intel Haswell NUC

2. インストール手順

　OSXのインストール方法、考え方については、DC3217BYへのインストール手順に準じる。OS X Mavericks 10.9のインストール方法については、Installation Guide : Intel Haswell NUC Core i5 (D54250WYK)で既に確立しているので、本ページではOS X Mountain Lion 10.8.5での動作確認を中心とする。異なる部分については、下記のHaswll NUCメモを参照のこと。

■Haswell NUC メモ

• Kernel

10.8.5
# for xpcm related panic/reboot Darwin 12.5.0

perl -pi -e 's|\x74\x69(\x48\x83\xc7\x28\x90\x8b\x05\xfe\xce\x5f\x00\x85\x47\xdc)\x74\x51(\x8b\x4f\xd8\x45\x85\xc0\x74\x05\x44\x39\xc1)\x75\x44(\x0f\x32\x89\xc0\x48\xc1\xe2\x20\x48\x09\xc2\x48\x89\x57\xf8\x48\x8b\x47\xe8\x48\x85\xc0\x74\x06\x48\xf7\xd0\x48\x21\xc2\x48\x0b\x57\xf0\x49\x89\xd1\x49\xc1\xe9\x20\x89\xd0\x8b\x4f\xd8\x4c\x89\xca)(\x0f\x30\x8b\x4f\xd8\x0f\x32\x89\xc0\x48\xc1\xe2\x20\x48\x09\xc2\x48\x89\x17\x48\x83\xc7\x30\xff\xce)\x75\x9c(\x5d\xc3)\x90{7}(\x90{3})|\x74\x70${1}\x74\x58${2}\x75\x4b${3}\x66\x81\xf9\xe2\x00\x74\x02${4}\x75\x95${5}${6}|g' mach_kernel

10.9/10.9.1
# for xpcm related panic/reboot Darwin 13.0.0

perl -pi -e 's|\x74\x6c(\x48\x83\xc7\x28\x90\x8b\x05\x5e\x30\x5e\x00\x85\x47\xdc)\x74\x54(\x8b\x4f\xd8\x45\x85\xc0\x74\x08\x44\x39\xc1\x44\x89\xc1)\x75\x44(\x0f\x32\x89\xc0\x48\xc1\xe2\x20\x48\x09\xc2\x48\x89\x57\xf8\x48\x8b\x47\xe8\x48\x85\xc0\x74\x06\x48\xf7\xd0\x48\x21\xc2\x48\x0b\x57\xf0\x49\x89\xd1\x49\xc1\xe9\x20\x89\xd0\x8b\x4f\xd8\x4c\x89\xca)(\x0f\x30\x8b\x4f\xd8\x0f\x32\x89\xc0\x48\xc1\xe2\x20\x48\x09\xc2\x48\x89\x17\x48\x83\xc7\x30\xff\xce)\x75\x99(\x5d\xc3)\x90{7}|\x74\x73${1}\x74\x5b${2}\x75\x4b${3}\x66\x81\xf9\xe2\x00\x74\x02${4}\x75\x92${5}|g' mach_kernel

10.9.2
# for xpcm related panic/reboot Darwin 13.1.0

perl -pi -e 's|\x74\x6c(\x48\x83\xc7\x28\x90\x8b\x05\x46\x37\x5e\x00\x85\x47\xdc)\x74\x54(\x8b\x4f\xd8\x45\x85\xc0\x74\x08\x44\x39\xc1\x44\x89\xc1)\x75\x44(\x0f\x32\x89\xc0\x48\xc1\xe2\x20\x48\x09\xc2\x48\x89\x57\xf8\x48\x8b\x47\xe8\x48\x85\xc0\x74\x06\x48\xf7\xd0\x48\x21\xc2\x48\x0b\x57\xf0\x49\x89\xd1\x49\xc1\xe9\x20\x89\xd0\x8b\x4f\xd8\x4c\x89\xca)(\x0f\x30\x8b\x4f\xd8\x0f\x32\x89\xc0\x48\xc1\xe2\x20\x48\x09\xc2\x48\x89\x17\x48\x83\xc7\x30\xff\xce)\x75\x99(\x5d\xc3)\x90{7}|\x74\x73${1}\x74\x5b${2}\x75\x4b${3}\x66\x81\xf9\xe2\x00\x74\x02${4}\x75\x92${5}|g' mach_kernel

10.9.x
# for xpcm related panic/reboot Darwin 13.x.0

perl -pi -e 's|\x74\x6c(\x48\x83\xc7\x28\x90\x8b\x05..\x5e\x00\x85\x47\xdc)\x74\x54(\x8b\x4f\xd8\x45\x85\xc0\x74\x08\x44\x39\xc1\x44\x89\xc1)\x75\x44(\x0f\x32\x89\xc0\x48\xc1\xe2\x20\x48\x09\xc2\x48\x89\x57\xf8\x48\x8b\x47\xe8\x48\x85\xc0\x74\x06\x48\xf7\xd0\x48\x21\xc2\x48\x0b\x57\xf0\x49\x89\xd1\x49\xc1\xe9\x20\x89\xd0\x8b\x4f\xd8\x4c\x89\xca)(\x0f\x30\x8b\x4f\xd8\x0f\x32\x89\xc0\x48\xc1\xe2\x20\x48\x09\xc2\x48\x89\x17\x48\x83\xc7\x30\xff\xce)\x75\x99(\x5d\xc3)\x90{7}|\x74\x73${1}\x74\x5b${2}\x75\x4b${3}\x66\x81\xf9\xe2\x00\x74\x02${4}\x75\x92${5}|g' mach_kernel

• DSDT

Haswell ACPI is 5.0
use iasl for Supports ACPI Specification Revision 5.0

Device (PCI0)

• ADD

Device (GFX0)
{
Name (_ADR, 0x00020000)
Method (_DSM, 4, NotSerialized)
{
If (LEqual (Arg2, Zero))
{
Return (Buffer (One)
{
0x03
})
}

Return (Package (0x06)
{
"AAPL,ig-platform-id",
Buffer (0x04)
{
0x03, 0x00, 0x22, 0x0D
},

"model",
Buffer (0x17)
{
"Intel HD Graphics 5000"
},

"hda-gfx",
Buffer (0x0A)
{
"onboard-1"
}
})
}
}

Device (HDAU)
{
Name (_ADR, 0x00030000)
Method (_DSM, 4, NotSerialized)
{
If (LEqual (Arg2, Zero))
{
Return (Buffer (One)
{
0x03
})
}

Return (Package (0x04)
{
"layout-id",
Buffer (0x04)
{
0x01, 0x00, 0x00, 0x00
},

"hda-gfx",
Buffer (0x0A)
{
"onboard-1"
}
})
}
}

Device (HDEF)

• ADD (layout 1)

Method (_DSM, 4, NotSerialized)
{
If (LEqual (Arg2, Zero))
{
Return (Buffer (One)
{
0x03
})
}

Return (Package (0x04)
{
"layout-id",
Buffer (0x04)
{
0x01, 0x00, 0x00, 0x00
},

"PinConfigurations",
Buffer (Zero) {}
})
}

Device (SAT0)

• ADD

Method (_DSM, 4, NotSerialized)
{
If (LEqual (Arg2, Zero))
{
Return (Buffer (One)
{
0x03
})
}

Return (Package (0x08)
{
"device-id",
Buffer (0x04)
{
0x03, 0x8C, 0x00, 0x00
},

"compatible",
Buffer (0x0D)
{
"pci8086,8c03"
},

"IOName",
Buffer (0x0D)
{
"pci8086,8c03"
},

"name",
Buffer (0x0D)
{
"pci8086,8c03"
}
})
}

• Enable Trim Support

sudo perl -pi -e 's/\x41\x50\x50\x4c\x45\x20\x53\x53\x44/\x00\x00\x00\x00\x00\x00\x00\x00\x00/g' /System/Library/Extensions/IOAHCIFamily.kext/Contents/PlugIns/IOAHCIBlockStorage.kext/Contents/MacOS/IOAHCIBlockStorage

• Audio HDMI

DP on the NUC is port 6, HDMI is port 5
Port 0x5 from DP to HDMI
Port 0x6 DP (not change)

0D220003
Find　　03 00 22 0D
Find　　01 05 12 00 00 04 00 00 87 00 00 00
Replace 01 05 12 00 00 08 00 00 06 00 00 00

03 00 22 0D 00 03 03 03 00 00 00 02 00 00 00 01
00 00 00 00 00 00 00 40 99 14 00 00 99 14 00 00
00 00 00 00 00 00 00 00 01 05 12 00 00 08 00 00 DP->HDMI
06 00 00 00 02 04 14 00 00 04 00 00 87 00 00 00 DP
03 06 10 00 00 04 00 00 11 00 00 00 FF 00 01 00
01 00 00 00 40 00 00 00 02 00 00 00 01 01 00 00
04 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 0E 00 00 00

10.8.5/10.9/10.9.1

sudo perl -pi -e 's|\x00\x00\x04\x00\x00\x87\x00\x00\x00\x03\x06|\x00\x00\x08\x00\x00\x06\x00\x00\x00\x03\x06|g' /System/Library/Extensions/AppleIntelFramebufferAzul.kext/Contents/MacOS/AppleIntelFramebufferAzul

• Audio ALC283

10.8.5/10.9/10.9.1
replace 11D41984 -> 10EC0283
replace 10EC0884 -> 00000000
replace 10EC0885 -> 00000000

sudo perl -pi -e 's|\x84\x19\xd4\x11|\x83\x02\xec\x10|g' /System/Library/Extensions/AppleHDA.kext/Contents/MacOS/AppleHDA
sudo perl -pi -e 's|\x84\x08\xec\x10|\x00\x00\x00\x00|g' /System/Library/Extensions/AppleHDA.kext/Contents/MacOS/AppleHDA
sudo perl -pi -e 's|\x85\x08\xec\x10|\x00\x00\x00\x00|g' /System/Library/Extensions/AppleHDA.kext/Contents/MacOS/AppleHDA

Platforms.xml
ADD PathMap 283

<key>PathMaps</key>
<array>
<dict>
<key>PathMap</key>
<array>
<array>
<array>
<array>
<dict>
<key>Amp</key>
<dict>
<key>Channels</key>
<array>
<dict>
<key>Bind</key>
<integer>1</integer>
<key>Channel</key>
<integer>1</integer>
</dict>
<dict>
<key>Bind</key>
<integer>2</integer>
<key>Channel</key>
<integer>2</integer>
</dict>
</array>
<key>MuteInputAmp</key>
<true/>
<key>PublishMute</key>
<true/>
<key>PublishVolume</key>
<true/>
<key>VolumeInputAmp</key>
<true/>
</dict>
<key>NodeID</key>
<integer>9</integer>
</dict>
<dict>
<key>NodeID</key>
<integer>34</integer>
</dict>
<dict>
<key>Boost</key>
<integer>3</integer>
<key>NodeID</key>
<integer>25</integer>
</dict>
</array>
</array>
</array>
<array>
<array>
<array>
<dict>
<key>Amp</key>
<dict>
<key>Channels</key>
<array>
<dict>
<key>Bind</key>
<integer>1</integer>
<key>Channel</key>
<integer>1</integer>
</dict>
<dict>
<key>Bind</key>
<integer>2</integer>
<key>Channel</key>
<integer>2</integer>
</dict>
</array>
<key>MuteInputAmp</key>
<true/>
<key>PublishMute</key>
<true/>
<key>PublishVolume</key>
<true/>
<key>VolumeInputAmp</key>
<true/>
</dict>
<key>NodeID</key>
<integer>8</integer>
</dict>
<dict>
<key>NodeID</key>
<integer>35</integer>
</dict>
<dict>
<key>Boost</key>
<integer>1</integer>
<key>NodeID</key>
<integer>24</integer>
</dict>
</array>
</array>
</array>
<array>
<array>
<array>
<dict>
<key>NodeID</key>
<integer>27</integer>
</dict>
<dict>
<key>NodeID</key>
<integer>12</integer>
</dict>
<dict>
<key>Amp</key>
<dict>
<key>Channels</key>
<array>
<dict>
<key>Bind</key>
<integer>1</integer>
<key>Channel</key>
<integer>1</integer>
</dict>
<dict>
<key>Bind</key>
<integer>2</integer>
<key>Channel</key>
<integer>2</integer>
</dict>
</array>
<key>MuteInputAmp</key>
<true/>
<key>PublishMute</key>
<true/>
<key>PublishVolume</key>
<true/>
<key>VolumeInputAmp</key>
<false/>
</dict>
<key>NodeID</key>
<integer>2</integer>
</dict>
</array>
</array>
<array>
<array>
<dict>
<key>Amp</key>
<dict>
<key>MuteInputAmp</key>
<true/>
<key>PublishMute</key>
<true/>
<key>PublishVolume</key>
<true/>
<key>VolumeInputAmp</key>
<false/>
</dict>
<key>NodeID</key>
<integer>33</integer>
</dict>
<dict>
<key>Amp</key>
<dict>
<key>MuteInputAmp</key>
<true/>
<key>PublishMute</key>
<true/>
<key>PublishVolume</key>
<true/>
<key>VolumeInputAmp</key>
<false/>
</dict>
<key>NodeID</key>
<integer>13</integer>
</dict>
<dict>
<key>Amp</key>
<dict>
<key>Channels</key>
<array>
<dict>
<key>Bind</key>
<integer>1</integer>
<key>Channel</key>
<integer>1</integer>
</dict>
<dict>
<key>Bind</key>
<integer>2</integer>
<key>Channel</key>
<integer>2</integer>
</dict>
</array>
<key>MuteInputAmp</key>
<true/>
<key>PublishMute</key>
<true/>
<key>PublishVolume</key>
<true/>
<key>VolumeInputAmp</key>
<false/>
</dict>
<key>NodeID</key>
<integer>3</integer>
</dict>
</array>
</array>
</array>
</array>
<key>PathMapID</key>
<integer>283</integer>
</dict>
</array>

layout1.xml

<dict>
<key>LayoutID</key>
<integer>1</integer>
<key>PathMapRef</key>
<array>
<dict>
<key>CodecID</key>
<array>
<integer>283902595</integer>
</array>
<key>Headphone</key>
<dict/>
<key>Inputs</key>
<array>
<string>LineIn</string>
<string>Mic</string>
</array>
<key>IntSpeaker</key>
<dict/>
<key>LineIn</key>
<dict/>
<key>LineOut</key>
<dict>
<key>AmpPostDelay</key>
<integer>100</integer>
<key>AmpPreDelay</key>
<integer>100</integer>
<key>MaximumBootBeepValue</key>
<integer>48</integer>
</dict>
<key>Mic</key>
<dict/>
<key>Outputs</key>
<array>
<string>Headphone</string>
<string>IntSpeaker</string>
</array>
<key>PathMapID</key>
<integer>283</integer>
</dict>
</array>
</dict>

AppleHDAHardwareConfigDriver
ADD CodecID

<string>com.apple.driver.AppleHDAHardwareConfigDriver</string>
<key>HDAConfigDefault</key>
<array>
<dict>
<key>CodecID</key>
<integer>283902595</integer>
<key>ConfigData</key>
<data>
AYccMAGHHRABhx6BAYcfAAGXHEABlx0AAZce
oAGXH5ABtxwQAbcdAAG3HhMBtx+QAdccIAHX
HZAB1x4HAdcfQAHnHFAB5x0AAeceQwHnH5AC
FxxgAhcdEAIXHiECFx8A
</data>
<key>FuncGroup</key>
<integer>1</integer>
<key>LayoutID</key>
<integer>1</integer>
</dict>
</array>

• WiFi (BCM94352HMB)

to detect the card as Apple card instead of third party wireless.

sudo perl -pi -e 's|\x30\x6B\x10\x00\x00\x75\x0D|\x30\x6B\x10\x00\x00\x74\x0D|g' /System/Library/Extensions/IO80211Family.kext/Contents/PlugIns/AirPortBrcm4360.kext/Contents/MacOS/AirPortBrcm4360

activation of a range of 5GHz on Broadcom BCM94352HMB. (Changing the Country code from XT to US)

sudo perl -pi -e 's|x01x58x54|x01x58x58|g' /System/Library/Extensions/IO80211Family.kext/Contents/PlugIns/AirPortBrcm4360.kext/Contents/MacOS/AirPortBrcm4360

---
