C言語／C++/dx9sample2 - Sample is best!

開発環境	Microsoft Visual Studio Community 2019
実行環境	Microsoft Windows 10 Home (64bit)
プロジェクト テンプレート	C++ 空のプロジェクト

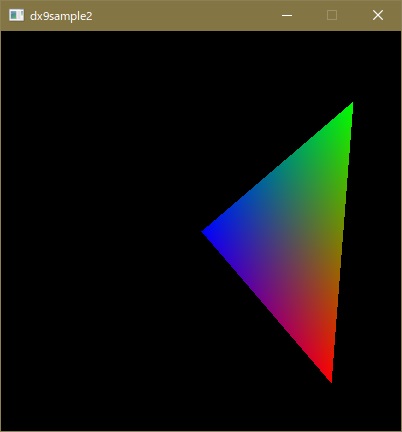

プロジェクト名	dx9sample2

参考
HLSLによる極短レンダリング：サンプルプログラム

DirectX Software Development Kit (DXSDK_Jun10)をインストールする。
Download DirectX Software Development Kit from Official Microsoft Download Center

プロジェクト構成プロパティ
VC++ ディレクトリに以下のパスを追加する。

インクルード ディレクトリ	C:\Program Files (x86)\Microsoft DirectX SDK (June 2010)\Include
ライブラリディレクトリ	C:\Program Files (x86)\Microsoft DirectX SDK (June 2010)\Lib\x86

dx9sample2.cpp

#pragma comment(lib, "d3d9")
#pragma comment(lib, "d3dx9")

#include <Windows.h>
#include <d3d9.h>
#include <d3dx9.h>

#define SAFE_RELEASE(p) if(p){p->Release();p=NULL;}

struct CUSTOM_VTX {
	float x, y, z;
	DWORD color;
};
#define CUSTOM_FVF (D3DFVF_XYZ | D3DFVF_DIFFUSE)

// 外部変数
LPDIRECT3D9 pD3D;
LPDIRECT3DDEVICE9 pD3DDev;
LPD3DXEFFECT pEffect;
IDirect3DVertexBuffer9* pVertex;
IDirect3DVertexDeclaration9* pDecl;

float t = 0;

// 関数プロトタイプ宣言
LRESULT CALLBACK WndProc(HWND hWnd, UINT msg, WPARAM wParam, LPARAM lParam);
HWND InitWindow(HINSTANCE hInstance, int nCmdShow);
HRESULT InitD3D(HWND hWnd);
void Cleanup();
void Render();

int WINAPI wWinMain(HINSTANCE hInstance, HINSTANCE, LPWSTR, int nCmdShow)
{
	HWND hWnd = InitWindow(hInstance, nCmdShow);
	if (!hWnd) return -1;

	HRESULT hr = InitD3D(hWnd);
	if (FAILED(hr)) {
		Cleanup();
		return -1;
	}

	ShowWindow(hWnd, nCmdShow);

	MSG msg = { 0 };
	while (msg.message != WM_QUIT) {
		if (PeekMessage(&msg, NULL, 0, 0, PM_REMOVE)) {
			TranslateMessage(&msg);
			DispatchMessage(&msg);
		}
		else {
			Render();
		}
	}
	Cleanup();
	return msg.wParam;
}

LRESULT CALLBACK WndProc(HWND hWnd, UINT msg, WPARAM wParam, LPARAM lParam)
{
	switch (msg) {
	case WM_DESTROY:
		PostQuitMessage(0);
		return 0;
	}
	return DefWindowProc(hWnd, msg, wParam, lParam);
}

HWND InitWindow(HINSTANCE hInstance, int nCmdShow)
{
	WNDCLASSEX wc = { sizeof WNDCLASSEX };
	wc.style = CS_HREDRAW | CS_VREDRAW;
	wc.lpfnWndProc = WndProc;
	wc.hInstance = hInstance;
	wc.hbrBackground = HBRUSH(COLOR_WINDOW + 1);
	wc.lpszClassName = L"dx9sample2";
	if (!RegisterClassEx(&wc)) return NULL;

	DWORD deStyle = WS_OVERLAPPEDWINDOW ^ WS_MAXIMIZEBOX ^ WS_THICKFRAME;
	RECT rc = { 0, 0, 400, 400 };
	AdjustWindowRect(&rc, deStyle, FALSE);

	HWND hWnd = CreateWindow(
		wc.lpszClassName, L"dx9sample2", deStyle,
		CW_USEDEFAULT, 0, rc.right - rc.left, rc.bottom - rc.top,
		NULL, NULL, hInstance, NULL);
	return hWnd;
}

HRESULT InitD3D(HWND hWnd)
{
	HRESULT hr;

	pD3D = Direct3DCreate9(D3D_SDK_VERSION);
	if (!pD3D) return E_FAIL;

	D3DPRESENT_PARAMETERS d3dpp = { 0 };
	d3dpp.BackBufferFormat = D3DFMT_UNKNOWN;
	d3dpp.MultiSampleType = D3DMULTISAMPLE_NONE;
	d3dpp.SwapEffect = D3DSWAPEFFECT_DISCARD;
	d3dpp.Windowed = TRUE;
	d3dpp.AutoDepthStencilFormat = D3DFMT_UNKNOWN;
	d3dpp.PresentationInterval = D3DPRESENT_INTERVAL_DEFAULT;

	hr = pD3D->CreateDevice(
		D3DADAPTER_DEFAULT,
		D3DDEVTYPE_HAL,
		hWnd,
		D3DCREATE_HARDWARE_VERTEXPROCESSING,
		&d3dpp,
		&pD3DDev);
	if (FAILED(hr)) return hr;

	// ファイルからシェーダを作成
	LPD3DXBUFFER pError;
	hr = D3DXCreateEffectFromFile(
		pD3DDev,
		L"effect.fx",
		NULL, NULL, D3DXSHADER_DEBUG, 0,
		&pEffect, &pError);
	if (FAILED(hr)) {
		if (pError) {
			OutputDebugStringA((LPCSTR)pError->GetBufferPointer());
		}
		SAFE_RELEASE(pError);
		return hr;
	}
	SAFE_RELEASE(pError);

	// x, y, z, ARGB
	CUSTOM_VTX vtx[] = {
		{ 0, 0, 1, 0xff0000ff },
		{ 0, 1, 0, 0xff00ff00 },
		{ 1, 0, 0, 0xffff0000 },
	};

	// 頂点バッファの作成
	hr = pD3DDev->CreateVertexBuffer(
		sizeof vtx,
		D3DUSAGE_WRITEONLY,
		CUSTOM_FVF,
		D3DPOOL_MANAGED,
		&pVertex,
		NULL);

	void* pData;
	hr = pVertex->Lock(0, 0, &pData, 0);
	memcpy(pData, vtx, sizeof vtx);
	hr = pVertex->Unlock();

	// 頂点宣言の作成
	D3DVERTEXELEMENT9 ve[] = {
		{ 0, 0, D3DDECLTYPE_FLOAT3, D3DDECLMETHOD_DEFAULT, D3DDECLUSAGE_POSITION, 0 },
		{ 0, 12, D3DDECLTYPE_D3DCOLOR, D3DDECLMETHOD_DEFAULT, D3DDECLUSAGE_COLOR, 0 },
		D3DDECL_END()
	};
	hr = pD3DDev->CreateVertexDeclaration(ve, &pDecl);

	return S_OK;
}

void Cleanup()
{
	SAFE_RELEASE(pDecl);
	SAFE_RELEASE(pVertex);
	SAFE_RELEASE(pEffect);
	SAFE_RELEASE(pD3DDev);
	SAFE_RELEASE(pD3D);
}

void Render()
{
	pD3DDev->Clear(0, NULL, D3DCLEAR_TARGET, D3DCOLOR_XRGB(0, 0, 0), 1, 0);
	pD3DDev->BeginScene();

	D3DXMATRIX mat;
	D3DXMatrixRotationZ(&mat, t);
	pEffect->SetMatrix("mat", &mat);
	t += 0.01f;

	pEffect->SetTechnique("T0");

	UINT pass;
	pEffect->Begin(&pass, 0);
	pEffect->BeginPass(0);

	pD3DDev->SetStreamSource(0, pVertex, 0, sizeof CUSTOM_VTX);
	pD3DDev->SetVertexDeclaration(pDecl);
	pD3DDev->DrawPrimitive(D3DPT_TRIANGLELIST, 0, 1);

	pEffect->EndPass();

	pD3DDev->EndScene();
	pD3DDev->Present(NULL, NULL, NULL, NULL);
}


effect.fx

struct VS_INPUT
{
	float4 pos : POSITION;
	float4 color : COLOR;
};

struct VS_OUTPUT
{
	float4 pos : POSITION;
	float4 color : COLOR;
};

// constant
float4x4 mat;

VS_OUTPUT VS(VS_INPUT input)
{
	VS_OUTPUT output;

	//output.pos = input.pos;
	output.pos = mul(input.pos, mat);
	output.color = input.color;
	return output;
}

float4 PS(float4 color : COLOR) : COLOR
{
	return color;
}

technique T0
{
	pass P0
	{
		VertexShader = compile vs_2_0 VS();
		PixelShader = compile ps_2_0 PS();
	}
}
