20100429 OSPFv3 stub area
最終更新：
it_certification
-
view
目的
- OSPFv3のLSAについてまとめます。
- OSPFv3のSTUB, NSSAの設定方法について確認します。
構成
- 設定概要
- OPSFv3によってルーティングします。
- 各ルータはconnectedをOSPFにredistributeします。

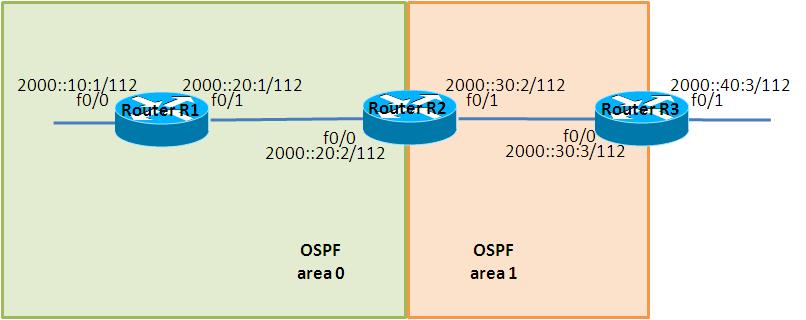

- 構成図
- netファイル
#ghostios = True #sparsemem = True model = 3660 [localhost] [[3660]] image = C:\Program Files\Dynamips\images\c3660-ik9o3s-mz.124-6.T.bin ram = 256 [[ROUTER R1]] f0/0 = R2 f0/1 [[ROUTER R2]] f0/0 = R3 f0/1 [[ROUTER R3]]
- 初期設定 R1
! version 12.4 service timestamps debug datetime msec service timestamps log datetime msec no service password-encryption ! hostname R1 ! boot-start-marker boot-end-marker ! ! no aaa new-model ! resource policy ! memory-size iomem 5 ! ! ip cef ! ! ! ipv6 unicast-routing ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! interface Loopback0 ip address 1.1.1.1 255.255.255.255 ipv6 address 2000::1:1/128 ! interface FastEthernet0/0 no ip address duplex auto speed auto ipv6 address 2000::20:1/112 ipv6 enable ipv6 ospf 1 area 0 ! interface FastEthernet0/1 no ip address duplex auto speed auto ipv6 address 2000::10:1/112 ipv6 enable ipv6 ospf 1 area 0 no keepalive ! ip http server no ip http secure-server ! ! ! ipv6 router ospf 1 log-adjacency-changes redistribute connected ! ! ! ! control-plane ! ! ! ! ! ! ! ! ! line con 0 line aux 0 line vty 0 4 ! ! end
- 初期設定 R2
! version 12.4 service timestamps debug datetime msec service timestamps log datetime msec no service password-encryption ! hostname R2 ! boot-start-marker boot-end-marker ! ! no aaa new-model ! resource policy ! memory-size iomem 5 ! ! ip cef ! ! ! ipv6 unicast-routing ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! interface Loopback0 ip address 2.2.2.2 255.255.255.255 ipv6 address 2000::2:2/128 ! interface FastEthernet0/0 no ip address duplex auto speed auto ipv6 address 2000::30:2/112 ipv6 enable ipv6 ospf 1 area 1 ! interface FastEthernet0/1 no ip address duplex auto speed auto ipv6 address 2000::20:2/112 ipv6 enable ipv6 ospf 1 area 0 ! ip http server no ip http secure-server ! ! ! ipv6 router ospf 1 log-adjacency-changes redistribute connected ! ! ! ! control-plane ! ! ! ! ! ! ! ! ! line con 0 line aux 0 line vty 0 4 ! ! end
- 初期設定 R3
! version 12.4 service timestamps debug datetime msec service timestamps log datetime msec no service password-encryption ! hostname R3 ! boot-start-marker boot-end-marker ! ! no aaa new-model ! resource policy ! memory-size iomem 5 ! ! ip cef ! ! ! ipv6 unicast-routing ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! interface Loopback0 ip address 3.3.3.3 255.255.255.255 ipv6 address 2000::3:3/128 ! interface FastEthernet0/0 no ip address duplex auto speed auto ipv6 address 2000::40:3/112 no keepalive ! interface FastEthernet0/1 no ip address duplex auto speed auto ipv6 address 2000::30:3/112 ipv6 enable ipv6 ospf 1 area 1 ! ip http server no ip http secure-server ! ! ! ipv6 router ospf 1 log-adjacency-changes redistribute connected ! ! ! ! control-plane ! ! ! ! ! ! ! ! ! line con 0 line aux 0 line vty 0 4 ! ! end
事前学習 LSA type
- Areaの定義
OSPFv3 LSA typeについてまとめる前に、Areaの意味について確認します。Cisco Pressの書物やCCOでは、以下の意味でAreaという言葉を用いているようです。IntraとInterが紛らわしいので、しっかり確認しておきましょう。
| 用語 | 意味 |
| Intra-Area | OSPFドメイン内のArea番号が一致する範囲 |
| Inter-Area | OPSFドメイン内のArea番号が一致しない範囲 |
| External-Area | OSPFドメイン外 |
- LSA type
ipv4と比較して、LSA type1, 2に一部変更があります。type1,2の一部がtype8,9に移行しました。それ以外は、ipv4と同じ構成になっています。
| LSA type | name | OSPFとの対応 | Routing table | show ipv6 ospf database |
| 0x2001 | Router LSA | LSA type1に相当（但し、一部Link LSAに移行） | O | Router Link States |
| 0x2002 | Network LSA | LSA type2に相当（但し、一部Intra-Area Prefix LSAに移行） | O | Net Link States |
| 0x2008 | Link LSA | LSA type1の一部 | O | Link (Type-8) Link States |
| 0x2009 | Intra-Area Prefix LSA | LSA type2の一部 | O | Intra Area Prefix Link States |
| 0x2003 | Inter-Area Prefix LSA | LSA Type 3 | OI | Inter Area Prefix Link States |
| 0x2004 | Inter-Area Router LSA | LSA Type 4 | OI | Inter Area Router Link States |
| 0x2005 | AS-Eternal LSA | LSA Type 5 | OE1, OE2 | Type-5 AS External Link States |
| 0x2007 | Type-7 LSA | LSA Type 7 | ON1, ON2 | Type-7 AS External Link States |
検証1 初期設定の確認
初期設定時のルーティングテーブルと LSA databaseを確認します。LSA databaseは読むのに時間がかかると思いますが、よく読むと、Intra-Area以外はipv4と全く同じ表記である事が分かります。また、Intra-Areaに着目しても、一部がtype8,9に移行したと思えば、理解する事ができると思います。
R1#show ipv6 route
IPv6 Routing Table - 11 entries
Codes: C - Connected, L - Local, S - Static, R - RIP, B - BGP
U - Per-user Static route
I1 - ISIS L1, I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary
O - OSPF intra, OI - OSPF inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
D - EIGRP, EX - EIGRP external
LC 2000::1:1/128 [0/0]
via ::, Loopback0
OE2 2000::2:2/128 [110/20]
via FE80::CE01:8FF:FE80:1, FastEthernet0/0
OE2 2000::3:3/128 [110/20]
via FE80::CE01:8FF:FE80:1, FastEthernet0/0
C 2000::10:0/112 [0/0]
via ::, FastEthernet0/1
L 2000::10:1/128 [0/0]
via ::, FastEthernet0/1
C 2000::20:0/112 [0/0]
via ::, FastEthernet0/0
L 2000::20:1/128 [0/0]
via ::, FastEthernet0/0
OI 2000::30:0/112 [110/2]
via FE80::CE01:8FF:FE80:1, FastEthernet0/0
OE2 2000::40:0/112 [110/20]
via FE80::CE01:8FF:FE80:1, FastEthernet0/0
L FE80::/10 [0/0]
via ::, Null0
L FF00::/8 [0/0]
via ::, Null0
R1#
R1#
R1#show ipv6 ospf database
OSPFv3 Router with ID (1.1.1.1) (Process ID 1)
Router Link States (Area 0)
ADV Router Age Seq# Fragment ID Link count Bits
1.1.1.1 33 0x80000009 0 1 E
2.2.2.2 438 0x80000005 0 1 EB
Net Link States (Area 0)
ADV Router Age Seq# Link ID Rtr count
2.2.2.2 472 0x80000001 5 2
Inter Area Prefix Link States (Area 0)
ADV Router Age Seq# Prefix
2.2.2.2 466 0x80000001 2000::30:0/112
Inter Area Router Link States (Area 0)
ADV Router Age Seq# Link ID Dest RtrID
2.2.2.2 262 0x80000001 50529027 3.3.3.3
Link (Type-8) Link States (Area 0)
ADV Router Age Seq# Link ID Interface
1.1.1.1 34 0x80000001 5 Fa0/1
1.1.1.1 533 0x80000002 4 Fa0/0
2.2.2.2 512 0x80000001 5 Fa0/0
Intra Area Prefix Link States (Area 0)
ADV Router Age Seq# Link ID Ref-lstype Ref-LSID
1.1.1.1 34 0x80000001 0 0x2001 0
2.2.2.2 473 0x80000001 1005 0x2002 5
Type-5 AS External Link States
ADV Router Age Seq# Prefix
1.1.1.1 658 0x80000001 2000::1:1/128
2.2.2.2 438 0x80000001 2000::2:2/128
3.3.3.3 268 0x80000001 2000::3:3/128
3.3.3.3 268 0x80000001 2000::40:0/112
R1#
R2#show ipv6 route
IPv6 Routing Table - 11 entries
Codes: C - Connected, L - Local, S - Static, R - RIP, B - BGP
U - Per-user Static route
I1 - ISIS L1, I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary
O - OSPF intra, OI - OSPF inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
D - EIGRP, EX - EIGRP external
OE2 2000::1:1/128 [110/20]
via FE80::CE00:8FF:FE80:0, FastEthernet0/1
LC 2000::2:2/128 [0/0]
via ::, Loopback0
OE2 2000::3:3/128 [110/20]
via FE80::CE02:8FF:FE80:1, FastEthernet0/0
O 2000::10:0/112 [110/2]
via FE80::CE00:8FF:FE80:0, FastEthernet0/1
C 2000::20:0/112 [0/0]
via ::, FastEthernet0/1
L 2000::20:2/128 [0/0]
via ::, FastEthernet0/1
C 2000::30:0/112 [0/0]
via ::, FastEthernet0/0
L 2000::30:2/128 [0/0]
via ::, FastEthernet0/0
OE2 2000::40:0/112 [110/20]
via FE80::CE02:8FF:FE80:1, FastEthernet0/0
L FE80::/10 [0/0]
via ::, Null0
L FF00::/8 [0/0]
via ::, Null0
R2#
R2#
R2#show ipv6 ospf database
OSPFv3 Router with ID (2.2.2.2) (Process ID 1)
Router Link States (Area 0)
ADV Router Age Seq# Fragment ID Link count Bits
1.1.1.1 40 0x8000000A 0 1 E
2.2.2.2 484 0x80000005 0 1 EB
Net Link States (Area 0)
ADV Router Age Seq# Link ID Rtr count
2.2.2.2 518 0x80000001 5 2
Inter Area Prefix Link States (Area 0)
ADV Router Age Seq# Prefix
2.2.2.2 512 0x80000001 2000::30:0/112
Inter Area Router Link States (Area 0)
ADV Router Age Seq# Link ID Dest RtrID
2.2.2.2 307 0x80000001 50529027 3.3.3.3
Link (Type-8) Link States (Area 0)
ADV Router Age Seq# Link ID Interface
1.1.1.1 580 0x80000002 4 Fa0/1
2.2.2.2 559 0x80000001 5 Fa0/1
Intra Area Prefix Link States (Area 0)
ADV Router Age Seq# Link ID Ref-lstype Ref-LSID
1.1.1.1 81 0x80000001 0 0x2001 0
2.2.2.2 519 0x80000001 1005 0x2002 5
Router Link States (Area 1)
ADV Router Age Seq# Fragment ID Link count Bits
2.2.2.2 333 0x80000005 0 1 EB
3.3.3.3 314 0x80000004 0 1 E
Net Link States (Area 1)
ADV Router Age Seq# Link ID Rtr count
2.2.2.2 342 0x80000001 4 2
Inter Area Prefix Link States (Area 1)
ADV Router Age Seq# Prefix
2.2.2.2 522 0x80000001 2000::20:0/112
2.2.2.2 75 0x80000001 2000::10:0/112
Inter Area Router Link States (Area 1)
ADV Router Age Seq# Link ID Dest RtrID
2.2.2.2 513 0x80000001 16843009 1.1.1.1
Link (Type-8) Link States (Area 1)
ADV Router Age Seq# Link ID Interface
2.2.2.2 522 0x80000001 4 Fa0/0
3.3.3.3 344 0x80000001 5 Fa0/0
Intra Area Prefix Link States (Area 1)
ADV Router Age Seq# Link ID Ref-lstype Ref-LSID
2.2.2.2 342 0x80000001 1004 0x2002 4
Type-5 AS External Link States
ADV Router Age Seq# Prefix
1.1.1.1 705 0x80000001 2000::1:1/128
2.2.2.2 485 0x80000001 2000::2:2/128
3.3.3.3 314 0x80000001 2000::3:3/128
3.3.3.3 314 0x80000001 2000::40:0/112
R2#
R3#show ipv6 route
IPv6 Routing Table - 11 entries
Codes: C - Connected, L - Local, S - Static, R - RIP, B - BGP
U - Per-user Static route
I1 - ISIS L1, I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary
O - OSPF intra, OI - OSPF inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
D - EIGRP, EX - EIGRP external
OE2 2000::1:1/128 [110/20]
via FE80::CE01:8FF:FE80:0, FastEthernet0/1
OE2 2000::2:2/128 [110/20]
via FE80::CE01:8FF:FE80:0, FastEthernet0/1
LC 2000::3:3/128 [0/0]
via ::, Loopback0
OI 2000::10:0/112 [110/3]
via FE80::CE01:8FF:FE80:0, FastEthernet0/1
OI 2000::20:0/112 [110/2]
via FE80::CE01:8FF:FE80:0, FastEthernet0/1
C 2000::30:0/112 [0/0]
via ::, FastEthernet0/1
L 2000::30:3/128 [0/0]
via ::, FastEthernet0/1
C 2000::40:0/112 [0/0]
via ::, FastEthernet0/0
L 2000::40:3/128 [0/0]
via ::, FastEthernet0/0
L FE80::/10 [0/0]
via ::, Null0
L FF00::/8 [0/0]
via ::, Null0
R3#
R3#
R3#show ipv6 ospf database
OSPFv3 Router with ID (3.3.3.3) (Process ID 1)
Router Link States (Area 1)
ADV Router Age Seq# Fragment ID Link count Bits
2.2.2.2 393 0x80000005 0 1 EB
3.3.3.3 372 0x80000004 0 1 E
Net Link States (Area 1)
ADV Router Age Seq# Link ID Rtr count
2.2.2.2 402 0x80000001 4 2
Inter Area Prefix Link States (Area 1)
ADV Router Age Seq# Prefix
2.2.2.2 582 0x80000001 2000::20:0/112
2.2.2.2 135 0x80000001 2000::10:0/112
Inter Area Router Link States (Area 1)
ADV Router Age Seq# Link ID Dest RtrID
2.2.2.2 572 0x80000001 16843009 1.1.1.1
Link (Type-8) Link States (Area 1)
ADV Router Age Seq# Link ID Interface
2.2.2.2 582 0x80000001 4 Fa0/1
3.3.3.3 402 0x80000001 5 Fa0/1
Intra Area Prefix Link States (Area 1)
ADV Router Age Seq# Link ID Ref-lstype Ref-LSID
2.2.2.2 402 0x80000001 1004 0x2002 4
Type-5 AS External Link States
ADV Router Age Seq# Prefix
1.1.1.1 765 0x80000001 2000::1:1/128
2.2.2.2 544 0x80000001 2000::2:2/128
3.3.3.3 372 0x80000001 2000::3:3/128
3.3.3.3 372 0x80000001 2000::40:0/112
R3#
検証2 totally stubの設定
- tottaly stubの設定
tottaly stubの設定を以下の要領で行います。しかし、R3に設定を投入する事ができませんでした。
「ASBRにstubの設定はできません」とエラーが出力されます。IPv4の時は、ASBRであろうがお構いなしにSTUBの設定ができました（「トップページ/動作検証 ネットワーク系/20100421 OSPF stub area」を参照）が、IPv6ではちゃんとエラーメッセージを出力してくれるようです。ちょっと、お利口になったようです。
「ASBRにstubの設定はできません」とエラーが出力されます。IPv4の時は、ASBRであろうがお構いなしにSTUBの設定ができました（「トップページ/動作検証 ネットワーク系/20100421 OSPF stub area」を参照）が、IPv6ではちゃんとエラーメッセージを出力してくれるようです。ちょっと、お利口になったようです。
R2(config)#ipv6 router ospf 1 R2(config-rtr)#area 1 stub no-summary R2(config-rtr)# *Mar 1 00:21:56.119: %OSPFv3-5-ADJCHG: Process 1, Nbr 3.3.3.3 on FastEthernet0/0 from FULL to DOWN, Neighbor Down: Adjacency forced to reset *Mar 1 00:22:38.791: %OSPFv3-5-ADJCHG: Process 1, Nbr 3.3.3.3 on FastEthernet0/0 from DOWN to DOWN, Neighbor Down: Dead timer expired R3(config)#ipv6 router ospf 1 R3(config-rtr)#area 1 stub OSPFv3: Stub command is invalid when it is ASBR
- tottaly stubの設定削除
tottaly stubの設定を削除します。
R2(config)#ipv6 router ospf 1 R2(config-rtr)#no area 1 stub no-summary
検証3 totally nssaの設定
- totally nssaの設定
以下の要領でtotally nssaの設定を行います。
R2(config)#ipv6 router ospf 1 R2(config-rtr)#area 1 nssa no-summary R3(config)#ipv6 router ospf 1 R3(config-rtr)#area 1 nssa
- ルーティングテーブルとLSAの確認
ルーティングテーブルとLSA databaseを確認します。IPv4と同様に、R3にデフォルトルートが通知されている事やR3からR2へType 7のLSAが送信されている事が確認できると思います。
R1#show ipv6 route
IPv6 Routing Table - 11 entries
Codes: C - Connected, L - Local, S - Static, R - RIP, B - BGP
U - Per-user Static route
I1 - ISIS L1, I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary
O - OSPF intra, OI - OSPF inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
D - EIGRP, EX - EIGRP external
LC 2000::1:1/128 [0/0]
via ::, Loopback0
OE2 2000::2:2/128 [110/20]
via FE80::CE01:8FF:FE80:1, FastEthernet0/0
OE2 2000::3:3/128 [110/20]
via FE80::CE01:8FF:FE80:1, FastEthernet0/0
C 2000::10:0/112 [0/0]
via ::, FastEthernet0/1
L 2000::10:1/128 [0/0]
via ::, FastEthernet0/1
C 2000::20:0/112 [0/0]
via ::, FastEthernet0/0
L 2000::20:1/128 [0/0]
via ::, FastEthernet0/0
OI 2000::30:0/112 [110/2]
via FE80::CE01:8FF:FE80:1, FastEthernet0/0
OE2 2000::40:0/112 [110/20]
via FE80::CE01:8FF:FE80:1, FastEthernet0/0
L FE80::/10 [0/0]
via ::, Null0
L FF00::/8 [0/0]
via ::, Null0
R1#
R1#
R1#show ipv6 ospf database
OSPFv3 Router with ID (1.1.1.1) (Process ID 1)
Router Link States (Area 0)
ADV Router Age Seq# Fragment ID Link count Bits
1.1.1.1 702 0x8000000A 0 1 E
2.2.2.2 1148 0x80000005 0 1 EB
Net Link States (Area 0)
ADV Router Age Seq# Link ID Rtr count
2.2.2.2 1182 0x80000001 5 2
Inter Area Prefix Link States (Area 0)
ADV Router Age Seq# Prefix
2.2.2.2 22 0x80000001 2000::30:0/112
Link (Type-8) Link States (Area 0)
ADV Router Age Seq# Link ID Interface
1.1.1.1 742 0x80000001 5 Fa0/1
1.1.1.1 1242 0x80000002 4 Fa0/0
2.2.2.2 1222 0x80000001 5 Fa0/0
Intra Area Prefix Link States (Area 0)
ADV Router Age Seq# Link ID Ref-lstype Ref-LSID
1.1.1.1 743 0x80000001 0 0x2001 0
2.2.2.2 1183 0x80000001 1005 0x2002 5
Type-5 AS External Link States
ADV Router Age Seq# Prefix
1.1.1.1 1368 0x80000001 2000::1:1/128
2.2.2.2 1148 0x80000001 2000::2:2/128
2.2.2.2 22 0x80000001 2000::3:3/128
2.2.2.2 22 0x80000001 2000::40:0/112
R1#
R2#show ipv6 route
IPv6 Routing Table - 11 entries
Codes: C - Connected, L - Local, S - Static, R - RIP, B - BGP
U - Per-user Static route
I1 - ISIS L1, I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary
O - OSPF intra, OI - OSPF inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
D - EIGRP, EX - EIGRP external
OE2 2000::1:1/128 [110/20]
via FE80::CE00:8FF:FE80:0, FastEthernet0/1
LC 2000::2:2/128 [0/0]
via ::, Loopback0
ON2 2000::3:3/128 [110/20]
via FE80::CE02:8FF:FE80:1, FastEthernet0/0
O 2000::10:0/112 [110/2]
via FE80::CE00:8FF:FE80:0, FastEthernet0/1
C 2000::20:0/112 [0/0]
via ::, FastEthernet0/1
L 2000::20:2/128 [0/0]
via ::, FastEthernet0/1
C 2000::30:0/112 [0/0]
via ::, FastEthernet0/0
L 2000::30:2/128 [0/0]
via ::, FastEthernet0/0
ON2 2000::40:0/112 [110/20]
via FE80::CE02:8FF:FE80:1, FastEthernet0/0
L FE80::/10 [0/0]
via ::, Null0
L FF00::/8 [0/0]
via ::, Null0
R2#
R2#
R2#show ipv6 ospf database
OSPFv3 Router with ID (2.2.2.2) (Process ID 1)
Router Link States (Area 0)
ADV Router Age Seq# Fragment ID Link count Bits
1.1.1.1 730 0x8000000A 0 1 E
2.2.2.2 1173 0x80000005 0 1 EB
Net Link States (Area 0)
ADV Router Age Seq# Link ID Rtr count
2.2.2.2 1207 0x80000001 5 2
Inter Area Prefix Link States (Area 0)
ADV Router Age Seq# Prefix
2.2.2.2 47 0x80000001 2000::30:0/112
Link (Type-8) Link States (Area 0)
ADV Router Age Seq# Link ID Interface
1.1.1.1 1269 0x80000002 4 Fa0/1
2.2.2.2 1247 0x80000001 5 Fa0/1
Intra Area Prefix Link States (Area 0)
ADV Router Age Seq# Link ID Ref-lstype Ref-LSID
1.1.1.1 770 0x80000001 0 0x2001 0
2.2.2.2 1208 0x80000001 1005 0x2002 5
Router Link States (Area 1)
ADV Router Age Seq# Fragment ID Link count Bits
2.2.2.2 57 0x8000000C 0 1 EB
3.3.3.3 58 0x80000009 0 1 E
Net Link States (Area 1)
ADV Router Age Seq# Link ID Rtr count
3.3.3.3 58 0x80000003 5 2
Inter Area Prefix Link States (Area 1)
ADV Router Age Seq# Prefix
2.2.2.2 78 0x80000001 ::/0
Type-7 AS External Link States (Area 1)
ADV Router Age Seq# Prefix
2.2.2.2 77 0x80000001 2000::2:2/128
3.3.3.3 63 0x80000001 2000::3:3/128
3.3.3.3 63 0x80000001 2000::40:0/112
Link (Type-8) Link States (Area 1)
ADV Router Age Seq# Link ID Interface
2.2.2.2 1212 0x80000001 4 Fa0/0
3.3.3.3 1033 0x80000001 5 Fa0/0
Intra Area Prefix Link States (Area 1)
ADV Router Age Seq# Link ID Ref-lstype Ref-LSID
3.3.3.3 58 0x80000003 1005 0x2002 5
Type-5 AS External Link States
ADV Router Age Seq# Prefix
1.1.1.1 1395 0x80000001 2000::1:1/128
2.2.2.2 1174 0x80000001 2000::2:2/128
2.2.2.2 48 0x80000001 2000::3:3/128
2.2.2.2 48 0x80000001 2000::40:0/112
R2#
R3#show ipv6 route
IPv6 Routing Table - 9 entries
Codes: C - Connected, L - Local, S - Static, R - RIP, B - BGP
U - Per-user Static route
I1 - ISIS L1, I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary
O - OSPF intra, OI - OSPF inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
D - EIGRP, EX - EIGRP external
OI ::/0 [110/2]
via FE80::CE01:8FF:FE80:0, FastEthernet0/1
ON2 2000::2:2/128 [110/20]
via FE80::CE01:8FF:FE80:0, FastEthernet0/1
LC 2000::3:3/128 [0/0]
via ::, Loopback0
C 2000::30:0/112 [0/0]
via ::, FastEthernet0/1
L 2000::30:3/128 [0/0]
via ::, FastEthernet0/1
C 2000::40:0/112 [0/0]
via ::, FastEthernet0/0
L 2000::40:3/128 [0/0]
via ::, FastEthernet0/0
L FE80::/10 [0/0]
via ::, Null0
L FF00::/8 [0/0]
via ::, Null0
R3#
R3#
R3#show ipv6 ospf database
OSPFv3 Router with ID (3.3.3.3) (Process ID 1)
Router Link States (Area 1)
ADV Router Age Seq# Fragment ID Link count Bits
2.2.2.2 77 0x8000000C 0 1 EB
3.3.3.3 76 0x80000009 0 1 E
Net Link States (Area 1)
ADV Router Age Seq# Link ID Rtr count
3.3.3.3 76 0x80000003 5 2
Inter Area Prefix Link States (Area 1)
ADV Router Age Seq# Prefix
2.2.2.2 98 0x80000001 ::/0
Type-7 AS External Link States (Area 1)
ADV Router Age Seq# Prefix
2.2.2.2 97 0x80000001 2000::2:2/128
3.3.3.3 81 0x80000001 2000::3:3/128
3.3.3.3 81 0x80000001 2000::40:0/112
Link (Type-8) Link States (Area 1)
ADV Router Age Seq# Link ID Interface
2.2.2.2 1232 0x80000001 4 Fa0/1
3.3.3.3 1052 0x80000001 5 Fa0/1
Intra Area Prefix Link States (Area 1)
ADV Router Age Seq# Link ID Ref-lstype Ref-LSID
3.3.3.3 77 0x80000003 1005 0x2002 5
R3#
添付ファイル
