Cap Crimper plier head

---

12

Crimpers

• 通常モデル

キャップクリンパー機能を実装している通常モデルは以下の通りである。(発売年順)

F	Charge XTi	18	2004 - 2008
F	Charge ALX	18	2006 -
F	Charge TTi	19	2006 -
H	Super Tool 300 EOD	19	2010 -
H	MUT EOD	15	2010 -

• CCモデル

通常モデルでキャップクリンパー機能をもたないが、特別仕様として実装しているモデルが存在する。
これらをCCモデル(キャップクリンパー付属モデル)と呼ぶ。
現状、確認されているモデルは以下の通り。

	BO = Black Oxide finish	SS = Stainless Steel
Blast	BO	SS
Fuse	BO	SS
Kick	BO	SS
Wave	BO	SS
Core	BO	SS
Surge	BO
Supertool300	BO

---

参照リンク

---

• Leatherman Kick, Fuse, and Blast CC tool completion.:BO/SS/CCの区分は、このページから拝借。

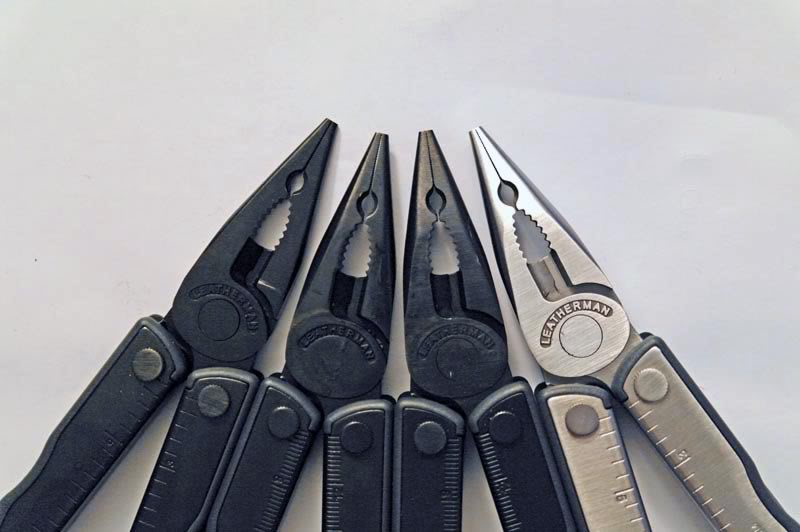

	From left to right: BO CC Kick, BO CC Fuse, BO CC Blast, CC Blast.

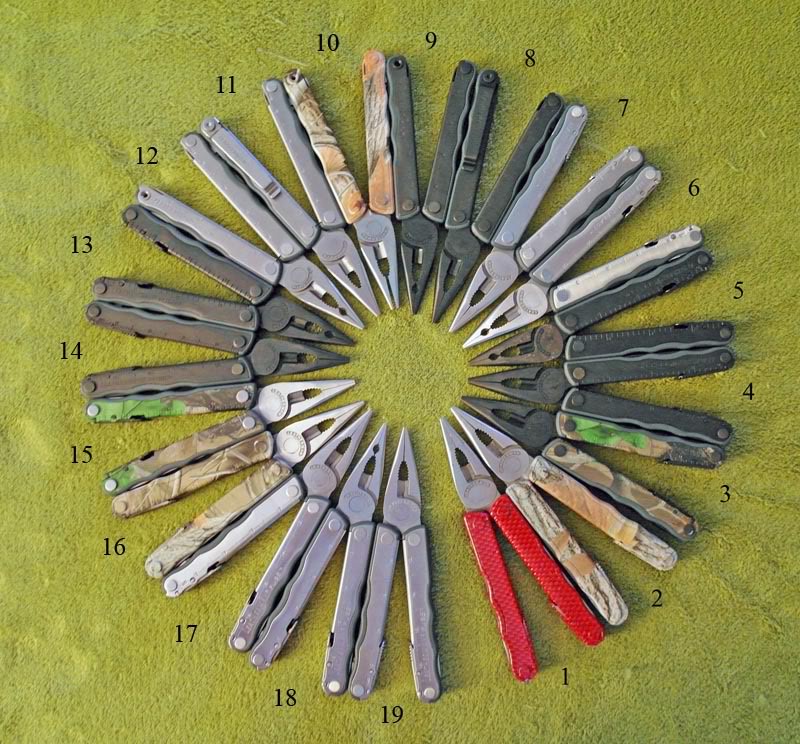

	Blast 01. Red carbon Fiber (Film dipped). 02. Camo (Film Dipped). 03. Camo with BO tools. 04. BO. 05. BO CC. 06. SS CC. 07. SS. Kick 08. BO with accessory clip. 09. BO CC. 10. Camo (Film Dipped). 11. SS with accessory clip. 12. SS CC. Fuse 13. BO CC. 14. BO. 15. Camo. 16. Camo (Film Dipped). 17. Knifeless. 18. SS CC. 19. SS.

• 公式サイト：leathermanlibrary.comやLTJにCCモデル各種の画像アリ

	サムネイル	ファイル名	サイズ	公式サイト	ミラー
WAVE SS CC		WAVE_FANNED_CC_copy.png	1.66 MB	leathermanlibrary.com	i.imgur
Wave BO CC		Wave_BO_CC_Open_copy.png	5.61 MB	leathermanlibrary.com	i.imgur
Blast BO CC		Blast_CC_Open.png	5.82 MB	leathermanlibrary.com	i.imgur
Core BO CC		1231922212.jpg	447 KB	LTJ	i.imgur
Surge BO CC		1231923220.jpg	376 KB	LTJ	i.imgur

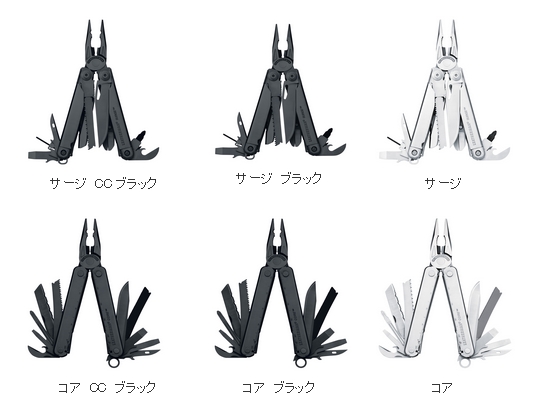

• LTJ - ミリタリー向け:サージCCブラック、コアCCブラック

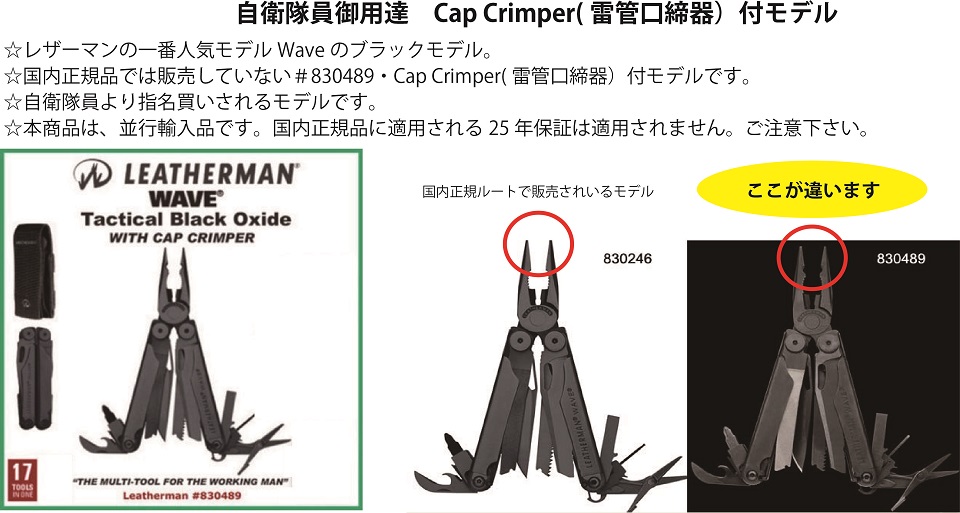

• ハイマウント - WAVE® BLACK:商品画像はCCモデル。(現物は不明)

• ダブルチェック・ネットショップ：Wave BO CC

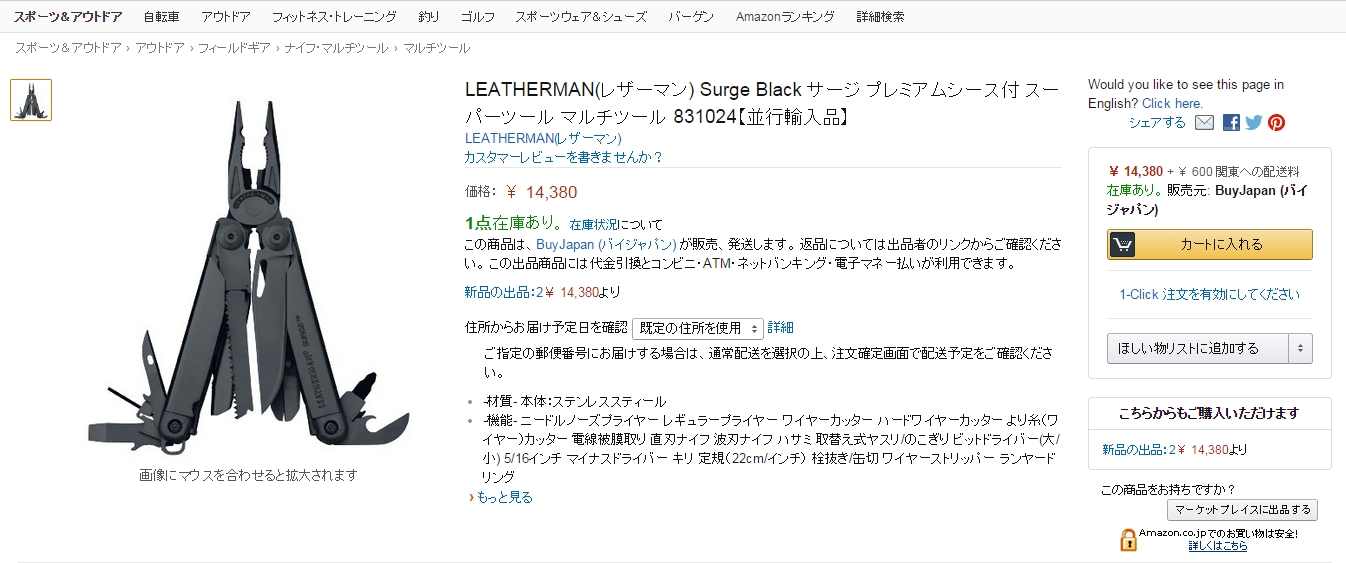

• Amazon.co.jp - Surge Black 831024：Surge BO CC

---

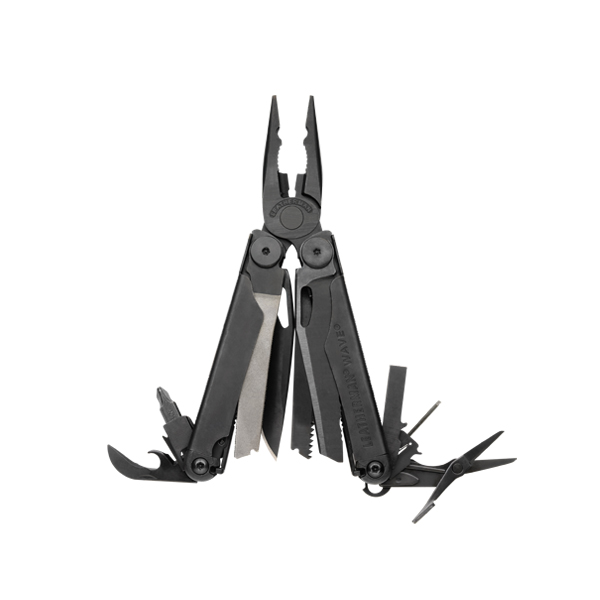

Wave with Cap Crimper

---

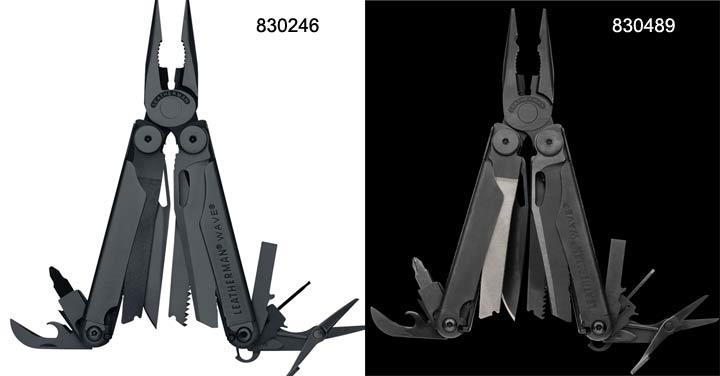

• EDCForums - Leatherman Wave 830246 or 830489? To crimp or not to crimp：Wave BO通常版は830246、Wave BO CCは830489

So I've narrowed my multi tool search down to the Leatherman wave in black oxide..... But then I noticed that it comes in two different versions. Version 830246 has a normal plier head and version 830489 has a cap crimper integrated into the plier head...

I suppose my questions are; does anyone actually use the cap crimpers? And how much does the missing metal affect the strength of the head?

• ArmyProperty.com - Leatherman Wave W/ Cap Crimper NSN ：STAINLESS STEELのCap Crimper付モデル

The most popular full-size Leatherman tool is now better than ever. Larger knives, stronger pliers, longer wire cutters and all-locking blades make the new Wave an essential piece of equipment for most any job or adventure. Add the Leatherman Bit Kit for maximum versatility. Leatherman 830489 Wave-Black Features:  Needlenose Pliers w/ Cap Crimper  Regular Pliers  Wire Cutters  Hard-Wire Cutters  Clip-Point Knife  Serrated Knife  Saw  Scissors  Wood/Metal File  Diamond-Coated File  Large Bit Driver  Small Bit Driver  Large Screwdriver  Ruler (8 inch/19 cm)  Bottle/Can Opener  Wire Stripper  Lanyard Attachment  Two Double-Ended Bits Leatherman 830489 Wave-Black Specifications: * Length: 4 in. / 10 cm closed - 6.3 in / 16 cm open * Weight: 8.5 ounces / 241 grams * Materials: 100% stainless steel (Optimum grade hardness for each tool/blade) * Included Screw Bits:  Phillips and flat tip eyeglass screwdriver  Phillips #1-2 and screwdriver 3/16"

NSN	Make	Model	Description
5110-01-456-0578	Leatherman	Wave	With leather pouch
5110-01-541-1195	Leatherman	Wave Black Oxide with Cap Crimper Black Nylon Sheath Model 830489	ui ea black finish needle nose tool w'blasting cap crimper with nylon sheath
5110-01-541-1440	Leatherman	Wave/Cap Crimper/Leather	ui ea stainless finish needle nose tool w'blasting cap crimper with leather sheath
5110-01-541-1201	Leatherman	Wave/Cap Crimper/Nylon	ui ea stainless finish needle nose tool w'blasting cap crimper with nylon sheath
