Soltek EQ3401
| |
| Length(cm) |
33 |
| Width(cm) |
21.50 |
| Height(cm) |
20 |
| |
| FrontPanel |
Aluminum/Mirror/Spring Collection |
| 5.25inchBays |
2 |
| 3.5inchBays |
2(oneinternal) |
| FrontPanelI/O |
- 2 x USB 2.0/1.1 Ports.
- 1 x Mic-In Port.
- 1 x Line-Out Port.
- 1 x IEEE1394a Port.
- 1 x S/PDIF Out Port.
|
| BackPanelI/O |
- 1 x VGA Port.
- 2 x Serial Ports.
- 1 x Parallel Port.(viaoptionalcable)
- 1 x PS/2 Keyboard Port.
- 1 x PS/2 Mouse Port.
- 4 x USB 2.0/1.1 Ports.
- 1 x Fast Ethernet 10/100 LAN Port.
- 2 x IEEE1394 Ports.
- 1 x Line-In Port.
- 1 x Line-Out Port.
- 1 x Mic-In Port.
(If using 6-channel
Audio,youcanshareLine-In(Surround-out)
Blue,MIC-in(Center/SubWoofer-out)Pink)
|

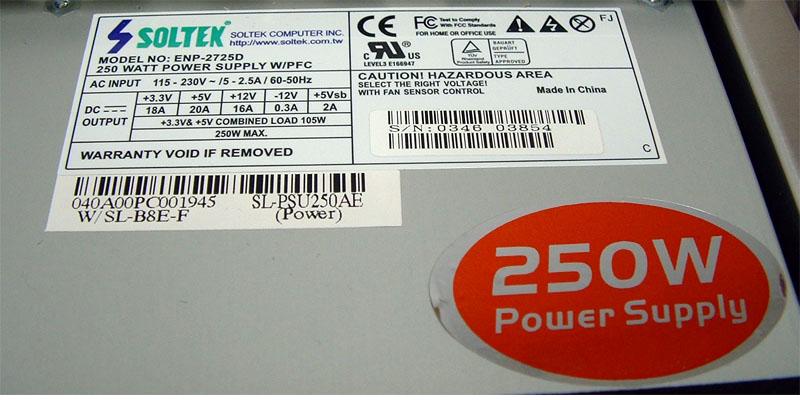

| PowerSupply |
250W(APFC) |
| OtherFeatures |
-- |
MAINBOARDS:SL-B8E-F
| |
| CHIPSETVENDOR: |
Intel |
| CHIPSET |
Intel865G+ICH5 |
| Processor: |
CPUSocket478Bonboard. |
| FrontSideBus: |
800/533/400MHzFront Side Bus. |
| MEMORY: |
- 2 x 184-pin DDR DIMM Sockets.
- Supporting
unregisterednon-ECCDDR400/333/266DRAM up to 2GB.
- SupportingDual-Channel.
|
| ExpansionSlots: |
- 1 x AGP 8X/4X Slot.
- 1 x PCI Slot.
|
| On-BoardEIDE: |
2xATA100/66/33IDE connectors supporting upto 4 IDE devices. |
| On-BoardSATA |
2xSerialATA connectors supporting 2 SerialATA HDDs.(byICH5) |
| |
|
| IntegratedSuperI/O: |
- 1 x Floppy Port.
- 1 x PS/2 Mouse Port.
- 1 x PS/2 Keyboard Port.
- 1 x LAN Port.
- 1 x Parallel Port.(viaoptionalcable)
- 2 x Serial Ports.
- 8 x USB 2.0/1.1 Ports.(4
integrated, 4 viaoptional cables)
- Audio Ports.
- 3 x IEEE1394 Ports.(2integrated, 1 viaoptional cable
- 1 x VGA Port.
|
| RAID: |
-- |
| IEEE1394: |
- 3 x IEEE1394 Ports.(2 integrated, 1 viaoptional cable)
|
| AUDIO: |
6-ChannelAC'97Audio. |
| LAN: |
10/100LANFunction. |
| BIOS: |
- AMI BIOS
- Flash Memory for easy upgrade
|
| FormFactor: |
180mmx260mm |
| OtherFeatures: |
- BIOS FSB Setting.
- BIOS Writing Protection.
- BIOS AGP,DIMM,VcoreVoltageSetting.
- BIOS Multiplier Setting.
- SmartDoc. Anti-burning Shield.(optional)
- RedStorm Overclocking Technology.(optional)
- Soltek H/M Monitor.
- STR Function.(optional)
|
| |
|
Power
