Preferences List

The following is a list of settings found in "OPTIONS→SETTINGS" (!CONFIRM), what they do, and their default values.

Control

BankWheelScrollRate

• Specifies the rate of speed of scroll using a scroll wheel when using Bank View.
• Default: 4

EditorMouseWheel

• Specifies the mouse wheel function in the Editor.(!verify)
• Default: 1
  • 0: (!verify)
  • 1: (!verify)

EditorMouseWheelAlt

• Specifies the alt key + mouse wheel functionality in the Editor. !verify
• Default: 0
  • 0: !verify

EditorMouseWheelCtrl

• Specifies the functionality for ctr key + mouse wheel in the Editor. !verify
• Default:3

EditorMouseWheelShift

• Specifies the functionality of shift key + mouse wheel in the Editor.
• Default: 2

EnableRightClickMenu

• If True, enables a context menu opening when right-clicking.
• Default: False
• Tip

Dialog

ShowLoadImageCutoffDialog

• When an image is opened in the CHR-ROM tab, a dialog(!verify) is displayed indicating that the outside of the range has been truncated.(!verify)
• Default: True

ShowReloadExternalChangeDialog

• Confronts the user with a dialog box whenever the open file is modified outside of YY-CHR. The dialog asks if the user wants to reload the file.
• Default: True

ShowSaveModifiedDialog

• Confronts the user with a dialog box whenever he tries to close a file that was modified but not saved. The possible responses are [save change and close], [close without saving changes], and [cancel].
• Default: True

File

DefaultImageType

• Specifies the default image format when opening and saving.
• Default: 0
  • 0: ??? (!CONFIRM)

EnabledEditorForReadOnlyFile

• If this is enabled, palettes, regardless how their attributes are set, can be read and revised by the program. Click here for an illustration.
• Default: False

LoadImagePaletteOnChrRomTab

• Specifies whether palettes load from image files opened in the CHR-ROM tab.(!VERIFY)
• Default: False

SaveClearUndoBuffer

• Specifies whether the undo(?) buffer should be clear upon Saving a ROM.
• Default: True

SmallFileSaveSize

• Specifies what size to Save a ROM as when it is smaller than Bank 1.
• Default: 0
  • 0: ???(!VERIFY)
  • 1: ???(!verify)

Grid

GridBankColor1

• Specifies the RGBA color of the gridlines of Bank 1 of the Bank View. Format is (A, R, G, B).
• Default: .Color(0x80, 0xFF, 0xFF, 0xFF)

GridBankColor2

• Specifies the RGBA color of the gridlines of Bank 2 of the Bank View. Format is (A, R, G, B).
• Default: .Color(0x20, 0xFF, 0xFF, 0xFF)

GridBankVisible

• Specifies whether the gridlines in the Bank View show. !verify
• Default: True

GridEditColor1

• Specifies the gridline color in the Edit View for Grid 1. Format is (A, R, G, B).
• Default: .Color(0x80, 0xFF, 0xFF, 0xFF)

GridEditColor2

• Specifies the gridline color for Grid 2 of the Edit View. Format is (A, R, G, B).
• Default: .Color(0x20, 0xFF, 0xFF, 0xFF)

GridEditVisible

• Specifies whether the gridlines in the Edit View are visible.
• Default: True

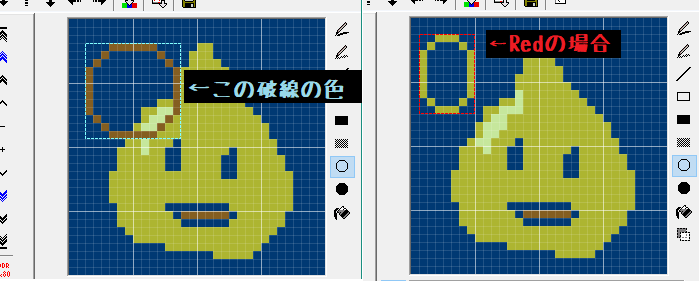

EditingRectColor

• For draw tools that use a box to show the region being draw, this setting specifies the color of the box border. It also specifies the color of the lines used in draw tools with a start and end point.
• Illustration
• Default: .Color(0xFF, 0x80, 0xFF, 0xFF)

GridStyle

• Specifies the style of gridlines seen in both the Bank View and Editor View. It also affects the toolbar at the bottom part of the window.
• Default: 4

Option

CheckFont

• Check installed fonts. If a GUI font(!verify) doesnt exist, YY-CHR boots in english mode. If in Linux or a Wine environment please set this to True.
• Default: True

CheckKeyOnActivated

• When YY-CHR becomes active, check Control, Alt, and Shift keys. Set this preference to False if YY-CHR cannot return from the Taskbar.
• Default: True

OptionSaveWindowPosition

• Specifies whether the window position should be saved.
• Default: False

OptionSavedWindowPosition

• Specifies the window position.
• Default: .Point(0,0)

OptionShowAllMenu

• Show the entire menu. Normally the Address and Pen menus are hidden.
• Illustration
• Default: False

OptionShowTitleAddress

• Specifies whether the current address will be shown in the Title Bar (!verify).
• Default: True

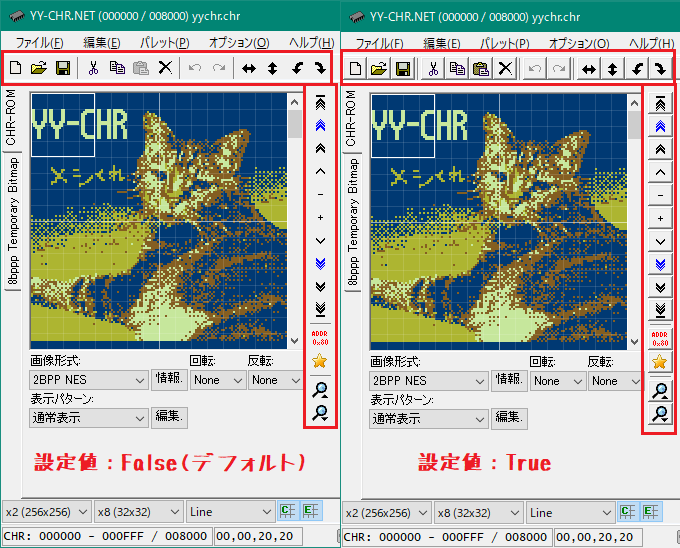

OptionShowToolbarAsButton

• Specifies whether the Toolbar buttons have shadows. Note: On some Windows this wont show correctly.
• Illustration
• Default: False

Path

BmpPath

• Specifies initial directory for reading graphics. If undefined, the directory is…(!CONFIRM)
• Default: (blank)

BmpSaveDirType

• Controls which default directory the the Save screen starts in.
• Default: 1
  • 0: Same directory as the [currently? / last?] (!CONFIRM) file open(ed).
  • 1: Directory specified in the BmpPath.

ExtPath

• Specifies the initial directory for adding Template files. If undefined, the initial directory is… (!CONFIRM)
• Default: (blank)

RomPath

• Specifies the initial directory when reading ROMs. If undefined, the program will start at the last directory loaded from. (!CONFIRM)
• Default: (blank)

StatePath

• Specifies the inital directory for save states. If undefined, the program will start at the last directory loaded from. (!CONFIRM)
• Default: (blank)

View

DefaultPaletteRowNum

• The number of lines displayed in the palette when the window size is small. If you specify eight or more, increase the window size for display.
• Default: 8

EditRectSize

• Specifies the size of the edit area of the Edit View in pixels by pixels.
• Default: .Size(32,32)

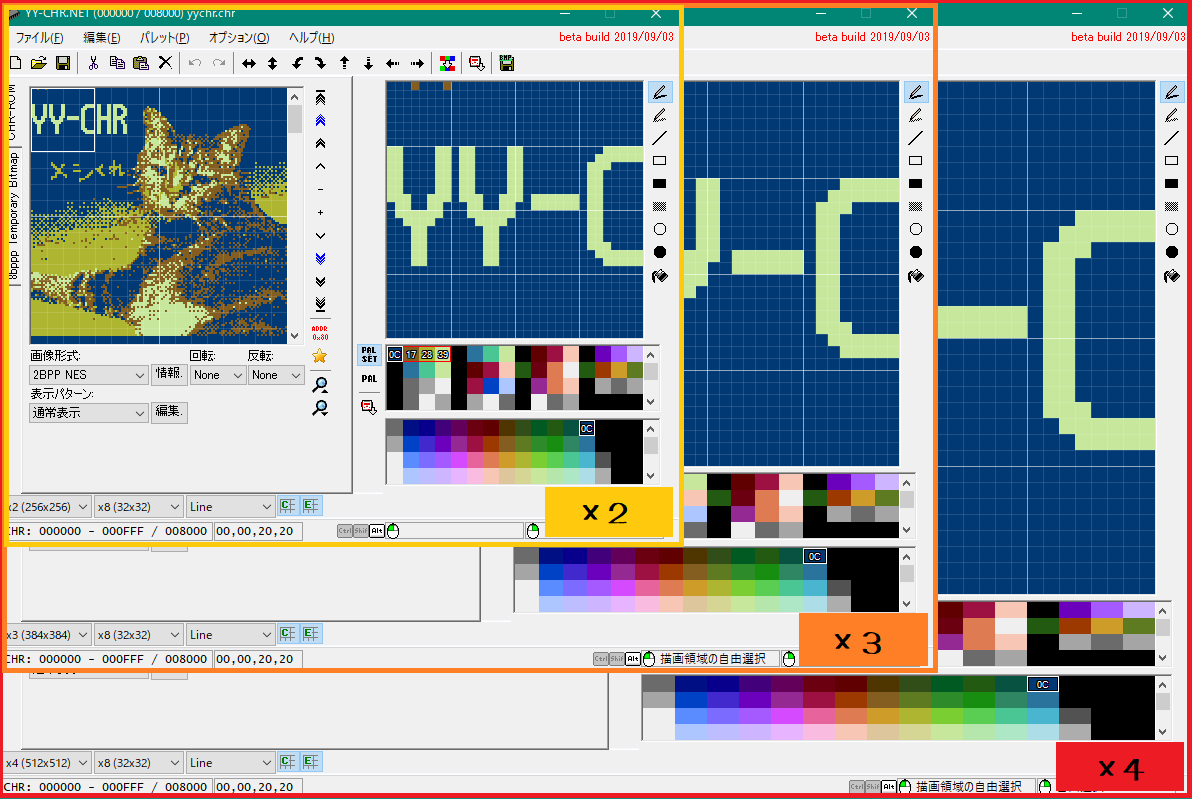

GuiSizeRateIndex

• Specifies the scale-factor of the GUI.
• Illus.
• Default: 0
  • 0: 2x
  • 1: 3x
  • 2: 4x

---

Page Todo

• Verify the unverified.
