D-Bus


Documentation





D-Bus の存在を感じてみる - いますぐ実践! Linuxシステム管理 / Vol.175
http://www.usupi.org/sysad/175.html


Overview

引用:
  • アプリケーション間は、基本的には 1対1 で通信します。
  • 通信の際には、「メッセージ」をやりとりします。
  • メッセージには、「メソッド(関数)」と「シグナル」があります。
  • メソッドは、相手に何らかの処理をしてもらうためのもので、通常は、処理した結果が戻ってきます。
  • シグナルは、相手に何かを通知するためのものです。
  • 通信は、バスを介して行われます。
    • バスには、「システムバス」と「セッションバス」があります。
  • システムバスは、システムとのやりとりで使われます。
  • セッションバスは、主にデスクトップ環境で使われます。
  • バス名で、通信相手を特定します。
    • org.freedesktop.NetworkManagerのような、みんな知っている有名(?)な名前もあれば、使用中のみ有効な : で始まる名前もあります。
  • 通信相手は、いくつかの「オブジェクト」を持っています。
    • たとえば、NetworkManager は、eth0 などのデバイスや、そのデバイスに対する接続の情報を持っていますが、デバイスも接続もオブジェクトとして扱われます。
  • オブジェクトは、「オブジェクトパス」で指定します。
    • たとえば、/org/freedesktop/NetworkManager/Devices/0 のように表します。(ちなみにこれは NetworkManager のデバイスです。)
  • メッセージはオブジェクトに対して送信されます。
    • オブジェクトが受け付けるメッセージは、「インターフェース」で定義されています。

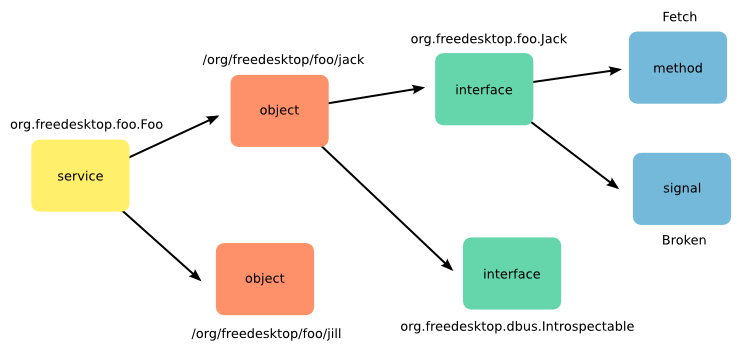

Methods and signals on an object

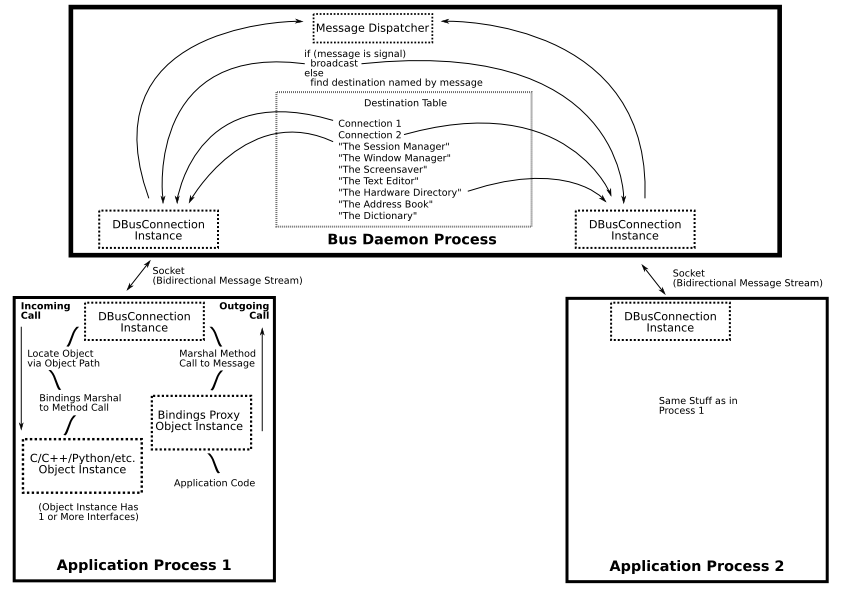

Overview picture

標準インタフェイス
org.freedesktop.DBus.Peer
  • org.freedesktop.DBus.Peer.Ping
  • org.freedesktop.DBus.Peer.GetMachineId
    • out STRING machine_uuid
org.freedesktop.DBus.Introspectable
  • org.freedesktop.DBus.Introspectable.Introspect
    • out STRING xml_data
org.freedesktop.DBus.Properties
  • org.freedesktop.DBus.Properties.Get
    • in STRING interface_name
    • in STRING property_name
    • out VARIANT value
  • org.freedesktop.DBus.Properties.Set
    • in STRING interface_name
    • in STRING property_name
    • in VARIANT value
  • org.freedesktop.DBus.Properties.GetAll
    • in STRING interface_name
    • out DICT<STRING,VARIANT> props

Test

グラフィカルdbusデバッガであるd-feetを使用すると、dbusに登録されているバスネームやオブジェクトパスの一覧表示、メソッドの実行などができる。
# なぜかシステムバスのバスネームに org.freedesktop.DBus が出てこない

dbus-sendを使用し、メッセージ通信をテストする。
NAME
       dbus-send - Send a message to a message bus
SYNOPSIS
       dbus-send  [--system  | --session] [--dest=NAME] [--print-reply] [--type=TYPE] <destination object path> <mes‐
       sage name> [contents ...]
OPTIONS
       The following options are supported:
        --dest=NAME
              Specify the name of the connection to receive the message.
        --print-reply
              Block for a reply to the message sent, and print any reply received.
        --system
              Send to the system message bus.
        --session
              Send to the session message bus.  (This is the default.)
        --type=TYPE
              Specify "method_call" or "signal" (defaults to "signal").

DBusオブジェクトのインタフェイス一覧表示
dbus-send --system --dest=org.freedesktop.DBus --type=method_call --print-reply /org/freedesktop/DBus org.freedesktop.DBus.Introspectable.Introspect
システムバスのバスネーム一覧表示
dbus-send --system --dest=org.freedesktop.DBus --type=method_call --print-reply /org/freedesktop/DBus org.freedesktop.DBus.ListNames
HALが管理している全てのデバイスネーム取得
dbus-send --system --dest=org.freedesktop.Hal --type=method_call --print-reply /org/freedesktop/Hal/Manager org.freedesktop.Hal.Manager.GetAllDevices
Gnomeが使用しているXのディスプレイネーム取得
dbus-send --system --dest=org.gnome.DisplayManager --type=method_call --print-reply /org/gnome/DisplayManager/Display1 org.gnome.DisplayManager.Display.GetX11DisplayName

Tool implementation

dbus-send

メソッドコールのときのシーケンスを記述する。

コネクションとメッセージのポインタを定義。これらを使用してメッセージ通信を行う。
DBusConnection *connection;
DBusMessage *message;
システムバスorセッションバスを取得する
connection = dbus_bus_get (type, &error);
メッセージを生成する。オブジェクトパス・インタフェイス・メソッドを入力する。
message = dbus_message_new_method_call (NULL,
                                        path,
                                        name,
                                        last_dot + 1);
よくわからないオートスタートフラグ設定
dbus_message_set_auto_start (message, TRUE);
デスト設定。バスネームを入力する。
if (dest && !dbus_message_set_destination (message, dest))
メソッドの引数パラメータをメッセージに付加する
メッセージを送信する
reply = dbus_connection_send_with_reply_and_block (connection,
                                                   message, reply_timeout,
                                                   &error);
メソッドの結果を出力する(--print-replyが付加されていた場合)
print_message (reply, print_reply_literal);
コネクションとメッセージを開放する
dbus_message_unref (message);
dbus_connection_unref (connection);


Note

bus/interface/method register seq
