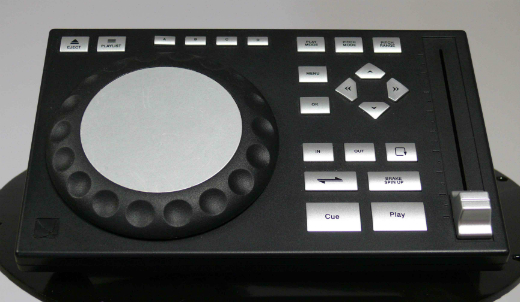

XP10（VDJ-edition）

概要

オーディオインターフェイスを内蔵したポケットサイズのMIDIコントローラー。

※VDJ-editionは画像なし。

スペック表

Frequency Response 4 Hz - 24 kHz
Signal-to-Noise Ratio 105 dB (EIAJ)
Total Harmonic Distortion + Noise 0.002% (EIAJ)
Audio Output 10 V (peak-to-peak) 3.5 V (RMS)
Power Requirements None (USB bus-powered)
Power Consumption 180mA typical
22 low-travel buttons
4½" touch sensitive vinyl emulation jog wheel
100mm pitch slider with selectable pitch range (8/16/32%)
Four configurable function buttons
Intuitive Layout: The layout of XP10 was created in close co-operation with pro DJs to answer the demanding needs of playing live
inyl Emulation: The XP10 features a 4 1/2" high precision jog wheel for pitch bending, cueing and scratching. The jog wheel can also be used for track selection or real-time adjustment of the loop in/out points
Pitch Slider: The 100 mm ALPS pitch slider with selectable pitch range (8/16/32%) makes pitch and tempo adjustments easy and accurate. With the Pitch Mode button, functions such as Time Stretching or Pitch Shifting can be selected on the fly
Seamless Looping: Cue and loop points can be created and recalled by a push of a button
User Definable Controls: Four buttons, A, B, C, and D can be set to perform configurable functions.This represents a 'future proof' philosophy behind the design of the XP10
Hi-Fi Soundcard: Each XP10 contains a top quality, high RMS output soundcard with Burr-Brown DAC''s and stereo RCA connectors
