スペック表・Jockey 3 Remix |
TECHNICAL DATA
Digital mixer section:
Stand alone mixing function: Two analogue phono/line inputs for the connection of turntables or CD players - mixing of media also possible without a computer
Each channel can be assigned to either 2 MIDI decks (A/C, B/D) or an analogue input via toggle switch
Exchangeable premium crossfader with adjustable curve
Two Alpha Pro Longlife 70 mm linefaders
3-fold EQ control plus filter function & gain
Cue buttons for monitoring and cue mix via 25 mm mini fader
VU meter LED for level modulation
Power status & MIDI LEDs for monitoring
Player section:
2 touch-sensitive (adjustable sensitivity), two-piece XXL jog wheels
4 jog modes: Vinyl, CDJ, search & FX modulation
Large transport section for play, cue, cup and sync
Two long, high-resolution 14 bit smooth-glide pitch faders for precise matching
Two pitch bend buttons
Designated control dials for filter and pan effects
Extensive loop & sample section incl. 4 large cue/loop trigger buttons on 2 banks
Full effect control with 4 sample XL encoders and buttons for impulsive effect action
Master section:
1x master control dial
Separately adjustable booth output for DJ monitor
1x phones-level control dial
Large Trax encoder for quick, comfortable music library browsing (with 2 lit load buttons)
Connections:
Two analogue inputs with phono/line mode switch
Adjustable 6.3 mm jack mic input with software/master-routing switching
Two headphones connections via 6.3 mm & 3.5 mm jack
Two master outputs (symmetrical jack and asymmetrical RCA output)
One booth output for DJ monitor
Master thru connection for loop-in of a second controller (DJ team) or other source
Misc:
Anti-theft device: Kensington safety slot
LED dimming controller for brightness adjustment
Shift-lock feature
Cue master thru function
Flexible input routing: All inputs can either be routed to software or master output
System requirements PC:
Windows 7 (latest SP, 32-/64-bit)
2.0 GHz Intel Core Duo 2 oder AMD Athlon 64 X2
2 GB RAM (4 GB recommended)
System requirements Mac:
Starting from Mac OS X 10.6 or 10.7
Intel Core Duo 2
2 GB RAM (4 GB recommended)
CD-ROM/DVD drive
Dimensions: 420 x 61.55 x 315 mm
Weight: 5.0 kg
価格

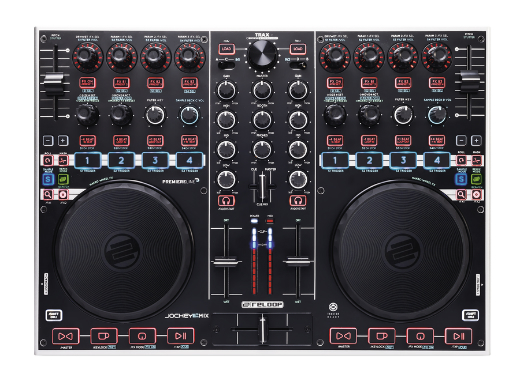

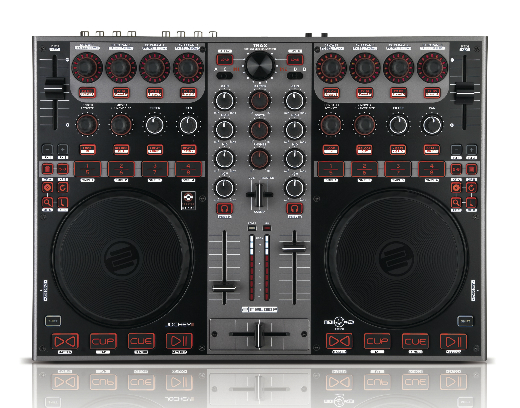

Jockey 3 Remix
http://www.reloop.com/reloop-jockey-3-remix
|
