Built-in audio
2 stereo outputs
2 types of plug per output:
Mix output (channels 1-2)
2 RCA for hi-fi & mixers
1 stereo 1/8" jack (3.5mm) for multimedia speakers
Preview output (channels 3-4)
1/4" jack (6.35mm) for headphones
2 RCA for speakers
1 microphone input
1/4" jack plug with volume knob to talk over the music
2 stereo inputs
2 x 2 RCA inputs, to include external sources in your mix
Inputs compatible with:
phono (turntables)
consumer line (-10dBv) (for MP3 players, etc.)
pro line (+4dBu) (for studio gear & CD players)
boosted line (+8dBu) (for Pioneer CDJ players)
Built for mobility
Compact (10.5 x 7.3 x 2.5")
Lightweight (2.56 lb/1.15kg)
Transport cover & shoulder strap included
Included DJ mix software
VirtualDJ® DJC Edition
For Windows® XP/Vista/7
For Mac OS® 10.5/10.6
Specifications
Controls for DJing:
2 jog wheels, 3 faders, 11 knobs
36 transport buttons
Audio for DJing:
4-channel in / 4-channel out
Microphone input for talk-over
Headphone jack for previewing tracks
Phono preamplifiers on the audio inputs
Drivers
ASIO & WDM for Windows®
Core Audio for Mac OS®
MIDI control: Windows & Mac
BOX CONTENTS

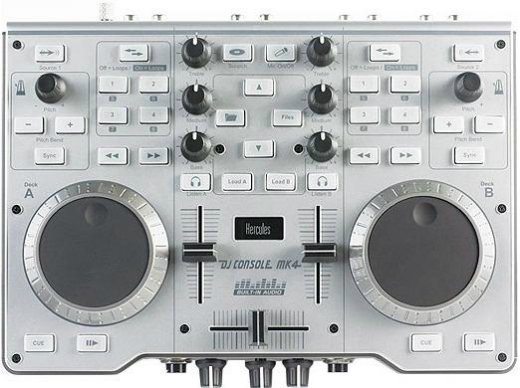

DJ Console Mk4
VirtualDJ® DJC edition
User manual
MINIMUM CONFIGURATION
PC minimum requirements
Windows® XP/Vista/7/8 32-bit/64-bit
1.5GHz CPU or higher
1GB RAM or more
USB port (USB bus-powered)
Stereo speakers and/or headphones
Mac minimum requirements
Mac OS® 10.5/10.6
1.5GHz CPU or higher
1GB RAM or more
USB port (USB bus-powered)
Stereo speakers and/or headphones
