T60

概要

33,45,78回転＋リバース再生、±10,20%のピッチコントロールを備えたタンテ。ハンピンOEM。

スペック表

． Direct-drive motor with super high Torque (1.6kg-cm)
． Height adjustable S-shaped pickup arm
． Super bright LED illumination
． Extra heavy design
． Forward and reverse playback
． Pitch range +/- 10%, +/-20%
． Pitch lock
． 33, 45, and 78 rpm
． S/N ratio: > 60dB
． Phono and line output (without grounding connector)

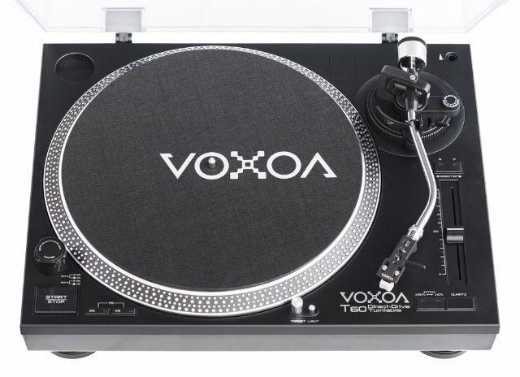

Model T60, Direct-drive Turntable
Power AC110-220V, 50/60Hz, 13W
Dimensions 450mm (W) X 352mm (D) X 144mm (H)
Weight
9.8 kg

Turntable Section 3-speed full manual
‧ Motor : 16pole, 3phase
‧ Driving : Direct drive
‧ Platter : 332mm dia. aluminum diecast
‧ Speed : 33 1/3 and 45 rpm and 78rpm
‧ Wow and flutter : Less than 0.1% WRMS (JISWTD) with 33 1/3rpm
‧ S/N Ratio : More than 55dB (DIN-B)
‧ Pitch controls : +/- 10%,+/- 20%
‧ Electronic brake
‧ Starting torque : More than 1.6kgf.cm

Tone-arm Section ‧ Type : S-shaped
‧ Effective arm length : 230mm
‧ Tracking error angle : Less than 3 degree
‧ Anti-skating range : 0~3g
‧ Applicable cartridge weight : 13 ~18g (Including Headshell )
‧ Output : 1.5~3.6mV at 1KHz 5cm/sec (HP-4005)　Cartridge: AT-3600L
‧ Frequency response : 20Hz~20KHz
‧ Channel separation : More than 15dB
‧ Channel balance : Within 2.5dB at 1KHz

Accessories supplied

• 1 Counterweight
• 1 Target light
• 1 Headshell
• 1 Audio Technica AT3600L Cartridge
• 1 Platter
• 1 45 rpm adaptor
• 1 Slipmat
• 1 AC cord
• 1 Connecting cable
• 1 User Manual
