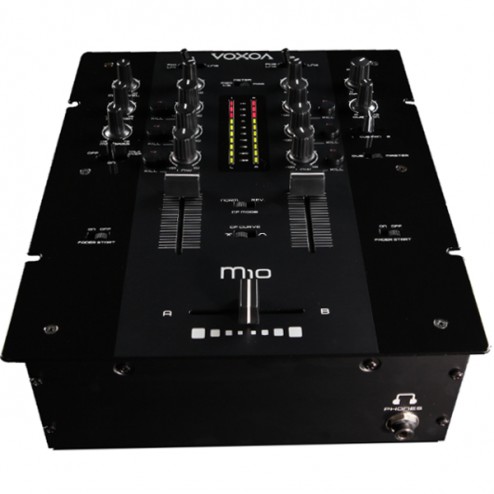

M10

概要

3Band EQとフェーダースタート、クロスフェーダーカーブ調節・リバーススイッチを搭載した2chミキサー。

フロント・リアパネル画像

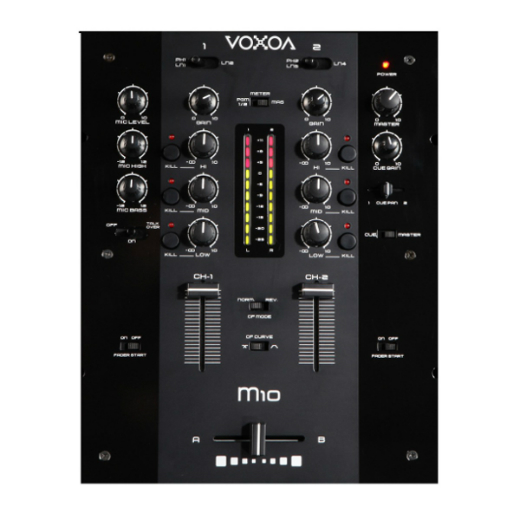

フロントパネル

リアパネル

スペック表

• 2-Channel Tabletop Mixer
• Input: Line x 4 (RCA), Phono x 2(RCA), MIC x 1 (6.3mm x1)
• Output: Unbalanced (RCA) x1, Record (RCA) x1, Fader Start Control Out x 2 (3.5mm)
• Three-band EQ with Full output kill for each channel
• 2-band equalizer for microphone
• Talk over for microphone
• High quality replaceable crossfader with 2 curve
• Crossfader Start compatible with VOXOA CD/MP3 Player
• Channel fader reversible
• Crossfader style cueing control
• Dual 10 LED monitor display (selectable PGM 1/2 or Master output)

Product Model M10 , 2-channel Mixer
Power DC6V, 2A
Size 235mm (W) X 287mm (D) X 106.4mm (H)
Weight 1.65kg
Sound Specification
INPUT/OUTPUT IMPEDANCE & SENSITIVITY:
(MASTER 0dBV OUTPUT, LOAD=100KOHM, MAX. GAIN, EQ FLAT)
LINE: 10K OHM /-14dBV (200mV) +/-2dB
PHONO: 47K OHM /-50dBV (3.16mV) +/-2dB
MIC: 1.5K OHM /-54dBV (2mV) +/-2dB
MASTER: 1K OHM
PHONES (load=32 ohm) : 33 OHM /0dBV (1V) +/-2dB

FREQUENCY RESPONSE: (MASTER OUTPUT, EQ FLAT)
LINE: 20-20KHz +/- 2dB.
PHONO: 20-20KHz +2/-3dB (RIAA)
MIC: 20-20KHz +2/-3dB

THD + N: (MASTER 0dBV OUTPUT, MAXIMUM GAIN, w/ 20kHz LPF)
LINE: LESS THAN 0.05% 20-20KHz
PHONO: LESS THAN 0.1% 20-20KHz (IEC-A WTD)
MIC: LESS THAN 0.2% 20-20KHz (IEC-A WTD)
PHONES: LESS THAN 0.1% 20-20KHz (FROM LINE INPUT)

MAXIMUM INPUT: (1KHz, MASTER OUTPUT, THD=1%, EQ FLAT, MAXIMUM GAIN)
LINE: MORE THAN +4dBV
PHONO: MORE THAN -32dBV
MIC: MORE THAN -42dBV

MAXIMUM OUTPUT: (THD=1%, MAXIMUM GAIN, EQ FLAT)
MASTER: MORE THAN +18dBV (8.0V) at load=100K OHM
PHONES: MORE THAN +4dBV (1.6V) at load=32 OHM
REC: MASTER Max. OUTPUT -10+/-2dB at load=100K OHM

SN RATIO: (MAXIMUM GAIN, MASTER 0dBV OUTPUT, EQ FLAT, W/20KHz LPF, A-WEIGHTED)
LINE: LESS THAN -80dBV
PHONO: LESS THAN -70dBV
MIC: LESS THAN -60dBV

CROSSTALK: (FROM MASTER OUTPUT,A-WEIGHTED)
LINE/PHONO : MORE THAN 65dB AT 1K Hz BETWEEN L AND R
MORE THAN 65dB AT 1K Hz BETWEEN CHANNELS.

MIC Talkover: -14dB+/- 2dB

EQ:
MIC: HI: 12 +/- 2dB AT 10KHz

• 12 +/- 2dB AT 10KHz

LOW: 12 +/- 2dB AT 100Hz

• 12 +/- 2dB AT 100Hz

Channel: HI: 10 +/- 2dB AT 16KHz

• 21 +/- 3dB AT 16KHz

MID: 10 +/- 2dB AT 1KHz

• 22+/- 3dB AT 1KHz

LOW: 10 +/- 2dB AT 60Hz

• 22 +/- 3dB AT 60Hz

Kill: HI: -21 +/- 3dB AT 16KHz
MID: -22 +/- 3dB AT 1KHz
LOW: -22 +/- 3dB AT 60Hz

FADER MAXIMUM ATTENUATION:
CHANNEL FADER: LESS THAN -70dB at 1KHz
CROSSFADER: LESS THAN -75dB at 1KHz

CHANNEL BALANCE: Within 3dB

CROSSFADER CUT IN POSITION: 1.6mm +/- 0.5mm

価格

• 209,00 €
