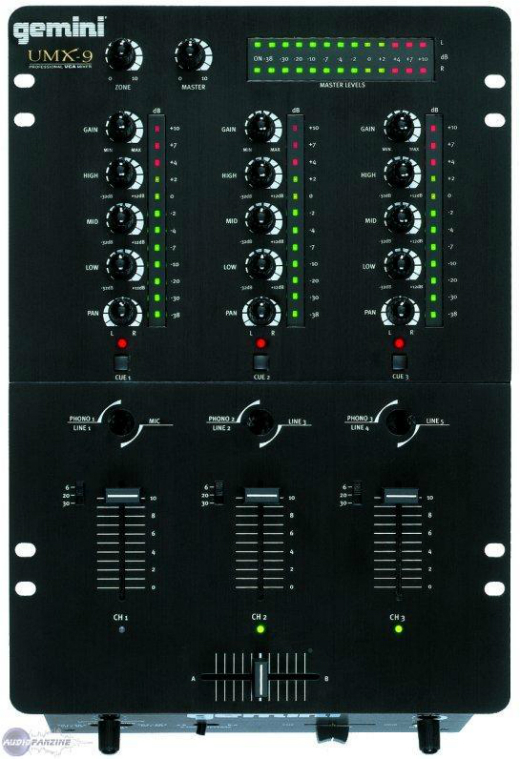

UMX-9

概要

3BandEQとCFリバース設定可能なミキサー。

スペック表

• 3 stereo channels
• 3 phono/line convertible 2 line and 1 mic input
• Channel slide curve control switch
• Crossfader reverse (hamster) switch
• Assignable crossfader with rotary curve control
• State of the art cue section
• Cut feature for low , mid and high for each channel
• Gain , high , mid and low tone controls for each channel
• Balanced and unbalanced master outputs
• Zone and record outputs
• Master output peak hold LED meters
• Prefader input level peak hold LED meters for each channel

Specifications
feature Low (Chnls 1 - 3): +12 dB / - 32 dB
feature Mid (Chnls 1 - 3): +12 dB / - 32 dB
feature High (Chnls 1 - 3): +12 dB / - 32 dB
feature Gain: 0 to -20 dB
feature Frequency Response: 20 Hz - 20 Khz +/- 2 dB
feature THD: (0.08 %)
feature S/N Ratio: better than 80 dB
feature Headphone impedance: 16 Ohm
feature Power source:

• 115/18V AC 0.75A
• 230/18V AC 0.75A

feature Dimensions: 254 x 375 x 108 mm
feature Weight: 4kg
Content is © DJReso

UMX-9取扱説明書（英語）
https://www.manualslib.com/manual/732203/Gemini-Umx-9.html
