PRO SM-1(2,SMX)

概要


3BandEQを搭載したミキサー。

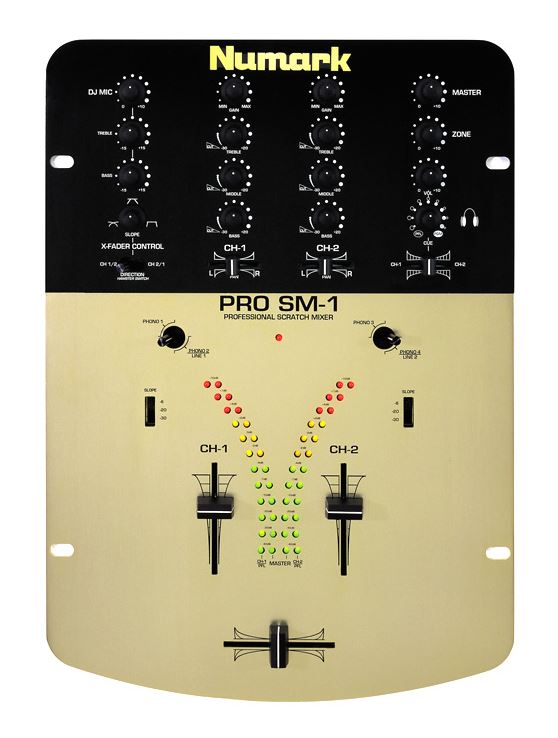

PRO SM-1
光学式クロスフェーダー搭載。縦フェーダーはカーブを3段階で切り替え可能。

+ リアパネル画像

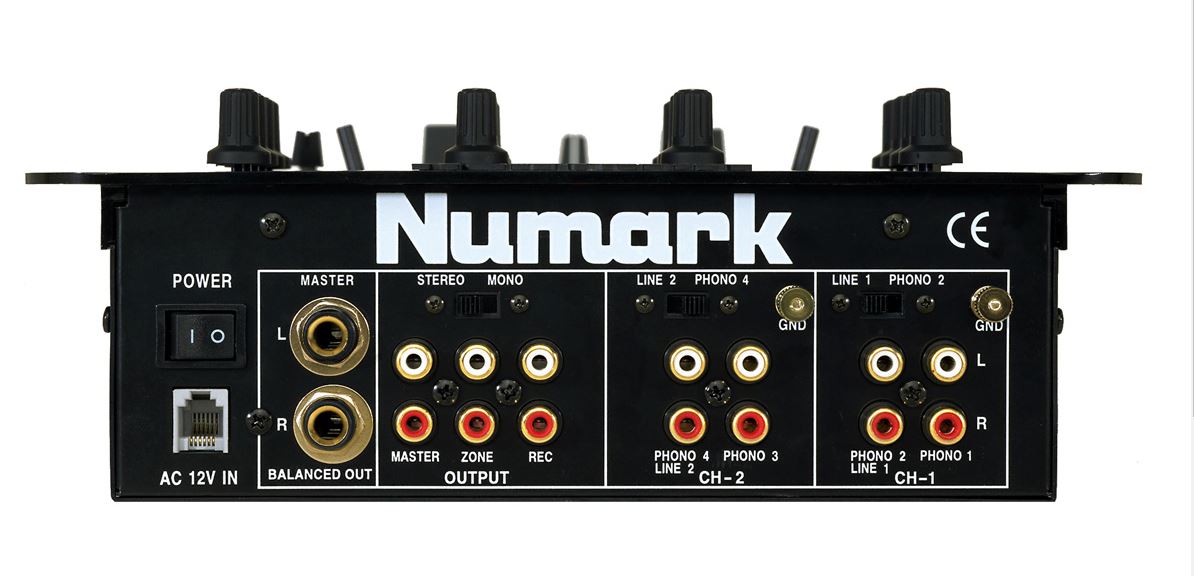

リアパネル


+ スペック表・PRO SM-1
Numark's original high end mixer, the Pro SM-1 offers all of the features found on other more expensive mixers for a lot less! 2 line, 4 phono, and 1 mic input.
FEATURES

• Highly Reliable, Long-Life, Active Optical crossfader with Super Quiet Photo Coupler
• Crossfader Reverse (Hamster) Toggle
• Crossfader Slope Control
• All Optical Faders
• Active Channel Faders with Three Position Contour Adjustment Switch
• Four Phono Inputs with Low-Noise RIAA preamps
• Two Optional Line Inputs
• Bass, Middle & Treble controls on each channel with -30dB "Cut" & +12dB "Boost"
• Individual PFL Gain Controls on each channel
• High-Resolution Linear fader style Balance Control on each channel
• Four Bar 12- Segment Display graph on both Stereo Master output and PFL for each input channel
• Combination XLR-1/4 inch Neutrik Microphone input with Treble and Bass
• Slider Cueing with PFL (Pre-Fader Listen) for each input channel
• Gold Plated Headphone Jacks for Both 1/4 inch and 1/8 inch Headphone Plugs
• Balanced 1/4 inch TRS and Unbalanced RCA connection Master Outputs
• Monitor/Zone Level Control with Mono Adjustment
• Smooth Screwless Faceplate
• Hard Rubberized Knobs for Quick and Non-Slip Gripping
• Extra Wide Rubber Feet for Maximum Stability
• Same Height as PRO TT-1 turntable
• All Gold Plated Connectors
• High Quality, Double Sided, Glass Epoxy Circuit Boards with Extra Thick Copper Ground Plates for Exceptionally Quiet Operation
• Carbon Composite Resistors for more natural warm sounds (perfect for vinyl)
• Dual Gold Plated Grounding Screws
• Inputs: Line: 10K ohm input impedance
75mV rms sensitivity for 1.22V output, Mic: 10Kohm input impedance unbalanced
2.5mV rms sensitivity for 1.22V output
50mV rms max input, Phono: 47Kohm input impedance
1.2mV rms sensitivity @ 1KHz for 1.22V output
• Outputs: Line: 9V rms max, Headphone: 0.5W into 47ohm
• Distortion: less than 0.01%
• Signal to Noise Ratio: (maximum output) Line: Better than 90dB, Mic: Better than 78dB, Phono: Better than 76dB
• Frequency Response: Line: 20Hz-22KHz 0.5dB, Mic: 20Hz-20KHz 0.5dB, Phono: 1dB except for controlled attenuation of -3dB @ 20Hz to reduce rumble and feedback
• Channel EQ: Bass: 12/-30dB @ 60Hz, Middle: 12/30 @ 1.36KHz, Treble: 12/30 @ 15KHz
• Channel Curve: -6, -20, -30dB at 50% fader position
• Power Consumption: 17 Watt typical, 28 Watt with full headphone output
• Specifications and design may be changed without notice for improvement.
• WARRANTY: 3 years

価格
  • $399.99(当時)

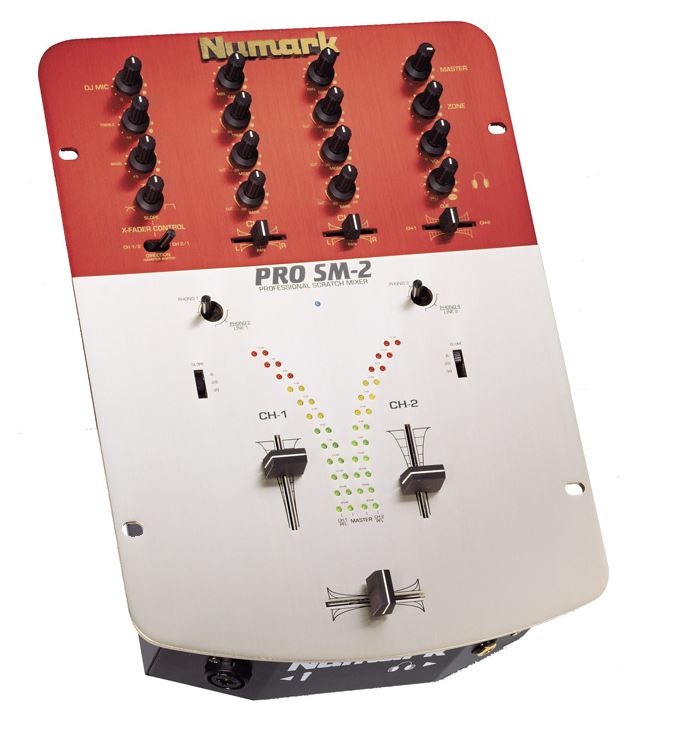

PRO SM-2
縦フェーダーはALPS製、横フェーダーは「OMEGA」クロスフェーダーを搭載。


OMEGAクロスフェーダー

+ フロント・リアパネル画像

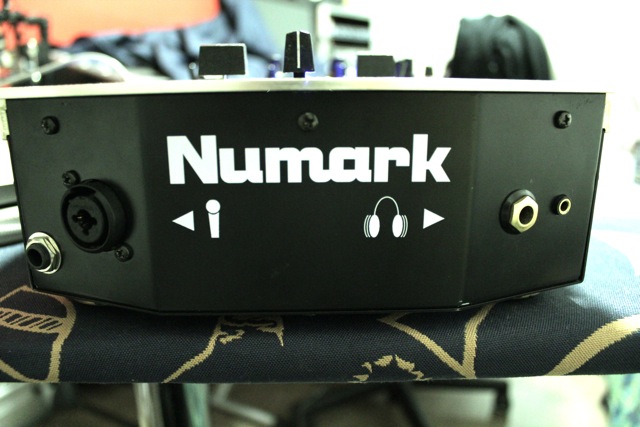

フロントパネル

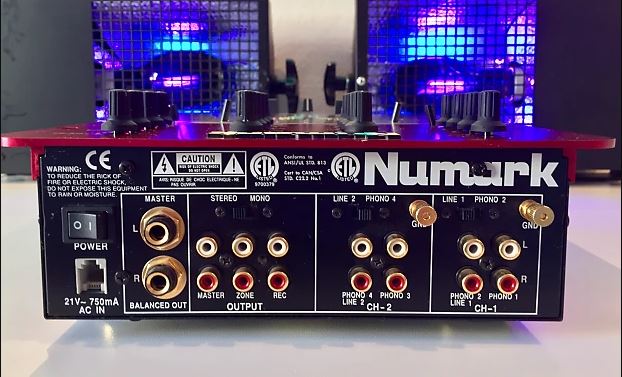

リアパネル


+ スペック表・PRO SM-2
Mezclador para scratch de 2 canales, faders ópticos de larga duración con control de pendiente, crossfader con inversión, 4 phono, 2 línea y 1 micro, medidores PFL por canal.

Características

– Entradas: 4 phono, 2 línea y 1 de micro.

– Salidas: Master balanceada, zona y grabación.

– Crossfader óptico activo OmegaTM de larga duración con control de pendiente e inversión.

– Palancas de selección de entradas con ocho posiciones.

– Faders de canal ALPS de larga duración con 3 posiciones de contorno.

– Palancas de selección de entradas con ocho posiciones.

– Controles de graves, medios y agudos en cada canal con corte de -30dB.

– Control de ganancia y panorama por canal.

– Medidor PFL de LED’s por cada canal en mezcla.

– Asignación prescucha con fader deslizante horizontal.

– Entrada XLR-1/4″ combinable Neutrik para micrófono con graves y agudos.

– Jacks de auriculares de 1/4″ o 1/8″.

– 2 Tomas de tierra para giradiscos.

– Todos los conectores están chapados en oro

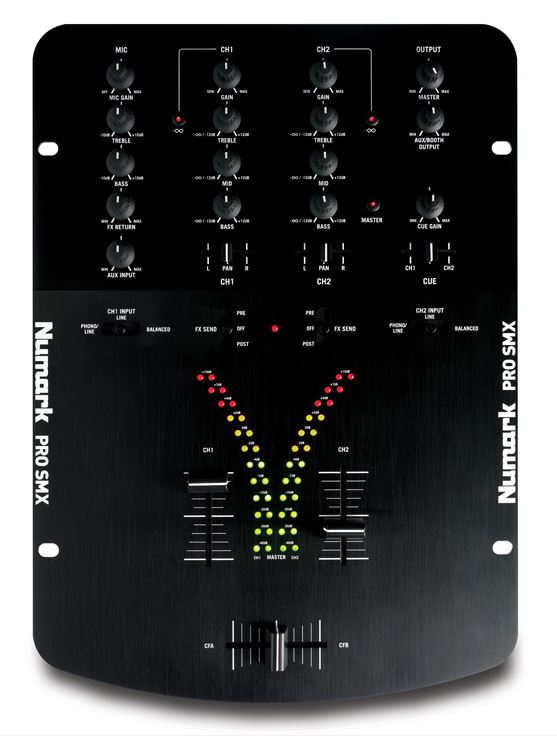

PRO SMX
SM-1をベースにPro X FadeやXLR出力を搭載したモデル。

+ フロント・リアパネル画像

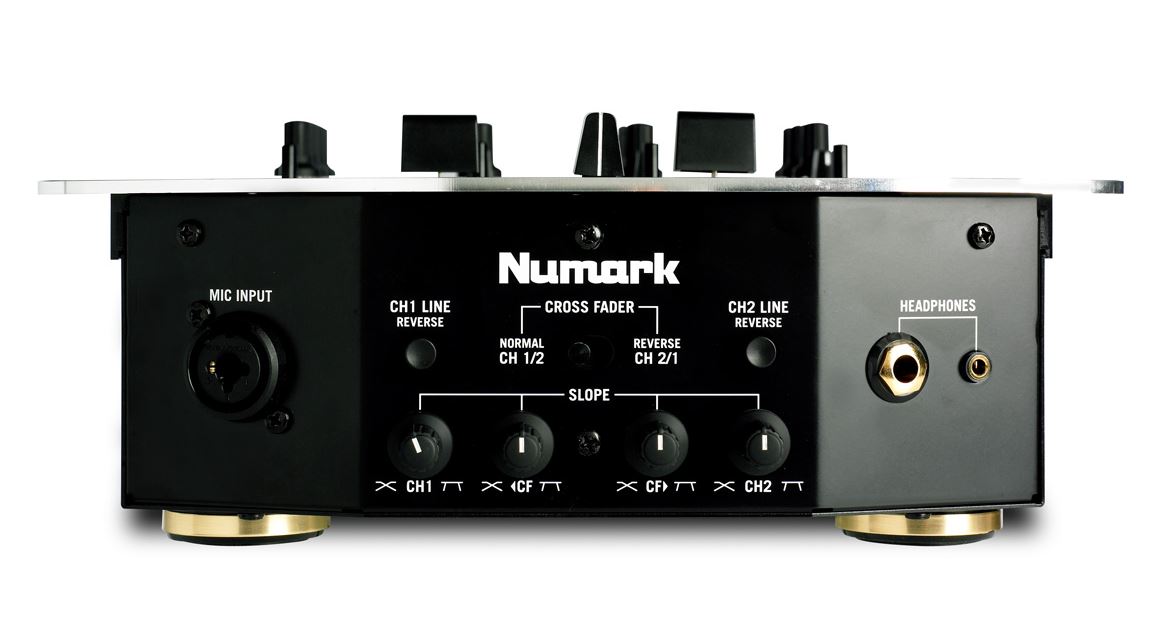

フロントパネル


リアパネル


+ スペック表・PRO SMX
Fully analog audio signal path with no A-D or D-A conversion
PRO-X-FADE crossfader has adjustable end points and torque
Pre/Post effects send and return
Three inputs per channel including balanced 1/4"
Three-band EQ per channel, switchable between +/-12 dB (EQ) and +12/-INF dB (kill)
Crossfader and line fader-reverse switches
Adjustable fader slope for each side of the crossfader and each line fader
XLR and RCA master outputs
Session input with volume control
Gold-plated rear connectors
Rugged, thick, heavy metal construction
