Frequency Response
Mic Input to any Output (Trim at 0 dB):
+0, -1 dB
20 Hz to 20 kHz
Line/CD Input to any Output:
±0.5 dB
20 Hz to 20 kHz
Phono Input to any Output:
±1 dB of RIAA EQ curve
Distortion (THD & IMD)
THD @ Main Output, 20 Hz to 20 kHz
Mic Input @ 30 dB Gain: Less than 0.0075%
Line/CD Input @ 0 dB Gain: Less than 0.0075%
Phono Input: Less than 0.01%
THD @ Phones Output, 20 Hz to 20 kHz
Line Input @ 0 dB Gain: Less than 0.03%
10mV rms input, gain at –1 dB FS output
SMPTE IMD @ +4 dBu Output
Mic Input @ 30 dB Gain: Less than 0.008%
Line/CD Input @ 0 dB Gain: Less than 0.008%
Common Mode Rejection Ratio (CMRR)
Mic Input (Gain = maximum):
Greater than 60 dB @ 1 kHz
Crosstalk
Adjacent Inputs or Input to Main Output:
Less than –85 dB @ 1 kHz
Noise Characteristics
Equivalent Input Noise (E.I.N.) (20 Hz to 20 kHz)
Mic Input (150 Ω source impedance): Less than –123 dBu
Phono Input (500 Ω/500 mH source impedance): Less than 0.3 μV
CD/Line Input (150 Ω source impedance): Less than –110 dBu
Dynamic Range (Main Out): Greater than 100 dB
Maximum Input Levels (rated at 1% THD)
Mic Input (Gain @ minimum): +9 dBu
CD and Line Inputs (PGM Gain = 0 dB): +22 dBu
FX Input: +22 dBu
Phono Input: 78 mV @ 1kHz

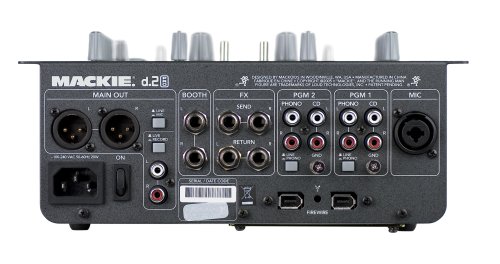

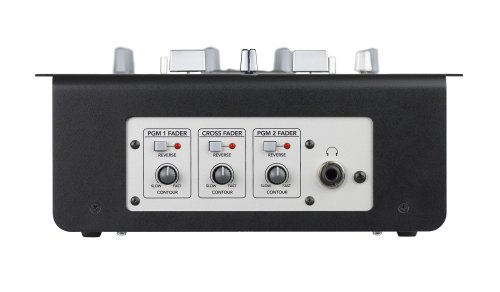

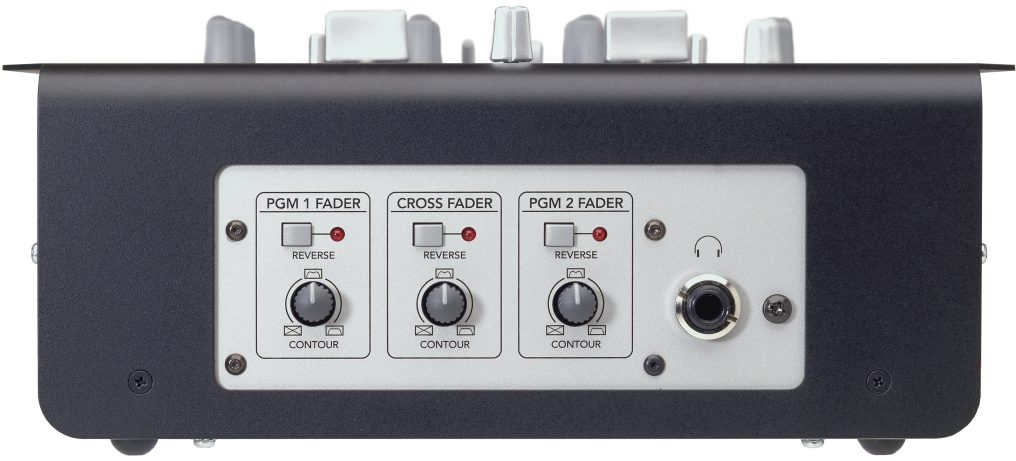

Input/Output Characteristics:
Input Gain Control Range:
Mic Input: +13 dB to +63 dB
PGM Input: OFF to +13 dB
FX Return: OFF to +13 dB
Input Impedance:
Mic Input: 2.4 kΩ balanced
CD/ Line Input: 20 kΩ balanced
FX Return: 20 kΩ balanced
Phono Input: 47.5 kΩ shunted with 200 pF
Maximum Output Levels:
XLR Main Output: +22 dBu
RCA Main Output: +22 dBu
Booth Output: +22 dBu
FX Send: +22 dBu
Phones: 15 volts rms into 8Ω (28 watts)
Output Impedance:
Main XLR/RCA Output: 150 Ω
Booth Output: 150 Ω
FX Send: 150 Ω
Phones: 25 Ω

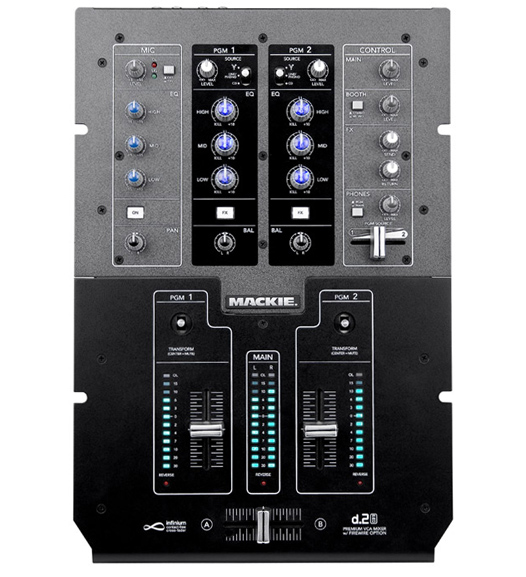

Equalization
Mic Channel
Low: ±15 dB @ 80 Hz
Mid: ±15 dB @ 2.5 kHz
High: ±15 dB @ 12 kHz
PGM Channel
Low: +10/–inf dB @ 300 Hz
Mid: +10/–inf dB @ 1 kHz
High: +10/–inf dB @ 4 kHz
VU Meters
12-segment pre-fader PGM meters
12-segment pre-fader Main Mix meters
OL (+20), +10, +7, +4, +2, 0, –2, –4, –7, –10, –20, –30
0 LED = +4 dBu
Mic Input Signal Present LED (Sensitivity): –20 dBu
AC Power Requirements:
Power Consumption:
20 watts
Universal AC Power Supply:
100 VAC – 240 VAC, 50-60 Hz
Physical Dimensions and Weight:
Height:
15.49"/393.4 mm (including knobs and connectors)
Width:
10"/254 mm
Depth:
4.62"/ 117.3 mm (including knobs and connectors)
Weight:
11 lb/5 kg (with FireWire card)
The d.2 mounting slots are compatible with the Odyssey Battle Bridge. This consists of two L brackets which bolt to the d.2 and allow you to fi t it securely between two turntable cases. See www.odysseygear.com for more details.
Options
d.2 FireWire Interface Card
