Q-SPAND（MKⅡ,PRO）

概要

低価格4chミキサー。WOWシステムエンハンサーを搭載し、メリハリのあるサウンドの演出が可能に。コンパクトな4Uボディーで野外イベントにもオススメです！

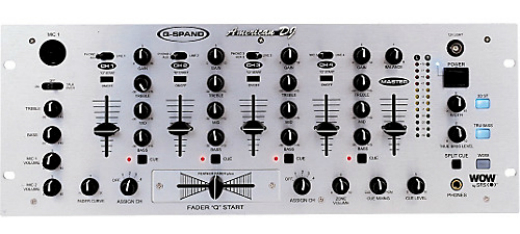

Q-SPAND

スペック表

Three phono, four line, three aux, and three mic ins
Fader "Q" Start
WOW Sonic Enhancer
Feather fader plus cross fader
Balanced XLR outs
Bass and treble for each mic
Split cue on high-level headphone out
And a lot more

価格

• $399.95（新品・当時）

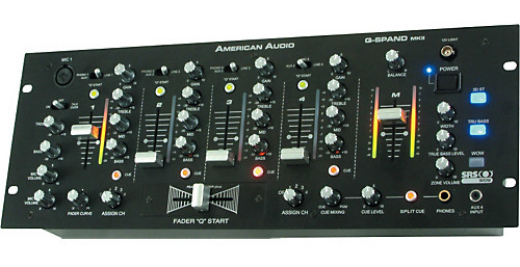

Q-SPAND MKII

ボタンやノブ形状が変更されたほか、AUX入力などが追加された。

スペック表・Q-SPAND MKII

Specifications
4-channel, 19-inch professional DJ mixer
3 Phono, 4 Lines, 3 Auxiliaries & 3 Mics
WOW™ by SRS® button - Sonic enhancer with 3 dimensional sound
3D stereo button with width level knob (Highs)
Tru bass button with Bass level knob (Lows)
Stream flow™ LED indicators on each channel
Mini plug input on face of mixer for use with MP3 players
Fully adjustable crossfader curve
Fader “Q” Start
Trim output adjustment on rear
Balanced XLR outputs
Gain, bass, mid & treble control for each channel
Volume, treble and bass control for each mic
Improved mic circuitry and longer lasting line faders
Dimensions: 7” L x 19” W x 3.8” H / 177mm x 482.6mm x 97mm
Weight: 7.5 lbs. / 3.4kg.

価格

• $399.95（新品・当時）

Q-SPAND MKII
http://www.adj.com/q-spand-mkii

取扱説明書
https://www.soundhouse.co.jp/download/a_audio/qspandmkii.pdf

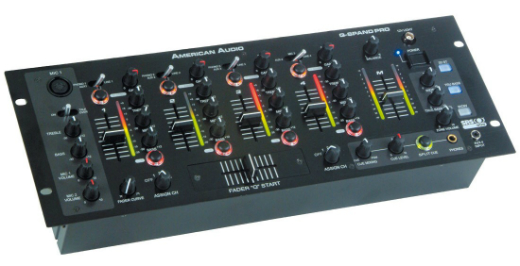

Q-SPAND PRO

音質改善の他、各チャンネルのStream Flow LEDインジケーターの搭載やAUX入力などが追加された。

スペック表・Q-SPAND PRO

Model: Q-SPAND PRO 4 Channel Mixer Dual Voltage:
POWER SUPPLY: AC 115v~60Hz/230v-50Hz, User Selectable
Single Voltage:
AC 100V, 50Hz (For Japan)
AC 110V, 60Hz (For Colombia)
AC 120V, 60Hz (For USA, and Canada)
AC 127V, 60Hz (For Mexico)
AC 220V, 50Hz (For Chile, and Argentina)
AC 220V, 60Hz (For Philippines, and Korea)
AC 230V, 50Hz (For Europe, U.K., New Zealand, South Africa,
and Singapore)
AC 240V, 50Hz (For Australia)
DIMENSIONS: 482.6mm (W) x 177mm (D) x 109.6mm (H)
WEIGHT: 8.37 Lbs. / 3.8Kgs.
CROSSFADER: Feather Fader Plus - VCA detecting fader start control -
Low grounding impedance crossfader
POWER CONSUMPTION: 21W typical, 31W w/ full headphone output
HEADPHONE IMPEDANCE: 16 Ohms
OPERATING TEMPERATURE: 5 to 35 deg. C; Humidity: 25 to 85% RH
(non-condensing); Storage Temperature: -20 to 60 deg. C
Input Sensitivity (Level/Impedence): Note: 0dBV output, load = 100K OHM
LINE: 10K OHM / -14dBV (200mV) +/-2dB
AUX: 47K OHM / -14dBV (200mV) +/-2dB
PHONO: 47K OHM / -54dBV (2mV) +/-2dB
MICROPHONE 1, 3: 2.2K OHM / -54dBV (2mV) +/-2dB
MICROPHONE 2: 2.2K OHM / -60dBV (1mV) +/-2dB
Output Sensitivity (Level/Impedence): Note: 0dBV=1Vrms
MASTER: 520 OHM
ZONE: 1K OHM / 0dBV (1V) +/-2dB
MASTER OUT (XLR): 600 OHM / 2.21dBm (1V) +/-2dB
REC OUT (RCA): 2.2K OHM / -10dBV (316mV) +/-2dB
PHONES: (LOAD=32 OHMS) 33 OHM / 0dBV (1V) +/-2dB
Maximum Output: (LOAD = 47K, THD = 1%)
MASTER/ZONE: MORE THAN +18 dBV (8.0V)
PHONES: (LOAD=32 ohms) MORE THAN +4dBV (1.6V)
CHANNEL BALANCE: WITHIN 3dB
Frequency Response: (Master Output, EQ Flat, Assign Off, SRS Off)
LINE/AUX: 20 - 20KHz +/-2dB
PHONO: 20 - 20KHz +2 /-3dB (RIAA)
MICROPHONE: 20 - 20KHz +2 /-3dB
Noise: (maximum output) JIS-A weighted
LINE/AUX: LESS THAN -90dBV (VCA OFF)
LESS THAN -82dBV (VCA ON)
PHONO: LESS THAN -65dBV
MIC 1,3: LESS THAN -64dBV
MIC 2: LESS THAN -60dBV
THD - Total Harmonic Distortion: (MASTER = 0dBV OUTPUT, w/ 20KHz LPF):
LINE: LESS THAN 0.02% 20 - 20KHz
CROSS TALK: (MASTER = 0dBV OUTPUT)
LINE: MORE THAN 65dB AT 1KHz BETWEEN L AND R
MORE THAN 70dB AT 1KHz BETWEEN CHANNELS
Channel Equalizer:
BASS: +12 +/-2dB at 70Hz
TECHNICAL SPECIFICATIONS

■価格

• 20.000円前後（新品・当時）

Q-Spand PRO
http://www.americandj.eu/en/q-spand-pro.html
