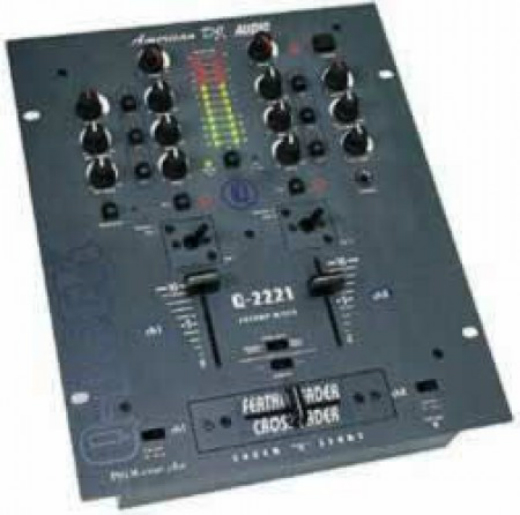

FEATURES:
• 2 phono, 2 line, 2 auxiliaries, and 1 microphone input
• Hamster Switch for changing cross fader position.
• 100% cut buttons for treble, mid and bass of each channel.
• Fader Q Start w/ On/Off switch (for use with the American DJ CD Players with Fader Q Start).
• -30dB Rotary Kills for treble, bass and mids.
• Changeable transformer switch to up/down or left/right.
• High output to headphones.
• 2 separate headphone inputs.
• Separate gain control for each channel.
• Bass, mid & treble on microphone.
• Super clean signal to noise ratio.
• Fader Curve Switch - changes from a normal curve to a quick curve (for crabbing).
• Equipped with high quality Alps Feather Fader (FF-3) Crossfader(replaceable/made in Japan).
• Soft-touch rubber knobs for better control.
• Line Output: 25V peak to peak, (+21.5dB).
• Signal-To-Noise Ratio: Line >85dB / Mic >78dB / Phono >80dB.
• Channel EQ: -30dB - +20dB for bass, mid and treble.
• Frequency Range: 20Hz - 20kHz, +/-1dB
• Distortion: <0.03%. Talkover: -15dB.
• Headphone Impedance: 16 Ohms.
• Power Supply: 115V/220V AC, 50/60Hz switchable.
• Crossfader: FF-4.
• Dimensions: 12.5 x 10.25 x 4 inches.

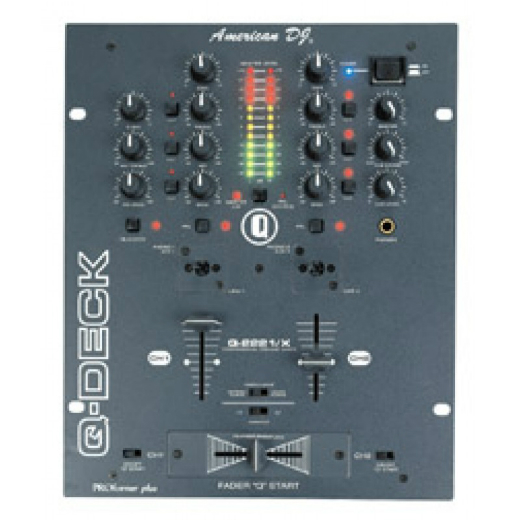

Q-2221X
+
スペック表・Q-2221X
Technical Specifications - Model Q-2221/X
Model: Q2221/X, 2 Channel Mixer
Power supply: AC 115/230V, 50/60Hz switchable
Dimensions: 12.5" W x 10.25" D x 4" H / 252 x 305 x 102 mm
Weight: 8 lbs. / 3.5 kg
Crossfader: Optical detecting fader start control - Low grounding impedance crossfader
Power Consumption: 5W typical, 7W w/ full headphone output
Headphone impedance: 16 Ohms
Input Sensitivity (Level/Impedence):
Line: -14dBV (200mV) 12K Ohm +/- 2dB
Microphone: -49 dBV (3.6mV0 / 3K Ohms +/- 3 dB
Phono: -48dBV (4mV) 47K Ohms +/- 3dB
Aux: -14 dBV (200mV) / 47K Ohms +/- 2dB
Output Sensitivity (Level/Impedence):
Rec Out (RCA): -10dBV (316mV) / 2.2K Ohms +/- 2dB
Master Out (RCA): 0dBV (1V) / 610 Ohms +/-2dB
Phones (Load+32Ohms): -8dBV (0.4V) /33 Oms +/-2dB
Maximum Output (Load + 47K, THD = 5%)
Rec: < 18dBV (8V)
Master (RCA): < 18dBV (8V)
Channel Balance: Within 3dB
Frequency Response:
Line: 20Hz - 20KHz, ± 1dB • Phono: 20Hz - 20KHz, ± 1.5dB (RIAA) • Aux: 20Hz - 20KHz, ± 1dB
• Microphone: 20Hz - 20KHz, +1,-3dB
THD - Total Harmonic Distortion (1Khz, 0dBV Output):
Master Output (Load = 47K Ohms): Less than 0.2%
Phono: (Load = 32K Ohms): Less than 0.5%
Channel Equalizer:
Bass = +12 ± 1dB, -22 ± 2 dB at 70KHz / Mid = +12 ± 1dB, -17 ± 2 dB at 1KHz / Treble = +13 ±
1dB, -27 ± 2 dB at 13KHz
Microphone Equalizer:
Bass = +12 ± 1dB, -12 ± 1 dB at 100KHz / Treble = +12 ± 1dB, -12 ± 1 dB at 10KHz
■価格
$500前後（新品）
Q-2221X
http://www.adj.com/q-2221-x

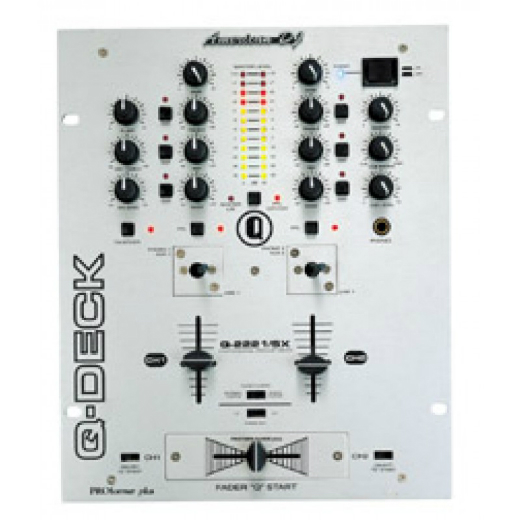

Q-2221SX
+
スペック表・Q-2221SX
2 phono, 2 line, 2 auxiliaries, & 1 microphone input
Fader "Q" Start w/ On/Off switch (for use with the American DJ CD Players with Fader "Q" Start) - fader allows auto return to preset digital cue points
Hamster Switch for changing cross fader position
100% cut buttons for treble, mid and bass of each channel
30dB Rotary Kills for treble, bass & mids
Changeable transformer phono/line switch to up/down or left/right
High output to headphones
Separate gain control for each channel
Bass, mid & treble on microphone
Super clean signal to noise ratio
Fader Curve Switch - changes from a normal curve to a quick curve (for crabbing)
Equipped with high quality Feather Fader plus Crossfader (replaceable)
Soft-touch rubber knobs for better control
Silver brushed aluminum face plate
Line Output: 25V peak to peak, (+21.5dB)
Signal-To-Noise Ratio: Line >85dB / Mic >78dB / Phono >80dB
Crossfader: FF-Plus
Dimensions: 12.5" W x 10.25" D x 4" H / 262 x 320 x 102 mm
Weight: 8 lbs. / 3.5 kg
