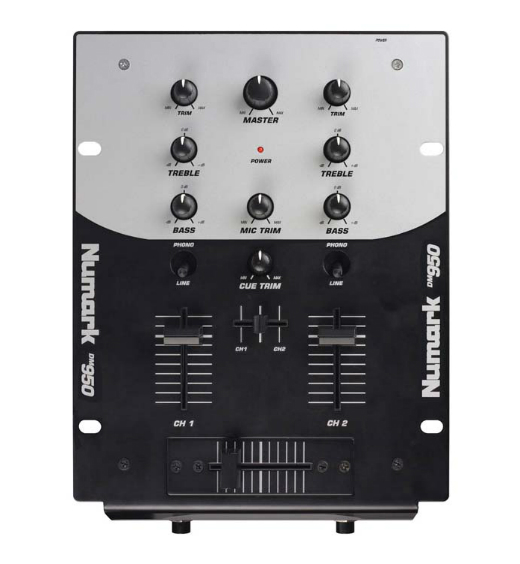

DM950

概要

安価な2chミキサー。

スペック表・英語

Inputs:

Line: 18K ohm input impedance; 200mV rms sensitivity for 4V output
Mic: 3K ohm input impedance unbalanced; 2mV rms sensitivity for 4V output; 20mV rms max input
Phono: 47K ohm input impedance; 3mV rms sensitivity @ 1KHz for 4V output
Outputs:

Master: 8V rms max
Headphone: 125mW into 32 ohm
Distortion: less than 0.1%
S/N Ratio:

(maximum output JIS-A weighted)
Line: Better than -90dB
Mic: Better than -59dB
Phono: Better than -65dB
Frequency Response:

Line: 20Hz-20KHz +/-3dB
Mic: 20Hz-20KHz +/-3, -1/-7dB
Phono: +/-3dB except for controlled attenuation of -10dB @ 10Hz to reduce rumble and feedback
Channel Equalizer:

Bass: +12/-18 ±3dB @100Hz
Treble: +13/-21.5 ±3dB@10KHz
General:

Dimensions (W x D x H): 197mm x 267.5mm x 100mm
Power consumption: 5 Watt typical; 8 Watt with full headphone output
Weight: 2.4kgs (incl. Transformer)

• See more at: http://www.numark.com/product/dm950#sthash.e1V8djKE.dpuf

■価格

DM950（英語）
http://www.numark.com/product/dm950
