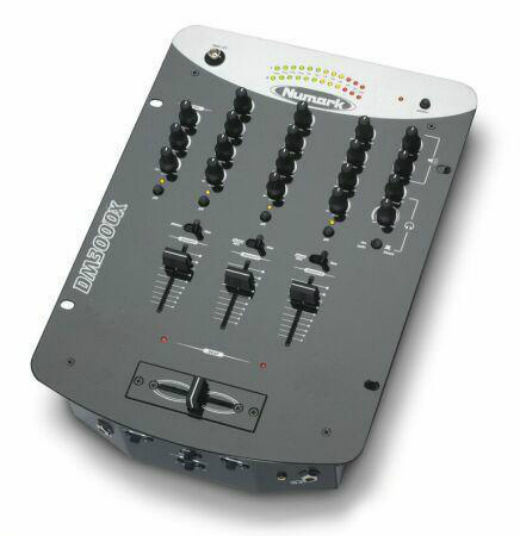

DM3000X

概要

3BandEQ、CFリバース設定可能な3chミキサー。

ブラック

ブルー/ゴールド

スペック表

Inputs:
Line: 10K ohm input impedance
83mV rms sensitivity for 1.22V output
Mic: 600 ohm input impedance unbalanced
1mV rms sensitivity for 1.22V output
65mV rms max input
Phono: 47Kohm input impedance
1.3mV rms sensitivity @ 1KHz for 1.22V output
Outputs:
Line: 9V rms max
Headphone: 0.5W into 47ohm
Distortion: less than 0.01%
Signal to Noise Ratio: (maximum output) JIS-A weighted
Line: Better than 92dB
Mic: Better than 82dB
Phono: Better than 85dB
Frequency response:
Line: 20Hz-20KHz +/-0.5dB
Mic: 20Hz-15KHz +/-0.5dB
Phono: +/-1dB except for controlled attenuation of -3dB
@ 20Hz to reduce rumble and feedback
Channel equalizer:
Bass: +12/-32dB @40Hz
Middle: +12/-32dB @1.35KHz
Treble: +10/-28dB @15KHz
Channel Kill (DM3002X only):
Bass: Better than 80dB at 40Hz
Middle: Better than 80dB at 1KHz
Treble: Better than 80dB at 15KHz
Power consumption:
16.7 Watt typical
21.2 Watt with full headphone output
Dimensions: 254mm(W)x 355mm(D)x 90mm(H)
Weight: 3.5 kgs
■価格

DM3000X
https://www.numark.com/product/dm3000x
