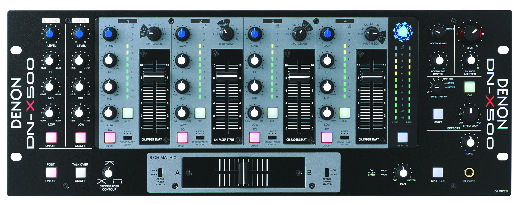

DN-X500

概要

3BandEQ、トークオーバー機能、2つのマイク入力などを搭載したラックマウントタイプのミキサー。別売りOPのロータリフェーダーキット（ACD-46）も存在する。

ACD-46 Rotary

スペック表

Matrix input assignment: 8 input sources are freely assignable to any channel or even multiple channels
8 line/2 phono switchable
4 smooth 60mm VCA channel faders
Responsive 45mm VCA crossfader with contour adjust
Independent channel PFL meters: all input levels can be adjusted in advance to match the gain levels, insuring a smooth transition between fades
Independent 3-band EQ kill (High-Mid-Low)
Independent EQ on/off switch
Booth output assign selector: pre-monitor any channel including Master through the booth
output as you would with your headphones, with volume control
External send/return control: multichannel assignable, effect on/off, effect cueing (pre & post), effect dry/wet knob
Independent channel A-B post switch (crossfader)
Powerful clean headphone output
Fader start (5V pulse): crossfader and channel fader-start trigger is compatible with
all Denon DJ CD/MP3 players
Compact 4U rackspace with recessed rear terminals
Independent 3-band main and aux mic EQ
Independent CUE system (all channels)
Mic talkover function with sensitivity adjustment
Split/cue headphone monitor with PFL metering
Master output -10dB attenuation switch
Master output stereo/mono switch
Record out - RCA/unbalanced
■価格

• 50.000円前後（新品）

DN-X500
http://denondj.com/products/view/dn-x500
