CS-19（R）

概要

Bass, Mid, Treble w/-32dBカット可能な5chミキサー。

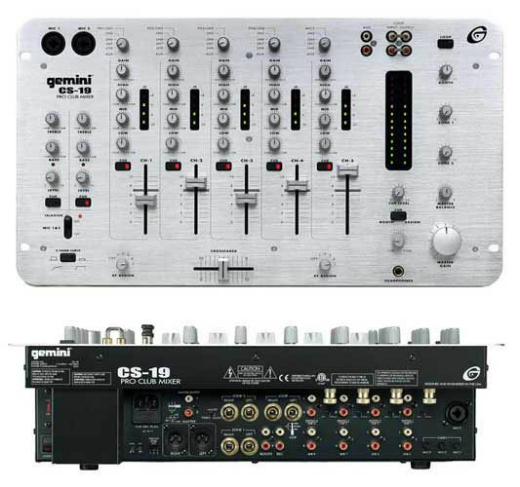

CS-19

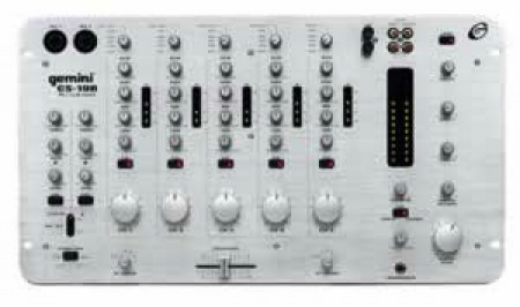

CS-19R

2002年5月に発売。ロータリーバージョン。

スペック表

INPUTS
feature Phono: 4.5mV
feature 47Kohm Mic 1, 2, 3: 2.5mV, 2Kohm, Balanced
feature Line: 150 mV 27Kohm
feature Aux: 150 mV 27 Kohm

OUTPUTS
feature Master/Zone 1, 2 (Balanced/Unbalanced): 0 dB 2V, 400ohm
feature Booth(Unbalanced): 0dB, 1V, 400ohm
feature Max: 20V Peak to Peak
feature Rec: 150mV 5Kohm
feature Infrasonic Filter: 15Hz, 18dB/Octave

GENERAL
feature Bass(Mic1,2): ± 12dB
feature Treble (Mic 1, 2): ± 12dB
feature Gain (Mic 1, 2, 3): 0 to -40dB
feature Low (Channels 1-5) :+ 12dB/- 32 dB
feature Mid (Channels 1-5): + 12dB/- 32 dB
feature High (Channels 1-5 ): + 12dB/- 32 dB
feature Gain (Channels 1-5): 0 to -30dB
feature Master Output Attenuation: 0dB, -6dB, -12dB
feature Frequency Response: 20Hz - 20KHz +/- 2dB
feature THD: (0.02)
feature S/N Ratio: Better than 80dB
feature Talkover Attenuation: 16dB
feature Power Source: 115/230V 50/60Hz 20W
feature Dimensions: 483 x 267 x 120mm
feature Weight: 3.4 kg

■価格

• $500前後（新品）

両機種共用取扱説明書（英語）
http://www2.produktinfo.conrad.com/datenblaetter/300000-324999/300898-an-01-en-Gemini_Club_Mixer_CS_19.pdf
