PMC-46（MkⅡ）

概要

House Loudボタンが特徴的なミキサー。

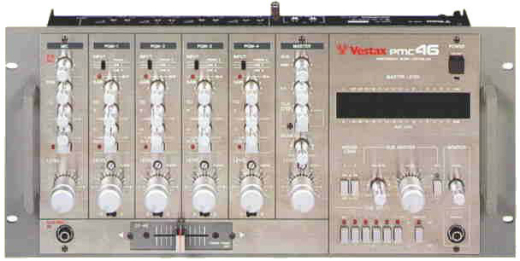

PMC-46

1997年発売。
本体フレームブラック

本体フレームグレー

スペック表・PMC-46

Features
feature 4+1 Channel Stereo mixer
feature 15 inputs: 4 Phono, 8 Line, 3 Mic
feature Master Output XLR and 1/4 Jack
feature Booth Output
feature Microphone on fader
feature Microphone talkover
feature 2 Band EQ per channel
feature Gain per Channel
feature LED Beat indicators per channel
feature Rotary Faders only
feature 2 Band EQ per channel
feature Master Send/Return
feature Crossfader with VCA control (CF-40)

Specifications
feature Frequency Response: 20 - 20kHz
feature 19'' Rack mountable (4U)
feature Dimensions (WxDxH): 482 x 222 x 82 mm
feature Weight: 5 kg

PMC-46取扱説明書（英語）
https://www.manualslib.com/manual/399945/Vestax-Pmc-46.html

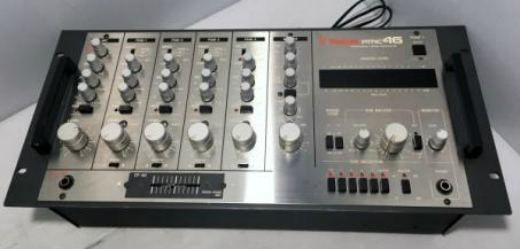

PMC-46 MkⅡ

1999年発売。フレームの取手が無くなった他、ノブの配置変更などが行われている。

スペック表・PMC-46 MkⅡ

Features
feature 4+1 Channel Stereo mixer
feature 15 inputs: 4 Phono, 8 Line, 3 Mic
feature Master Output XLR and 1/4 Jack
feature Booth Output
feature Microphone on fader
feature Microphone talkover
feature 2 Band EQ per channel
feature Gain per Channel
feature LED Beat indicators per channel
feature Analogue VU Meters
feature Rotary Faders only
feature Rotary curve control per fader
feature 2 Band EQ per channel
feature Master Send/Return
feature Crossfader with VCA control (CF-40)
feature Cross Fader Curve control

Specifications
feature Frequency Response: 20 - 20kHz
feature 19'' Rack mountable (4U)
feature Dimensions (WxDxH): 482 x 222 x 82 mm
feature Weight: 5 kg

PMC-46 MkⅡ取扱説明書（英語）
https://www.manualslib.com/manual/335077/Vestax-Pmc-46mkii.html
