概要
スペック表
Mixer section
Each channel can be assign to a two midi decks (A/C, B/D)
High quality Alpha crossfader
Replaceable Crossfader.
Long duration Alpha faders
Three tone band EQ with kill
Cue buttons for monitoring and Cue mix
Led Vu meter for modulation level
Specifics controls for Loop Recorder section of Traktor.
Player Section
2 big jog-wheels with adjustable "Touch Sensitive" system
3 jog-wheel modes: vinyl,
CDJ and search.
Play, Cue and Cup big buttons.
High precision pitch faders.
Double pitch bend button.
4-Hot cue.
4-Play Sample.
Autoloop section.
Total control over Effects and Samples with 3 rotary buttons, 4 buttons and encoder knob.
Master section
Master level knob.
Headphones level knob.
Mixer knob Cue/Master for headphones.
Microphone level knob.
ON/OFF microphone switch
Crossfader adjust curve knob.
Browser" encoder for easy library search.
Input 1/Aux In gain knob.
Connections
2 Phono/Line inputs (stereo RCAs).
Aux Input (stereo Jack 3.5 mm).
Mic. Input (Jack 6.3 mm).
Headphone output (stereo Jack 6.3 mm).
Headphone output (stereo Jack 3,5 mm).
Master output (stereo RCA).
Master balanced output (Jack 6.3mm).
USB (slave).
Power supply 6 V input.
PC System requirements Traktor 2.1.3
Windows XP (updated SP, 32 bit), Win7 (updated SP, 32 bit/64 bit)
Pentium IV 2.4 GHz / Intel Core Duo /AMD Athlon 64
2 GBRAM.
CD ROM/DVD drive
500 MB free disk space required.
PC System requirements Traktor 2.5.0
Windows XP (updated SP, 32 bit), Win7 (updated SP, 32 bit/64 bit), USB 2.0.
Pentium IV 2.4 GHz / Intel Core Duo /AMD Athlon 64.
2 GBRAM (4 GBRAM recommended).
CD Rom/DVD drive.
1 GB free disk space required.
1024 x 768 monitors resolution.
High velocity internet connection.
MAC System requirements Traktor 2.1.3
Mac OS X 10.6, Intel® Core™ 2 Duo
2 GB RAM
CD Rom/DVD drive
500 MB free disk space required.
MAC System requirements Traktor 2.5.0
Mac OS X 10.6 or 10.7, Intel® Core™ 2 Duo
2 GB RAM
CD ROM/DVD drive
1 GB free disk space required.
Audio Specifications
Input/Output impedance & sensitivity: (maximum gain, load=100k)
Input impedance and reference input level
Line: 47k ohm /-0dbv
Aux: 47k ohm /-0dbv
Phono: 47k ohm /-50dbv
Mic: 10k ohm /-54dbv
Output impedance
Master: 300 ohm
Balanced: 600 ohm
Phones (load= 32ohms): 10 ohm
SW set on thru: (master gain max.)
Output level
Line/aux:
Master out: 0db +/-2db
Balance out: 2.2dbm +/-2db
Phono/mic:
Master out: -14db +/- 2db
Balance out: -11.8dbm +/- 2db
Frequency response: (EQ flat, maximum gain, master out=0dbv)
Line: 20 - 20 kHz ± 3db
Aux: 20 - 20 kHz ± 3db
Phono: 20 - 20 kHz + 1/-3db (RIAA) (master out -14db)
Mic: 20 - 20 kHz + 2/-3db
THD + n: (EQ flat, maximum gain, master=0dbv, 20khz lPF, a-weighted)
Line: less than 0.05% at 1 kHz
Aux: less than 0.05% at 1 kHz
Phono: less than 0.15% at 1 kHz
Mic: less than 0.15% at 1 kHz
S/N ratio: (maximum gain, EQ flat, 20khz lPF, a-weighted, master=0dbv)
Line: more than 80db
Aux: more than 80db
Phono: more than 80db
Mic: more than 75db
L/Rr separation: (maximum gain, EQ flat, 20khz lPF, a-weighted, master=0dbv)
Line: more than 70db
Aux: more than 70db
Phono: more than 70db
Channel balance: within 2db
Maximum input: (maximum gain, 1 kHz, THD=1%, w/20kHz lPF, a-weighted)
Line: more than +6dbv
Aux: more than +6dbv
Phono: more than -30dbv
Mic: more than -35dbv
Maximum output: (maximum gain, 1 kHz, THD=1%, w/20kHz lPF, a-weighted)
Master: more than +6db (2v)
USB slave player section: (signal format: MP3, 128kbps, Sony sound forge8.0)
1 (Sony sound audio device type: Akiyama Asio driver default playback device: pulsar 1/2 windows level at max. out)
2 (Sony sound audio device type: Akiyama Asio driver default playback device :pulsar 3/4 windows level at max. out)
3 (w/20khz IPF, a-weighted)
Output level (tcd782 trk2)*1
Master out: 0dbv +/-1db
Balance out: 2.22dbm +/-1db
Phones out: 0dbv +/-1db *2
Channel balance: within 2db
Frequency response (tcd781 trk1,4,16) *1
Master out: 17 - 16k Hz +1/-3db
Balance out: 17 - 16k Hz +1/-3db
Phones out: 17 - 16k Hz +1/-3db*2
THD + n (tcd782 trk2) *1,*3
Master out: less than 0.05%
Balance out: less than 0.05%
Phones out: less than 0.15% *2,*3
S/N ratio: (tcd782 trk2,8) *1,*3
Master out: more than 80db
Balance out: more than 80db
Phones out: more than 80db *2,*3
L/R separation: (tcd782 trk9,11) *1,*3
Master out: more than 75db at 1 kHz
Balance out: more than 75db at 1 kHz
Phones out: more than 60db at 1 kHz * 2,*3
Recording and playback: (line input 1khz -8dbv, aux input 1khz -8dbv, phono input 1khz -44dbv, mic input 1khz -48dbv
playback: mic off *1,*3)
Output level: -14dbv +/-2db
THD + n:
Line, aux: less than 0.05%
Phono: less than 0.15%
Mic: less than 0.15%
General
Power supply: AC 230V, 50Hz. / DC 6V. 2 A
Temp: +5°C - +35°C
Weight: 2,90Kg
Dimensions: 410(W) x 297(D) x 65(H) mm.
Includes
Pulsar
Traktor LE 2 Setup CD.
CD Akiyama software CD.
USB cable.
Quick start guide for Traktor 2 PRO (A2 format).
価格

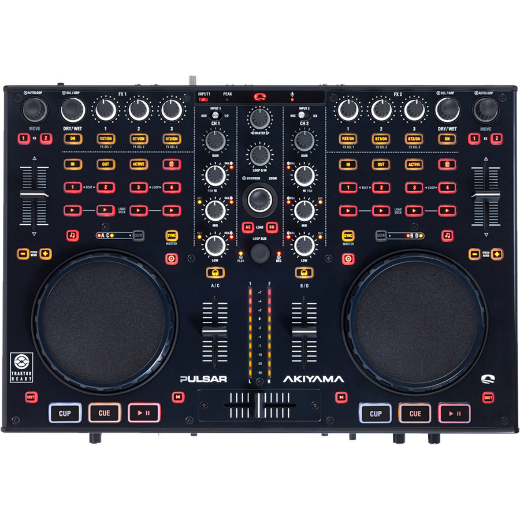

PULSAR
http://www.akiyamadj.com/akiyama+pulsar+2+channels+midi+controller-p-PULSAR.html?language=en
