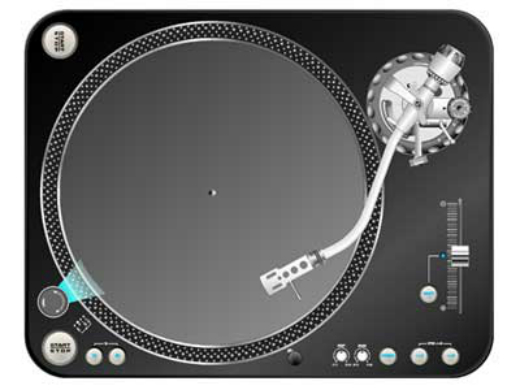

DJ-5500

概要

OEM元として様々なブランドから販売されているタンテ。ハンピンブランドでは発売されていないかも。

スペック表

TURNTABLE SECTION:

Type: 3-speed full manual
Motor: 16-pole, 3-phase,brushless DC motor
Driving Method: Direct drive
Turntable Platter: 332mm dia. Aluminum diecast
Speeds: 331/3, 45 and 78 rpm
Wow and Flutter: Less than 0.1% WRMS (JIS WTD) with 31/3 rpm
S/N Ratio: More than 55dB (DIN-B)
Pitch Controls: +/- 10%,+/- 20%,+/-50%
Starting Torque: More than 4.5 kgf.cm
Braking System: Electronic brake
Starting Time: 0.2~6 sec.(Adjustable)
Braking Time: 0.2~6 sec.(Adjustable)
Time for Speed Change: Less than 0.2 sec. from 331/3 to 45 rpm.
Less than 0.2 sec. from 45 to 331/3 rpm.
Less than 0.5 sec. from 331/3 to 78 rpm

TONEARM SECTION:

Type: Static balanced S-shaped tonearm with detachable headshell
Effective Arm Length: 230mm
Overhang: 15mm
Tracking Error Angle: Less than 3 degrees
Applicable Cartridge Weight: 6~10g
Anti-skating Range: 0-3g
Output: 2.2~5.8mV at 1KHz 5cm/sec (HP-4005)
Frequency Response: 20Hz-20KHz
Channel Separation: More than 15dB
Channel Balance: Within 2.5dB at 1KHz
Needle Pressure range: 2~5g (Cartridge 505SKII)
Height of cue (first track): 7.5~10mm
Descend of cue: 1~3sec

GENERAL SECTION:

Power Supply AC 120V, 60Hz
Power Consumption 13Watts
Dimensions 450 (W) x 353 (D) x 86 (H) mm
Weight 11 Kgs

ACCESSORIES SUPPLIED

Instruction manual x 1,
Headshell x 1, 45 rpm adaptor x 1,
Counterweight x 1, AC cord x 1,
Target light x 1, Platter x1
Connecting cord x 1
Slipmat x 1

DJ-5500
https://www.gearogs.com/gear/21233-Hanpin-DJ-5500
