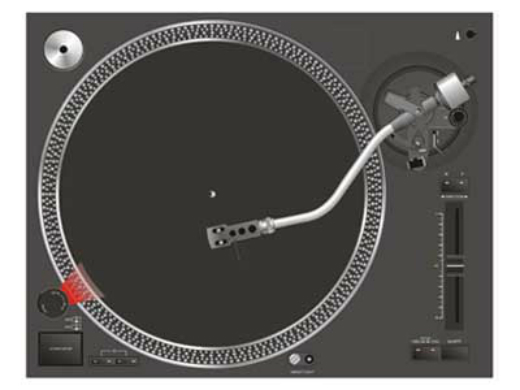

DJ-3560

概要

OEM元として様々なブランドから販売されているタンテ。ハンピンブランドでは発売されていないかも。

スペック表

1. APPLICATION:
This specification applies to the direct drive turntable unit DJ-3560

2. STANDARD TEST CONDITION:
2-1 Ambient Temperature 20 +/- 2 degC
2-2 Relative Humidity 65% +/- 5%
NOTE: Measurements can be carried out between 5 degC to 35 degC and 45% to 85% relative humidity.

3. TURNTABLE SECTION:
3-1 Type 3-speed full manual
3-2 Motor 8pole, 3phase,brushless DC motor
3-3 Driving Method Direct drive
3-4 Turntable Platter 330mm dia. Aluminum diecast
3-5 Speeds 331/3 and 45rpm and 78rpm
3-6 Wow and Flutter Less than 0.2% WRMS (JIS WTD) with 331/3rpm
3-7 S/N Ratio More than 50dB (DIN-B)
3-8 Pitch Controls +/- 10%，+/- 20%.
3-9 Starting Torque More than 1.6 kgf.cm
3-10 Braking System Electronic brake
3-11 Starting Time Less than 1 sec.
3-12 Braking Time Less than 1 sec.
3-13 Time for Speed Change
Less than 1 sec. from 33 to 45 rpm.
Less than 1 sec. from 45 to 33 rpm.
Less than 1 sec. from 33 to 78 rpm
3-14 High of cue(first track) 8~10.5mm
3-15 Descend of cue Less than 5sec

4. TONEARM SECTION:
4-1 Type
Static balanced S-shaped tonearm with detachable headshell

4-2 Effective Arm Length
230.5mm

4-3 Overhang
16mm

4-4 Tracking Error Angle
Less than 3 degree

4-5 Tracking Force Adjustment Range
3-4g

4-6 Applicable Cartridge Weight
6-10g

4-7 Anti-skating Range
0-7g

4-8 Output
1.5~3.6mV at 1KHz 5cm/sec (HP-4005)

4-9 Frequency Response
20Hz-20KHz

4-10 Channel Separation
More than 15 dB

4-11 Channel Balance

Within 2.5dB at 1KHz

5. GENERAL SECTION:
5-1 Power Supply AC 115/230V, 50/60Hz
5-2 Power Consumption 11 Watts
5-3 Dimensions 450 (W) x 352 (D) x 157 (H) mm
5-4 Weight 10.6 Kgs

6. ACCESSORIES SUPPLIED
Instruction manual x 1,
Headshell x 1, Cartridge x 1,
45 rpm adaptor x 1,
Counter weight x 1, AC cord x 1,
Dust cover x 1, Hinge x 2,
Platter x1, Slipmat x 1

DJ-3560
http://www.hanpin.com.tw/Products/02_DJ-3560.html
