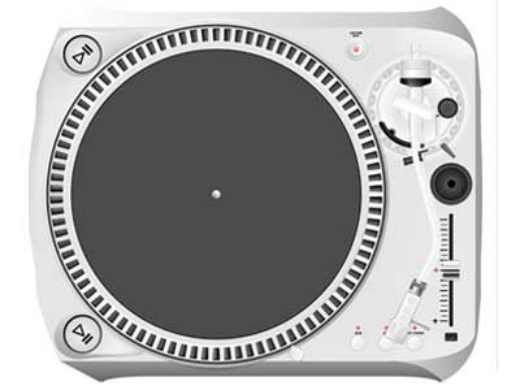

DJ-U1160

概要

DJ-1160のUSB出力追加モデル。

スペック表

1. APPLICATION:
This specification applies to the direct drive turntable unit DJ-U1160A

2. STANDARD TEST CONDITION:
2-1 Ambient Temperature 3 +/- 2 degC
2-2 Relative Humidity 65% +/- 5%
NOTE: Measurements can be carried out between 5 degC to 35 degC and 45% to 85% relative humidity.

3. TURNTABLE SECTION:
3-1 Type 2-speed full manual
3-2 Motor 8pole,2phase,brushless DC motor
3-3 Driving Method Direct drive
3-4 Turntable Platter 330mm dia. Aluminum diecast
3-5 Speeds 331/3 and 45 rpm
3-6 Wow and Flutter Less than 0.15% WRMS (JIS WTD) with 331/3rpm
3-7 Pitch Controls +/- 10%
3-8 Braking System Electronic brake
3-9 Starting Torque More than 1kgf.cm
3-10 S/N Ratio More than 60dB (DIN-B)
3-11 Starting Time Less than 1 sec with 331/3
3-12 Braking Time Less than 1 sec. with 331/3
3-13 Time for Speed Change
Less than 1 sec. from 331/3 to 45 rpm.
Less than 1 sec. from 45 to 331/3 rpm.
3-14 USB Function USB rec. Function
A/D,D/A 16BIT 44.1KHz or 48KHz USB SELECTABLE
Computer interface USB 1.1 COMPLIANT WINDOWS XP or MAC OSX

4. TONEARM SECTION:

4-1 Type
Static balanced S-shaped tonearm with detachable headshell

4-2 Effective Arm Length
230.5mm

4-3 Tracking Error Angle
Less than 3 degree

4-4 Applicable Cartridge Weight
6~10g

4-5 Anti-skating Range
0-4g

4-6 Phono Output Level
4-7 Line Output Level

1.5~3.6mV at 1KHz 5cm/sec (HP-4005)
90~216mV at 1KHz 5cm/sec (HP-4005)

4-8 Frequency Response
20Hz-20KHz

4-9 Channel Separation
More than 15dB

4-10 Channel Balance
Within 2.5dB at 1KHz

4-11 Needle Pressure range
3~4g

4-12 High of cue(first track)
6~10.5mm

4-13 Descend of cue
1~3sec

5. EQ AMP:
5-1 Output 150mV +/-4dB (IN: 2.5 mV 1KHz)
5-2 RIAA 20Hz~20KHz +1/-3dB (IN: 1.5 mV 1KHz)

6. GENERAL SECTION:
6-1 Power Supply AC 115/230V,50/60Hz
6-2 Power Consumption 8 Watts
6-3 Dimensions 449 (W) x 370 (D) x 145 (H) mm
6-4 Weight 6.5 Kgs

7. ACCESSORIES SUPPLIED
Instruction manual x 1,
Headshell x 1, Cartridge x 1,
45 rpm adaptor x 1,
Counter weight x 1, AC cord x 1,
RCA cable x 1, Platter x1
Slipmat x 1, Target light x 1
USB cable x 1, DISC x 1

DJ-U1160
