1. 目的

  • Serial I/Fを介した接続方法について動作確認を行います。

2. 構成

2.1. 設定概要

  • 特になし

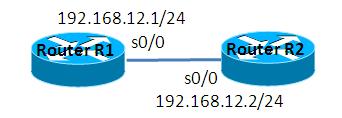

2.2. 構成図

2.3. netファイル

model = 3620

[localhost]

    [[3620]]
        image = C:\Program Files\Dynamips\images\c3620-j1s3-mz.123-18.bin
        ram = 128

    [[ROUTER R1]]
        s0/0 = R2 s0/0

    [[ROUTER R2]]

2.4. 初期設定

  • R1
初期設定
  • R2
初期設定

3. [検証] HDLC

3.1. HDLCの設定

HDLCによる接続を設定します。
Serial I/Fではカプセル化のデフォルトがHDLCであるため、HDLCを明示的に設定する必要はありません。注意すべき点と言えば、片方をDTE, もう片方をDCEとして設定する事くらいです。

R1(config)#interface Serial0/0
R1(config-if)#ip address 192.168.12.1 255.255.255.0
R1(config-if)#no shutdown

R2(config)#interface Serial0/0
R2(config-if)#ip address 192.168.12.2 255.255.255.0
R2(config-if)#clock rate 64000
R2(config-if)#no shutdown

3.2. 疎通確認

R1, R2間で疎通可能な事を確認します。
R1#ping 192.168.12.2

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.12.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 28/32/36 ms
R1#

3.3. 設定確認

HDLCでカプセル化されている事を確認します。
R1#show interfaces Serial 0/0
Serial0/0 is up, line protocol is up
  Hardware is M4T
  Internet address is 192.168.12.1/24
  MTU 1500 bytes, BW 1544 Kbit, DLY 20000 usec,
     reliability 255/255, txload 1/255, rxload 1/255
  Encapsulation HDLC, crc 16, loopback not set <- カプセル化の方法を確認します。

4. [検証] PPP 基本設定

4.1. PPP 設定投入

R1, R2をPPPで接続します。設定は以下の通りです。
R1(config)#interface Serial0/0
R1(config-if)#encapsulation ppp

R2(config)#interface Serial0/0
R2(config-if)#encapsulation ppp

4.2. 疎通確認

R1, R2間で疎通可能な事を確認します。
R1#ping 192.168.12.2

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.12.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 32/45/84 ms
R1#

4.3. ルーティングテーブルの確認

PPPで接続されている場合、ルーティングテーブル上はConnectedで表示されます。
R1#show ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route

Gateway of last resort is not set

     192.168.12.0/24 is variably subnetted, 2 subnets, 2 masks
C       192.168.12.0/24 is directly connected, Serial0/0
C       192.168.12.2/32 is directly connected, Serial0/0
R1#

5. [検証] PPP 静的なアドレス割当

5.1. 設定投入

PPPはIPCP(Internet Protocol Control Protocol)という規格を用いて、ピアにIPアドレスを割り当てる事ができます。以下は、R1に11.11.11.11/32を割り当てる設定です。
R1(config)#interface Serial0/0
R1(config-if)#ip address negotiated

R2(config)#interface Serial0/0
R2(config-if)#peer default ip address 11.11.11.1

5.2. 設定確認

R1に割り当てられたIPアドレスを確認します。設定直後は、IPアドレスが割り当てられていません。
R1#show ip interface brief
Interface                  IP-Address      OK? Method Status                Protocol
Serial0/0                  unassigned      YES manual up                    up
Serial0/1                  unassigned      YES unset  administratively down down
Serial0/2                  unassigned      YES unset  administratively down down
Serial0/3                  unassigned      YES unset  administratively down down
R1#

IPCPによってアドレスが割り当てられる様子は、debug ppp negotiationで確認できます。デバッグを有効にし、R1 s0/0をshut no shutします。
R1#debug ppp negotiation
PPP protocol negotiation debugging is on
R1#
R1(config)#interface Serial 0/0
R1(config-if)#shutdown
R1(config-if)#
*Mar  1 00:11:48.599: %LINK-5-CHANGED: Interface Serial0/0, changed state to administratively down
*Mar  1 00:11:48.635: Se0/0 PPP: Sending Acct Event[Down] id[2]
*Mar  1 00:11:48.639: Se0/0 CDPCP: State is Closed
*Mar  1 00:11:48.639: Se0/0 IPCP: State is Closed
*Mar  1 00:11:48.643: Se0/0 PPP: Phase is TERMINATING
*Mar  1 00:11:48.643: Se0/0 LCP: State is Closed
*Mar  1 00:11:48.643: Se0/0 PPP: Phase is DOWN
*Mar  1 00:11:49.599: %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0, changed state to down
R1(config-if)#
R1(config-if)#no shutdown
R1(config-if)#
*Mar  1 00:11:54.835: Se0/0 PPP: Outbound cdp packet dropped
*Mar  1 00:11:56.807: %LINK-3-UPDOWN: Interface Serial0/0, changed state to up
*Mar  1 00:11:56.811: Se0/0 PPP: Using default call direction
*Mar  1 00:11:56.811: Se0/0 PPP: Treating connection as a dedicated line
*Mar  1 00:11:56.815: Se0/0 PPP: Session handle[1F000002] Session id[2]
*Mar  1 00:11:56.815: Se0/0 PPP: Phase is ESTABLISHING, Active Open
*Mar  1 00:11:56.819: Se0/0 LCP: O CONFREQ [Closed] id 8 len 10
*Mar  1 00:11:56.819: Se0/0 LCP:    MagicNumber 0x001770AB (0x0506001770AB)
*Mar  1 00:11:56.931: Se0/0 LCP: I CONFREQ [REQsent] id 2 len 10
*Mar  1 00:11:56.935: Se0/0 LCP:    MagicNumber 0x00174DE5 (0x050600174DE5)
*Mar  1 00:11:56.935: Se0/0 LCP: O CONFACK [REQsent] id 2 len 10
*Mar  1 00:11:56.939: Se0/0 LCP:    MagicNumber 0x00174DE5 (0x050600174DE5)
*Mar  1 00:11:56.939: Se0/0 LCP: I CONFACK [ACKsent] id 8 len 10
*Mar  1 00:11:56.943: Se0/0 LCP:    MagicNumber 0x001770AB (0x0506001770AB)
*Mar  1 00:11:56.943: Se0/0 LCP: State is Open
*Mar  1 00:11:56.947: Se0/0 PPP: Phase is FORWARDING, Attempting Forward
*Mar  1 00:11:56.947: Se0/0 PPP: Phase is ESTABLISHING, Finish LCP
*Mar  1 00:11:56.951: Se0/0 PPP: Phase is UP
*Mar  1 00:11:56.955: Se0/0 IPCP: O CONFREQ [Closed] id 1 len 10
*Mar  1 00:11:56.955: Se0/0 IPCP:    Address 0.0.0.0 (0x030600000000)
*Mar  1 00:11:56.959: Se0/0 CDPCP: O CONFREQ [Closed] id 1 len 4
*Mar  1 00:11:56.963: Se0/0 PPP: Process pending ncp packets
*Mar  1 00:11:57.031: Se0/0 IPCP: I CONFREQ [REQsent] id 1 len 10
*Mar  1 00:11:57.031: Se0/0 IPCP:    Address 192.168.12.2 (0x0306C0A80C02)
*Mar  1 00:11:57.035: Se0/0 IPCP: O CONFACK [REQsent] id 1 len 10
*Mar  1 00:11:57.039: Se0/0 IPCP:    Address 192.168.12.2 (0x0306C0A80C02)
*Mar  1 00:11:57.039: Se0/0 IPCP: I CONFNAK [ACKsent] id 1 len 10
*Mar  1 00:11:57.043: Se0/0 IPCP:    Address 11.11.11.11 (0x03060B0B0B0B)
*Mar  1 00:11:57.043: Se0/0 IPCP: O CONFREQ [ACKsent] id 2 len 10
*Mar  1 00:11:57.047: Se0/0 IPCP:    Address 11.11.11.11 (0x03060B0B0B0B)
*Mar  1 00:11:57.051: Se0/0 CDPCP: I CONFREQ [REQsent] id 1 len 4
*Mar  1 00:11:57.051: Se0/0 CDPCP: O CONFACK [REQsent] id 1 len 4
*Mar  1 00:11:57.055: Se0/0 CDPCP: I CONFACK [ACKsent] id 1 len 4
*Mar  1 00:11:57.055: Se0/0 CDPCP: State is Open
*Mar  1 00:11:57.091: Se0/0 IPCP: I CONFACK [ACKsent] id 2 len 10
*Mar  1 00:11:57.095: Se0/0 IPCP:    Address 11.11.11.11 (0x03060B0B0B0B)
*Mar  1 00:11:57.095: Se0/0 IPCP: State is Open
*Mar  1 00:11:57.099: Se0/0 IPCP: Install negotiated IP interface address 11.11.11.11 <- IPアドレスが割り当てられた事が分かります
*Mar  1 00:11:57.107: Se0/0 IPCP: Install route to 192.168.12.2
*Mar  1 00:11:57.115: Se0/0 IPCP: Add link info for cef entry 192.168.12.2
*Mar  1 00:11:57.951: %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0, changed state to up
R1(config-if)#

R1 s0/0にIPアドレスが割り当てられた事を確認します。
R1#show ip interface brief
Interface                  IP-Address      OK? Method Status                Protocol
Serial0/0                  11.11.11.11     YES IPCP   up                    up
Serial0/1                  unassigned      YES unset  administratively down down
Serial0/2                  unassigned      YES unset  administratively down down
Serial0/3                  unassigned      YES unset  administratively down down
R1#



6. [検証] PPP プールによるアドレス割当

6.1. 設定投入

プールを用いてIPアドレスを割り当てる事も可能です。
R2(config)#ip local pool POOL_PPP 11.0.0.0 11.0.0.254
R2(config)#
R2(config)#interface Serial0/0
R2(config-if)#peer default ip address pool POOL_PPP

6.2. 設定確認

R1 s0/0をshut no shutします。
R1(config)#interface Serial 0/0
R1(config-if)#shutdown
R1(config-if)#
*Mar  1 00:17:36.279: %LINK-5-CHANGED: Interface Serial0/0, changed state to administratively down
*Mar  1 00:17:36.283: Se0/0 PPP: Sending Acct Event[Down] id[4]
*Mar  1 00:17:36.287: Se0/0 CDPCP: State is Closed
*Mar  1 00:17:36.287: Se0/0 IPCP: State is Closed
*Mar  1 00:17:36.287: Se0/0 IPCP: Remove link info for cef entry 192.168.12.2
*Mar  1 00:17:36.291: Se0/0 PPP: Phase is TERMINATING
*Mar  1 00:17:36.291: Se0/0 LCP: State is Closed
*Mar  1 00:17:36.295: Se0/0 PPP: Phase is DOWN
*Mar  1 00:17:36.303: Se0/0 IPCP: Remove route to 192.168.12.2
*Mar  1 00:17:37.279: %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0, changed state to down
R1(config-if)#no shutdown
R1(config-if)#
*Mar  1 00:17:41.775: Se0/0 PPP: Outbound cdp packet dropped
*Mar  1 00:17:43.755: %LINK-3-UPDOWN: Interface Serial0/0, changed state to up
*Mar  1 00:17:43.759: Se0/0 PPP: Using default call direction
*Mar  1 00:17:43.759: Se0/0 PPP: Treating connection as a dedicated line
*Mar  1 00:17:43.763: Se0/0 PPP: Session handle[E8000003] Session id[3]
*Mar  1 00:17:43.763: Se0/0 PPP: Phase is ESTABLISHING, Active Open
*Mar  1 00:17:43.767: Se0/0 LCP: O CONFREQ [Closed] id 9 len 10
*Mar  1 00:17:43.767: Se0/0 LCP:    MagicNumber 0x001CBBF0 (0x0506001CBBF0)
*Mar  1 00:17:43.887: Se0/0 LCP: I CONFREQ [REQsent] id 3 len 10
*Mar  1 00:17:43.891: Se0/0 LCP:    MagicNumber 0x001C9916 (0x0506001C9916)
*Mar  1 00:17:43.891: Se0/0 LCP: O CONFACK [REQsent] id 3 len 10
*Mar  1 00:17:43.895: Se0/0 LCP:    MagicNumber 0x001C9916 (0x0506001C9916)
*Mar  1 00:17:43.895: Se0/0 LCP: I CONFACK [ACKsent] id 9 len 10
*Mar  1 00:17:43.899: Se0/0 LCP:    MagicNumber 0x001CBBF0 (0x0506001CBBF0)
*Mar  1 00:17:43.899: Se0/0 LCP: State is Open
*Mar  1 00:17:43.903: Se0/0 PPP: Phase is FORWARDING, Attempting Forward
*Mar  1 00:17:43.903: Se0/0 PPP: Phase is ESTABLISHING, Finish LCP
*Mar  1 00:17:43.907: Se0/0 PPP: Phase is UP
*Mar  1 00:17:43.911: Se0/0 IPCP: O CONFREQ [Closed] id 1 len 10
*Mar  1 00:17:43.911: Se0/0 IPCP:    Address 0.0.0.0 (0x030600000000)
*Mar  1 00:17:43.915: Se0/0 CDPCP: O CONFREQ [Closed] id 1 len 4
*Mar  1 00:17:43.915: Se0/0 PPP: Process pending ncp packets
*Mar  1 00:17:43.947: Se0/0 IPCP: I CONFREQ [REQsent] id 1 len 10
*Mar  1 00:17:43.951: Se0/0 IPCP:    Address 192.168.12.2 (0x0306C0A80C02)
*Mar  1 00:17:43.951: Se0/0 IPCP: O CONFACK [REQsent] id 1 len 10
*Mar  1 00:17:43.955: Se0/0 IPCP:    Address 192.168.12.2 (0x0306C0A80C02)
*Mar  1 00:17:43.959: Se0/0 IPCP: I CONFNAK [ACKsent] id 1 len 10
*Mar  1 00:17:43.959: Se0/0 IPCP:    Address 11.0.0.0 (0x03060B000000)
*Mar  1 00:17:43.963: Se0/0 IPCP: O CONFREQ [ACKsent] id 2 len 10
*Mar  1 00:17:43.963: Se0/0 IPCP:    Address 11.0.0.0 (0x03060B000000)
*Mar  1 00:17:43.967: Se0/0 CDPCP: I CONFREQ [REQsent] id 1 len 4
*Mar  1 00:17:43.971: Se0/0 CDPCP: O CONFACK [REQsent] id 1 len 4
*Mar  1 00:17:43.971: Se0/0 CDPCP: I CONFACK [ACKsent] id 1 len 4
*Mar  1 00:17:43.975: Se0/0 CDPCP: State is Open
*Mar  1 00:17:44.031: Se0/0 IPCP: I CONFACK [ACKsent] id 2 len 10
*Mar  1 00:17:44.031: Se0/0 IPCP:    Address 11.0.0.0 (0x03060B000000)
*Mar  1 00:17:44.035: Se0/0 IPCP: State is Open
*Mar  1 00:17:44.035: Se0/0 IPCP: Install negotiated IP interface address 11.0.0.0
*Mar  1 00:17:44.051: Se0/0 IPCP: Install route to 192.168.12.2
*Mar  1 00:17:44.059: Se0/0 IPCP: Add link info for cef entry 192.168.12.2
*Mar  1 00:17:44.907: %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0, changed state to up
R1(config-if)#

R1 s0/0にIPアドレスが割り当てられた事を確認します。
R1#show ip interface brief
Interface                  IP-Address      OK? Method Status                Protocol
Serial0/0                  11.0.0.0        YES IPCP   up                    up
Serial0/1                  unassigned      YES unset  administratively down down
Serial0/2                  unassigned      YES unset  administratively down down
Serial0/3                  unassigned      YES unset  administratively down down
R1#
「HDLC, PPP」をウィキ内検索
添付ファイル
DynagenでCCIEを目指す
人気記事ランキング
  1. トップページ/動作検証 ネットワーク系/20100621 BGP タイマーの調節
  2. トップページ/動作検証 ネットワーク系/20100822 TFTP, FTP, SCP
  3. トップページ/動作検証 ネットワーク系/20100626 Anycast RP
  4. トップページ/手順書 ネットワーク系/VLC media player (Windows版) 操作手順
  5. トップページ/動作検証 ネットワーク系/20010517 route-mapによる再配送の制御
  6. トップページ/動作検証 ネットワーク系/20100428 OSPFv3 基本設定
  7. トップページ/手順書 サーバ系/TACACS+ インストール手順
  8. トップページ/手順書 ネットワーク系/VLC media player (Linux版) インストール手順
  9. トップページ/動作検証 ネットワーク系/INE Workbook Volume I RIP
  10. トップページ/動作検証 ネットワーク系/20100619 BGP プレフィックス数の制限
もっと見る
最近更新されたページ
もっと見る
人気記事ランキング
  1. トップページ/動作検証 ネットワーク系/20100621 BGP タイマーの調節
  2. トップページ/動作検証 ネットワーク系/20100822 TFTP, FTP, SCP
  3. トップページ/動作検証 ネットワーク系/20100626 Anycast RP
  4. トップページ/手順書 ネットワーク系/VLC media player (Windows版) 操作手順
  5. トップページ/動作検証 ネットワーク系/20010517 route-mapによる再配送の制御
  6. トップページ/動作検証 ネットワーク系/20100428 OSPFv3 基本設定
  7. トップページ/手順書 サーバ系/TACACS+ インストール手順
  8. トップページ/手順書 ネットワーク系/VLC media player (Linux版) インストール手順
  9. トップページ/動作検証 ネットワーク系/INE Workbook Volume I RIP
  10. トップページ/動作検証 ネットワーク系/20100619 BGP プレフィックス数の制限
もっと見る
最近更新されたページ
もっと見る
ウィキ募集バナー
