目的

• Dynamipsでスイッチの基本的な設定方法を確認します。

構成

• 設定概要
  • SWを介して3台のルータを接続します。

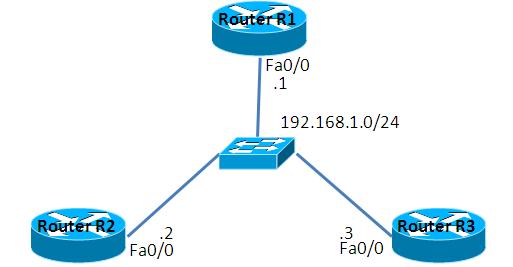

• 構成図

• netファイル

ghostios = True
sparsemem = True
model = 3660

[localhost]

    [[3660]]
        image = C:\Program Files\Dynamips\images\C3660-I-Mz_20121-5_20T8.bin
        ram = 128

    [[ROUTER R1]]
    	f0/0 = LAN 1

    [[ROUTER R2]]
    	f0/0 = LAN 1

    [[ROUTER R3]]
    	f0/0 = LAN 1

• R1

Current configuration : 515 bytes
!
version 12.1
no service single-slot-reload-enable
service timestamps debug uptime
service timestamps log uptime
no service password-encryption
!
hostname R1
!
logging rate-limit console 10 except errors
!
ip subnet-zero
!
!
no ip finger
!
!
!
!
interface FastEthernet0/0
 ip address 192.168.1.1 255.255.255.0
 duplex auto
 speed auto
!
interface FastEthernet0/1
 no ip address
 shutdown
 duplex auto
 speed auto
!
ip classless
no ip http server
!
!
line con 0
 transport input none
line aux 0
line vty 0 4
!
end

• R2

Current configuration : 515 bytes
!
version 12.1
no service single-slot-reload-enable
service timestamps debug uptime
service timestamps log uptime
no service password-encryption
!
hostname R2
!
logging rate-limit console 10 except errors
!
ip subnet-zero
!
!
no ip finger
!
!
!
!
interface FastEthernet0/0
 ip address 192.168.1.2 255.255.255.0
 duplex auto
 speed auto
!
interface FastEthernet0/1
 no ip address
 shutdown
 duplex auto
 speed auto
!
ip classless
no ip http server
!
!
line con 0
 transport input none
line aux 0
line vty 0 4
!
end

• R3

Current configuration : 515 bytes
!
version 12.1
no service single-slot-reload-enable
service timestamps debug uptime
service timestamps log uptime
no service password-encryption
!
hostname R3
!
logging rate-limit console 10 except errors
!
ip subnet-zero
!
!
no ip finger
!
!
!
!
interface FastEthernet0/0
 ip address 192.168.1.3 255.255.255.0
 duplex auto
 speed auto
!
interface FastEthernet0/1
 no ip address
 shutdown
 duplex auto
 speed auto
!
ip classless
no ip http server
!
!
line con 0
 transport input none
line aux 0
line vty 0 4
!
end

検証1 疎通確認

• ping応答の確認

R1#ping 192.168.1.2

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.1.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 32/46/52 ms
R1#ping 192.168.1.3

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.1.3, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 16/41/68 ms

• ARPの確認

R1#show arp
Protocol  Address          Age (min)  Hardware Addr   Type   Interface
Internet  192.168.1.1             -   cc00.0e14.0000  ARPA   FastEthernet0/0
Internet  192.168.1.3             0   cc02.0e14.0000  ARPA   FastEthernet0/0
Internet  192.168.1.2             5   cc01.0e14.0000  ARPA   FastEthernet0/0

• CDPによる確認

CDPの表示を見ると、Dynamipsで定義したスイッチは表示されないようです。

R1#show cdp neighbor
Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge
                  S - Switch, H - Host, I - IGMP, r - Repeater

Device ID        Local Intrfce     Holdtme    Capability  Platform  Port ID
R2               Fas 0/0            132          R        c3660     Fas 0/0
R3               Fas 0/0            169          R        c3660     Fas 0/0
