1. 目的

• shapingの設定について確認します。

2. 構成

2.1. 設定概要

• Host OS側でApacheを起動させます。
• Guest OS, R1間は10Mで接続する事で、わざと輻輳を発生させます。
• R1, R2はEIGRPでルーティングします。

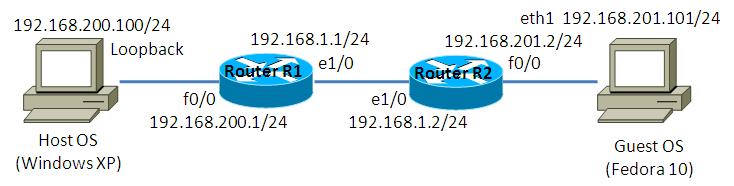

2.2. 構成図

2.3. netファイル

model = 3620

[localhost]

    [[3620]]
        image = C:\Program Files\Dynamips\images\c3620-j1s3-mz.123-18.bin
        ram = 128

    [[ROUTER R1]]
 		f0/0 = NIO_gen_eth:\Device\NPF_{8B89D910-5ED3-4A43-9DE9-6A272A3D7592}
        e1/0 = R2 e1/0

    [[ROUTER R2]]
		f0/0 = NIO_gen_eth:\Device\NPF_{5933302A-7AAA-475C-A8FE-A6B82B0C0F98}

2.4. 初期設定

• R1

!
version 12.3
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R1
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
ip subnet-zero
!
!
!
ip cef
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
interface FastEthernet0/0
 ip address 192.168.200.1 255.255.255.0
 duplex auto
 speed auto
!
interface Ethernet1/0
 ip address 192.168.1.1 255.255.255.0
 half-duplex
!
interface Ethernet1/1
 no ip address
 shutdown
 half-duplex
!
interface Ethernet1/2
 no ip address
 shutdown
 half-duplex
!
interface Ethernet1/3
 no ip address
 shutdown
 half-duplex
!
router eigrp 1
 passive-interface default
 no passive-interface Ethernet1/0
 network 192.168.1.1 0.0.0.0
 network 192.168.200.1 0.0.0.0
 auto-summary
!
ip http server
ip classless
!
!
!
!
!
!
!
!
line con 0
line aux 0
line vty 0 4
!
!
end

• R2

!
version 12.3
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R2
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
ip subnet-zero
!
!
!
ip cef
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
interface FastEthernet0/0
 ip address 192.168.201.2 255.255.255.0
 duplex auto
 speed auto
!
interface Ethernet1/0
 ip address 192.168.1.2 255.255.255.0
 half-duplex
!
interface Ethernet1/1
 no ip address
 shutdown
 half-duplex
!
interface Ethernet1/2
 no ip address
 shutdown
 half-duplex
!
interface Ethernet1/3
 no ip address
 shutdown
 half-duplex
!
router eigrp 1
 passive-interface default
 no passive-interface Ethernet1/0
 network 192.168.1.2 0.0.0.0
 network 192.168.201.2 0.0.0.0
 auto-summary
!
ip http server
ip classless
!
!
!
!
!
!
!
!
line con 0
line aux 0
line vty 0 4
!
!
end

2.5. Apache 設定

ホストOSにApacheをインストールし、ポートベースのバーチャルホストを定義します。構築方法はトップページ/手順書 サーバ系/Apache HTTP Server バーチャルホストの設定を参考にして下さい。
この検証例で実際に使用したhttpd.confの要所となる部分を以下に記載します。

Listen 80
Listen 10881
Listen 10882

NameVirtualHost *:80
NameVirtualHost *:10881
NameVirtualHost *:10882

<VirtualHost *:80>
    DocumentRoot "C:/Program Files/Apache Software Foundation/Apache2.2/htdocs"
</VirtualHost>

<VirtualHost *:10881>
    DocumentRoot "C:/Program Files/Apache Software Foundation/Apache2.2/htdocs10881"
</VirtualHost>

<VirtualHost *:10882>
    DocumentRoot "C:/Program Files/Apache Software Foundation/Apache2.2/htdocs10882"
</VirtualHost>

2.6. サーバ側 ルーティング設定

• Host OS

route add 192.168.201.0 mask 255.255.255.0 192.168.200.1

• Guest OS

route add -net 192.168.200.0/24 gw 192.168.201.2

3. [検証] 基本設定

3.1. 設定投入

以下の通りのshapingを実装します。

No	条件	bps
1	SSH	8000
2	URLがlarge.htmlを含む	8000
3	tcp80 or 10881 or 10882	12000

投入したconfigは以下の通りです。

R1(config)#ip access-list extended ACL_SSH
R1(config-ext-nacl)#permit tcp any any eq 22
R1(config-ext-nacl)#exit
R1(config)#
R1(config)#ip access-list extended ACL_80
R1(config-ext-nacl)#permit tcp any eq 80 any
R1(config-ext-nacl)#exit
R1(config)#
R1(config)#ip access-list extended ACL_10881
R1(config-ext-nacl)#permit tcp any eq 10881 any
R1(config-ext-nacl)#exit
R1(config)#
R1(config)#ip access-list extended ACL_10882
R1(config-ext-nacl)#permit tcp any eq 10882 any
R1(config-ext-nacl)#exit
R1(config)#
R1(config)#class-map CLASS_SSH
R1(config-cmap)#match access-group name ACL_80
R1(config-cmap)#exit
R1(config)#class-map CLASS_LARGE
R1(config-cmap)#match protocol http url "*large.html*"
R1(config-cmap)#exit
R1(config)#
R1(config)#class-map match-any CLASS_HTTP
R1(config-cmap)#match access-group name ACL_80
R1(config-cmap)#match access-group name ACL_10881
R1(config-cmap)#match access-group name ACL_10882
R1(config-cmap)#exit
R1(config)#
R1(config)#policy-map POLICY_E10_OUT
R1(config-pmap)#class CLASS_SSH
R1(config-pmap-c)#shape average 8000
R1(config-pmap-c)#exit
R1(config-pmap)#class CLASS_LARGE
R1(config-pmap-c)#shape average 8000
R1(config-pmap-c)#exit
R1(config-pmap)#class CLASS_HTTP
R1(config-pmap-c)#shape average 12000
R1(config-pmap-c)#exit
R1(config-pmap)#exit
R1(config)#
R1(config)#interface Ethernet 1/0
R1(config-if)#service-policy out POLICY_E10_OUT

showコマンドにより設定を確認します。

R1#show policy-map interface Ethernet 1/0
 Ethernet1/0

  Service-policy output: POLICY_E10_OUT

    Class-map: CLASS_SSH (match-all)
      0 packets, 0 bytes
      5 minute offered rate 0 bps, drop rate 0 bps
      Match: access-group name ACL_80
      Traffic Shaping
           Target/Average   Byte   Sustain   Excess    Interval  Increment
             Rate           Limit  bits/int  bits/int  (ms)      (bytes)
             8000/8000      2000   8000      8000      1000      1000

        Adapt  Queue     Packets   Bytes     Packets   Bytes     Shaping
        Active Depth                         Delayed   Delayed   Active
        -      0         0         0         0         0         no

    Class-map: CLASS_LARGE (match-all)
      0 packets, 0 bytes
      5 minute offered rate 0 bps, drop rate 0 bps
      Match: protocol http url "*large.html*"
      Traffic Shaping
           Target/Average   Byte   Sustain   Excess    Interval  Increment
             Rate           Limit  bits/int  bits/int  (ms)      (bytes)
             8000/8000      2000   8000      8000      1000      1000

        Adapt  Queue     Packets   Bytes     Packets   Bytes     Shaping
        Active Depth                         Delayed   Delayed   Active
        -      0         0         0         0         0         no

    Class-map: CLASS_HTTP (match-any)
      0 packets, 0 bytes
      5 minute offered rate 0 bps, drop rate 0 bps
      Match: access-group name ACL_80
        0 packets, 0 bytes
        5 minute rate 0 bps
      Match: access-group name ACL_10881
        0 packets, 0 bytes
        5 minute rate 0 bps
      Match: access-group name ACL_10882
        0 packets, 0 bytes
        5 minute rate 0 bps
      Traffic Shaping
           Target/Average   Byte   Sustain   Excess    Interval  Increment
             Rate           Limit  bits/int  bits/int  (ms)      (bytes)
            12000/12000     1998   7992      7992      666       999

        Adapt  Queue     Packets   Bytes     Packets   Bytes     Shaping
        Active Depth                         Delayed   Delayed   Active
        -      0         0         0         0         0         no

    Class-map: class-default (match-any)
      20 packets, 1679 bytes
      5 minute offered rate 0 bps, drop rate 0 bps
      Match: any
R1#

3.2. URLによるshaping

shaping未実装の時に比べて充分な受信速度が出ていない事からshapingが効いている事が分かります。（実際に設定した送信速度とwgetコマンドで確認できる速度に大きな差があります。送信速度に差があるのが、実機ではなくエミュレータを使用しているせいかもしれませんので、不問とします）

[root@localhost ~]# wget -O /dev/null http://192.168.200.100/large.html
--2010-12-11 20:03:40--  http://192.168.200.100/large.html
Connecting to 192.168.200.100:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 23016000 (22M) [text/html]
Saving to: `/dev/null'

 0% [                                                 ] 63,753       857B/s  eta 7h 5m

下記showコマンドでカウンタを確認します。CLASS_LARGEのカウンタが大きく増大するはずですが、カウンタはひとつも増加していません。showコマンドの表示上の不具合の可能性がありますので、深くは追求しない事にします。

R1#show policy-map interface Ethernet 1/0
 Ethernet1/0

  Service-policy output: POLICY_E10_OUT

    Class-map: CLASS_SSH (match-all)
      185 packets, 111653 bytes
      5 minute offered rate 7000 bps, drop rate 0 bps
      Match: access-group name ACL_80
      Traffic Shaping
           Target/Average   Byte   Sustain   Excess    Interval  Increment
             Rate           Limit  bits/int  bits/int  (ms)      (bytes)
             8000/8000      2000   8000      8000      1000      1000

        Adapt  Queue     Packets   Bytes     Packets   Bytes     Shaping
        Active Depth                         Delayed   Delayed   Active
        -      12        173       104765    157       91389     yes

    Class-map: CLASS_LARGE (match-all)
      0 packets, 0 bytes                            <- 本来ならばこのカウンタが増大するはずです。
      5 minute offered rate 0 bps, drop rate 0 bps
      Match: protocol http url "*large.html*"
      Traffic Shaping
           Target/Average   Byte   Sustain   Excess    Interval  Increment
             Rate           Limit  bits/int  bits/int  (ms)      (bytes)
             8000/8000      2000   8000      8000      1000      1000

        Adapt  Queue     Packets   Bytes     Packets   Bytes     Shaping
        Active Depth                         Delayed   Delayed   Active
        -      0         0         0         0         0         no

    Class-map: CLASS_HTTP (match-any)
      0 packets, 0 bytes
      5 minute offered rate 0 bps, drop rate 0 bps
      Match: access-group name ACL_80
        0 packets, 0 bytes
        5 minute rate 0 bps
      Match: access-group name ACL_10881
        0 packets, 0 bytes
        5 minute rate 0 bps
      Match: access-group name ACL_10882
        0 packets, 0 bytes
        5 minute rate 0 bps
      Traffic Shaping
           Target/Average   Byte   Sustain   Excess    Interval  Increment
             Rate           Limit  bits/int  bits/int  (ms)      (bytes)
            12000/12000     1998   7992      7992      666       999

        Adapt  Queue     Packets   Bytes     Packets   Bytes     Shaping
        Active Depth                         Delayed   Delayed   Active
        -      0         0         0         0         0         no

    Class-map: class-default (match-any)
      400 packets, 35461 bytes
      5 minute offered rate 0 bps, drop rate 0 bps
      Match: any
R1#

3.3. portによるshaping

tcp10881宛ての以下wgetを実施します。
「URLによるshaping」の時に比べて受信速度が大きい事が読み取れます。これは「match protocol http url "*large.html*"」に合致しない事を意味します。この結果から考えると、URLによるマッチが使えるのはtcp80番の場合のみで、ポート番号を変更するとURLによるマッチは使えない事が推測できます。

[root@localhost ~]# wget -O /dev/null http://192.168.200.100:10881/large.html
--2010-12-11 20:06:50--  http://192.168.200.100:10881/large.html
Connecting to 192.168.200.100:10881... connected.
HTTP request sent, awaiting response... 200 OK
Length: 23016000 (22M) [text/html]
Saving to: `/dev/null'

 0% [                                                 ] 186,940     1.27K/s  eta 4h 44m

showコマンドでカウンタを確認します。CLASS_HTTPのみが増加している事から、tcp10881の場合はURLによるマッチングは働いていない事が分かります。

R1#show policy-map interface Ethernet 1/0
 Ethernet1/0

  Service-policy output: POLICY_E10_OUT

    Class-map: CLASS_SSH (match-all)
      401 packets, 236501 bytes
      5 minute offered rate 7000 bps, drop rate 0 bps
      Match: access-group name ACL_80
      Traffic Shaping
           Target/Average   Byte   Sustain   Excess    Interval  Increment
             Rate           Limit  bits/int  bits/int  (ms)      (bytes)
             8000/8000      2000   8000      8000      1000      1000

        Adapt  Queue     Packets   Bytes     Packets   Bytes     Shaping
        Active Depth                         Delayed   Delayed   Active
        -      4         397       234237    381       220861    yes

    Class-map: CLASS_LARGE (match-all)
      0 packets, 0 bytes
      5 minute offered rate 0 bps, drop rate 0 bps
      Match: protocol http url "*large.html*"
      Traffic Shaping
           Target/Average   Byte   Sustain   Excess    Interval  Increment
             Rate           Limit  bits/int  bits/int  (ms)      (bytes)
             8000/8000      2000   8000      8000      1000      1000

        Adapt  Queue     Packets   Bytes     Packets   Bytes     Shaping
        Active Depth                         Delayed   Delayed   Active
        -      0         0         0         0         0         no

    Class-map: CLASS_HTTP (match-any)
      104 packets, 65040 bytes                        <- カウンタの増加を確認します。
      5 minute offered rate 6000 bps, drop rate 0 bps
      Match: access-group name ACL_80
        0 packets, 0 bytes
        5 minute rate 0 bps
      Match: access-group name ACL_10881
        104 packets, 65040 bytes
        5 minute rate 6000 bps
      Match: access-group name ACL_10882
        0 packets, 0 bytes
        5 minute rate 0 bps
      Traffic Shaping
           Target/Average   Byte   Sustain   Excess    Interval  Increment
             Rate           Limit  bits/int  bits/int  (ms)      (bytes)
            12000/12000     1998   7992      7992      666       999

        Adapt  Queue     Packets   Bytes     Packets   Bytes     Shaping
        Active Depth                         Delayed   Delayed   Active
        -      12        108       67400     91        53958     yes

    Class-map: class-default (match-any)
      725 packets, 58675 bytes
      5 minute offered rate 1000 bps, drop rate 0 bps
      Match: any
R1#

4. [検証] ピークレートの設定

4.1. 設定投入

shape averageではなく、shape peakと指定すると、tc(Committed time interval)あたりに、bc + beのパケットを送信するようになります。この設定によりCIR以上のパケットを送信できるようになりますが、輻輳時はパケットがドロップされる可能性もあります。
設定例は以下の通りです。

R1(config)#policy-map POLICY_E10_OUT
R1(config-pmap)#no class CLASS_LARGE
R1(config-pmap)#class CLASS_HTTP
R1(config-pmap-c)#no shape average
R1(config-pmap-c)#shape peak 12000

R1#show policy-map interface Ethernet 1/0
 Ethernet1/0

  Service-policy output: POLICY_E10_OUT

    Class-map: CLASS_SSH (match-all)
      1594 packets, 930778 bytes
      5 minute offered rate 21000 bps, drop rate 0 bps
      Match: access-group name ACL_80

    Class-map: CLASS_HTTP (match-any)
      626 packets, 366039 bytes
      5 minute offered rate 0 bps, drop rate 0 bps
      Match: access-group name ACL_80
        0 packets, 0 bytes
        5 minute rate 0 bps
      Match: access-group name ACL_10881
        626 packets, 366039 bytes
        5 minute rate 0 bps
      Match: access-group name ACL_10882
        0 packets, 0 bytes
        5 minute rate 0 bps
      Traffic Shaping
           Target/Average   Byte   Sustain   Excess    Interval  Increment
             Rate           Limit  bits/int  bits/int  (ms)      (bytes)
            24000/12000     1998   7992      7992      666       1998

        Adapt  Queue     Packets   Bytes     Packets   Bytes     Shaping
        Active Depth                         Delayed   Delayed   Active
        -      0         0         0         0         0         no

    Class-map: class-default (match-any)
      1422 packets, 100676 bytes
      5 minute offered rate 1000 bps, drop rate 0 bps
      Match: any
R1#

4.2 wgetによる確認

Guest OS上で下記wgetコマンドを実行します。受信速度が先ほどの検証よりも速い事を確認します。

[root@localhost ~]# wget -O /dev/null http://192.168.200.100/large.html
--2010-12-11 20:12:36--  http://192.168.200.100/large.html
Connecting to 192.168.200.100:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 23016000 (22M) [text/html]
Saving to: `/dev/null'

 5% [=>                                               ] 1,237,516   19.7K/s  eta 20m 38s

5. [検証] 詳細なチューニング

5.1. 設定投入

bc, be, tc等のパラメータを明示的に指定する事もできます。
設定例は以下の通りですが、へプルに表示された通り非推奨の設定です。

R1(config-pmap)#class CLASS_HTTP
R1(config-pmap-c)#shape average 12000 ?
  <256-154400000>  bits per interval, sustained. Needs to be multiple of 128.
                   Recommend not to configure it, the algorithm will find out
                   the best value
  <cr>

R1(config-pmap-c)#shape average 12000 2048 1024

5.2. 設定確認

showコマンドで設定を確認します。

R1#show policy-map interface Ethernet 1/0
 Ethernet1/0

  Service-policy output: POLICY_E10_OUT

    Class-map: CLASS_SSH (match-all)
      11827 packets, 6845368 bytes
      5 minute offered rate 125000 bps, drop rate 0 bps
      Match: access-group name ACL_80

    Class-map: CLASS_HTTP (match-any)
      770 packets, 454506 bytes
      5 minute offered rate 9000 bps, drop rate 0 bps
      Match: access-group name ACL_80
        0 packets, 0 bytes
        5 minute rate 0 bps
      Match: access-group name ACL_10881
        770 packets, 454506 bytes
        5 minute rate 9000 bps
      Match: access-group name ACL_10882
        0 packets, 0 bytes
        5 minute rate 0 bps
      Traffic Shaping
           Target/Average   Byte   Sustain   Excess    Interval  Increment
             Rate           Limit  bits/int  bits/int  (ms)      (bytes)
            12000/12000     384    2048      1024      170       256

        Adapt  Queue     Packets   Bytes     Packets   Bytes     Shaping
        Active Depth                         Delayed   Delayed   Active
        -      14        146       89647     133       79901     yes

    Class-map: class-default (match-any)
      2301 packets, 151882 bytes
      5 minute offered rate 1000 bps, drop rate 0 bps
      Match: any
R1#
